Miniature High-Frequency CT ACST Series for Energy Metering and Power Monitoring

Negotiation
MOQ
Negotiation
Price
Miniature High-Frequency CT ACST Series for Energy Metering and Power Monitoring
Features Gallery Product Description Chat Now
Features
Specifications
Turns: 1:50, 1:100, 1:200 And 1:300, 1:50CT, 1:100CT, 1:200CT, 1:300CT
Frequency Range: 1kHz To 1MHz
Hi-Pot: 4000V,1mA,60S
Inner Hole: 4.5mm
Temperature Range: -25℃ To +85℃
Storage Temperature: -40℃ To +105℃
Highlight:

Miniature High-Frequency CT for energy metering

,

ACST Series current sense transformer

,

High-Frequency CT for power monitoring
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: ACST Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Product Description

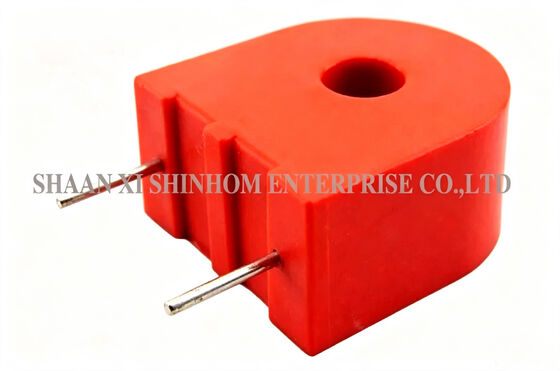

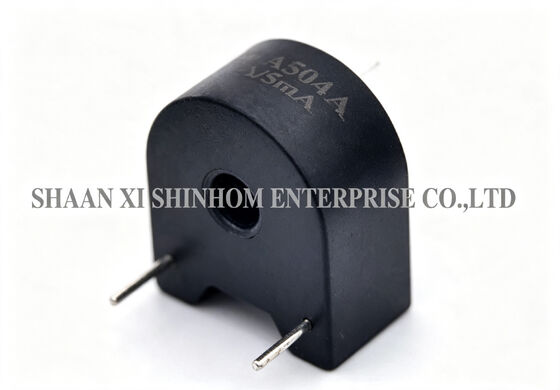

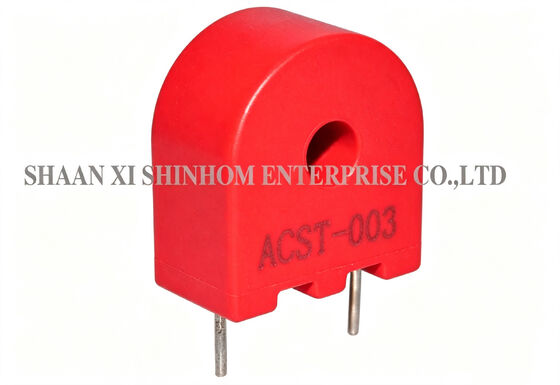

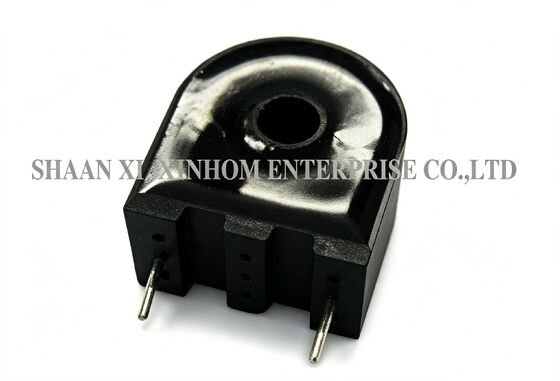

ACST Series PCB Mount Miniature small DC Immune Current Transformer, CT,Current transformer Manufacturer

The ACST series miniature PCB-mount high-frequency current transformer is designed for high-frequency current sensing, energy metering, and power monitoring applications. Rated current is up to 50A.Four standard turns ratio options are available: 1:50, 1:100, 1:200, and 1:300 (center-tap CT versions also available). Operating frequency range is 1kHz to 1MHz.The product uses a toroidal core and low-profile design. It is mounted directly on the PCB. The housing is made of PBT 94V0 flame-retardant material with epoxy filling, ensuring stable and reliable structure.The DC immune feature ensures accuracy in current sensing applications that contain DC components.Insulation resistance: ≥100MΩ (500V DC) . Withstand voltage test: 4000V/1mA/60 seconds.It is widely used in AC/DC and DC-DC converters, energy meters, power transmitters, high-frequency current control circuits, and pulse current testing.

FEATURES

  • Current range: up to 50A maximum
  • Turns ratio: 1:50, 1:100, 1:200 and 1:300, 1:50CT, 1:100CT, 1:200CT, 1:300CT
  • Working frequency range: 1kHz to 1MHz
  • Insulation resistance: 500V DC >100MΩ
  • Hi-Pot : 4000V 1mA 60S
  • Temperature range: -25℃ to +85℃
  • Storage Temperature: -40℃ to +105℃
  • Resistance to soldering heat:260℃ for 10 seconds
  • Low profile,directly to PCB.
  • PBT 94V0 Case burn-resistant epoxy resin,stable.
  • Toroid high frequency current transformer
  • Applications: high-frequency current control circuit and pulse current test, AC/DC, DC-DC converters
  • Marking: Part number and date code

APPLICATIONS

  • AC energy Meter Power transducer RTU
  • Protection current transformer
  • AC kilowatt hour meter
  • Electronical monitoring system
 Miniature High-Frequency CT ACST Series for Energy Metering and Power Monitoring Miniature High-Frequency CT ACST Series for Energy Metering and Power Monitoring

Note: Product specifications can be customized.

FAQ

Q: What turns ratio options are available for the ACST series? What is the difference between models with the CT suffix?

A: The ACST series offers four standard turns ratio options: 1:50, 1:100, 1:200, and 1:300. Models with the CT suffix (e.g., 1:50CT) indicate that the secondary winding has a center tap. This is suitable for push-pull drives or differential signal acquisition circuits that require a center tap. Models without the CT suffix are standard two-wire secondary outputs.

Q: What is the significance of the DC immune feature?

A: The DC immune feature means the current transformer maintains accuracy when measuring AC current with DC bias components. It prevents core saturation caused by DC components. This feature is especially important in AC/DC converters, battery charge/discharge current monitoring, and pulse current testing with DC bias.
