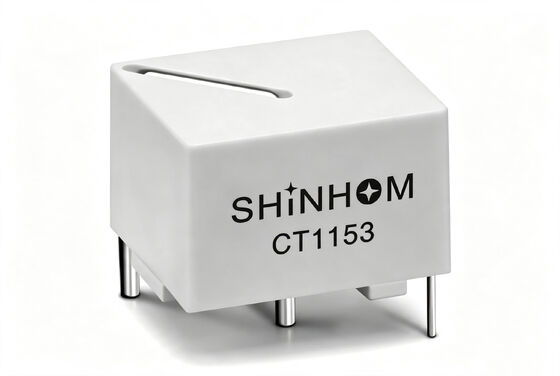

High Frequency Current Sense Transformer CT11 Series for SMPS and Lighting Control

The CT11 series PCB-mount high-frequency current sense transformer is designed for switching power supply (SMPS) applications. It provides output feedback signals to pulse control circuits, enabling low-cost power regulation.Rated primary current is 25A (maximum 40A). Frequency range is up to 500kHz.The product uses a high-permeability ferrite core. Seven standard turns ratio options are available: 1:50, 1:100, 1:150, 1:200, 1:300, 1:500, and 1:1000, suitable for different detection accuracy requirements.The low-profile PCB-mount design is available in multiple structural styles.It is widely used in switching power supplies, lighting control, and switch control applications.

• High frequency current transformers for SMPS appllications
• High-permeability ferrite current transformers
• Low-profile current transformers
• PCB mount current transformers
• Reliable linear performance transformers
• Turns Ratio: 1:50 1:100,1:150,1:200,1:300,1:500,1:1000 available
• Many differennt kinds of structure and style for your selection.
• Custom-made are welcome.
• Current sense transformers provide output feedback to the pulse control circuitry allowing low-cost regulation of switch-mode power supplies
• 25A Rated primary current(40A Max)
• 500kHz maximum frequency

• switch-mode power supplies
• lighting
• switch controls

• Insulation resistance: 500V DC >100MΩ
• Hi-Pot : 4000V 1mA 60S
• Temperature range: -40℃ to +125℃
• Storage Temperature: -40℃ to +125℃
• Resistance to soldering heat:260℃ for 10 seconds
• Marking: Part number and date code

Notes: Product specifications can be customized
