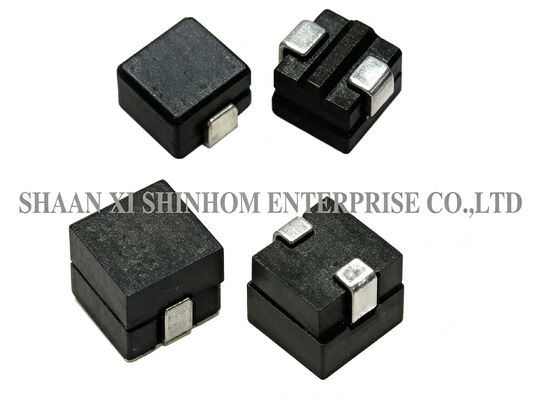

High Current SMD Power Inductor HCB0404/0505 Series for Servers and VRM Power Supply

5000PCS
MOQ
Negotiation
Price
High Current SMD Power Inductor HCB0404/0505 Series for Servers and VRM Power Supply
Features Gallery Product Description Chat Now
Features
Specifications
Current Range: 14A To 40A
Inductance Range: 22nH To 110nH
Installation: SMT
Pad Size: 4.0*4.0mm Or 5.0*5.0mm
Test Frequency: 100KHz / 0.1V@25℃ (1MHz/0.1V For 22NM)
Operating Temperature: -40℃ To +125℃(ambient Plus Self-temperature Rise)
Highlight:

High Current SMD Power Inductor

,

HCB0404/0505 Series Inductor

,

Power Inductor for Servers VRM
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HCB0404/0505
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

The HCB0404/0505 series high-current SMD power inductor uses a ferrite core and low-loss design. It offers high current capacity (14A to 40A) and low core loss, suitable for high-power-density power supply applications.Inductance range covers 22nH to 110nH, meeting different design requirements.It is widely used in portable electronic devices, servers and workstations, data networks and storage systems, laptops and desktops, graphics cards and battery-powered systems, multi-phase voltage regulators, and VRM voltage regulator modules.

FEATURES:
  • High current carrying capacity
  • Low core loss
  • Inductance range from 22nH to 110nH
  • Current range from 14A to 40A
  • Ferrite core material
APPLCATIONS:
  • Portable electronics
  • Servers and workstations
  • Data networking and storage systems
  • Notebook and desktop computers
  • Graphics cards and battery power systems
  • Multi-phase regulators
  • Voltage regulator module(VRM)
NOTES:
  • Test Frequency : 100KHz / 0.1V@25℃ (1MHz/0.1V for 22NM)
  • Irms: DC current for an approximate temperature rise of 40℃ without core loss
  • Isat1: Peak current for approximately 20% rolloff at +25℃
  • Isat2: Peak current for approximately 20% rolloff at +125℃
  • Operating temperature: -40℃ to +125℃(ambient plus self-temperature rise)
  • Storage temperature: -40℃ to +125℃
High Current SMD Power Inductor HCB0404/0505 Series for Servers and VRM Power Supply High Current SMD Power Inductor HCB0404/0505 Series for Servers and VRM Power Supply

Note: Product specifications can be customized.

FAQ

Q: What are the advantages of low core loss?

A: Low core loss reduces heat generation during high-frequency operation, improves conversion efficiency, lowers temperature rise, and extends product service life. It also helps meet the thermal and reliability requirements of high-density power supply designs.

Q: What is the difference between Irms and Isat?

A: Irms (rated current) is the DC current value that causes a temperature rise of approximately 40°C in the coil. Isat1 is the peak current at which inductance drops by approximately 20% at +25°C. Isat2 is the peak current at which inductance drops by approximately 20% at +125°C. For selection, take the lower of the two values and ensure the component temperature (ambient temperature + temperature rise) does not exceed 125°C.
