Surface Mount LAN Transformer HS2410/2411 Series for PoE Power Delivery

5000PCS
MOQ
Negotiation
Price
Surface Mount LAN Transformer HS2410/2411 Series for PoE Power Delivery
Features Gallery Product Description Chat Now
Features
Specifications
Turns Ratio: 1:1
Pins: 24
Standards: 350 UH OCL With 8mA Bias
Hi-Pot: 1500Vrms
Operating Temperature: 0℃ To 70℃
Storage Temperature: -55℃ To 125℃
Highlight:

Surface Mount LAN Transformer PoE

,

HS2410 LAN Transformer Power Delivery

,

Ethernet LAN Transformer HS2411
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: HS2410/2411
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

The HS2410/2411 series Ethernet Magnetic Transformer is designed for 1000 Base-T network applications. It supports full-duplex communication and PoE power supply functionality.The product uses a 1:1 turns ratio and complies with IEEE802.3u and ANSI X.3.263 standards. Open-circuit inductance is 350µH (with 8mA bias). Isolation voltage is 1500VRMS.The surface-mount package supports both wave soldering and reflow soldering processes.

It is widely used in Gigabit Ethernet switches, routers, network interface cards, PoE power supply devices, and various network communication equipment.

FEATURES

  • 1:1 Turns Ratio
  • Full Duplex Compatible
  • PoE MAGNETICS
  • Compliant with IEEE802.3u and ANSI X.3.263 standards including 350 uH OCL with 8mA bias
  • Hipot : 1500 VRMS
  • Soldering methods:Wave,Reflow
  • Operating Temperature:0℃ to 70℃
  • Storage Temperature:-55℃ to 125℃

Applications

  • Gigabit Ethernet switches
  • Network routers
  • Network Interface Cards (NIC)
  • PoE power supply devices
  • Network cameras
  • Wireless Access Points (AP)
  • Industrial Ethernet equipment
  • Embedded network modules

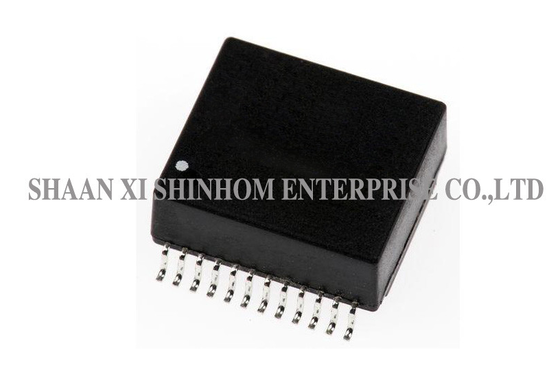

Surface Mount LAN Transformer HS2410/2411 Series for PoE Power Delivery

FAQ

Q: What Ethernet standards does the HS2410/2411 series support?

A: This series supports the 1000 Base-T Gigabit Ethernet standard, complying with IEEE802.3u and ANSI X.3.263 specifications. It is also compatible with PoE power supply functionality.

Q: What does an open-circuit inductance of 350µH (with 8mA bias) mean?

A: Open-circuit inductance (OCL) is an important parameter for Ethernet transformers. 350µH (with 8mA bias current) ensures signal transmission integrity and common-mode rejection capability under typical operating conditions, meeting Gigabit Ethernet performance requirements.

Q: What does PoE compatibility mean?

A: PoE (Power over Ethernet) compatibility means the transformer supports simultaneous power and data transmission over Ethernet cables. It is suitable for applications that require power supply for network devices, such as network cameras, wireless APs, and IP phones.
