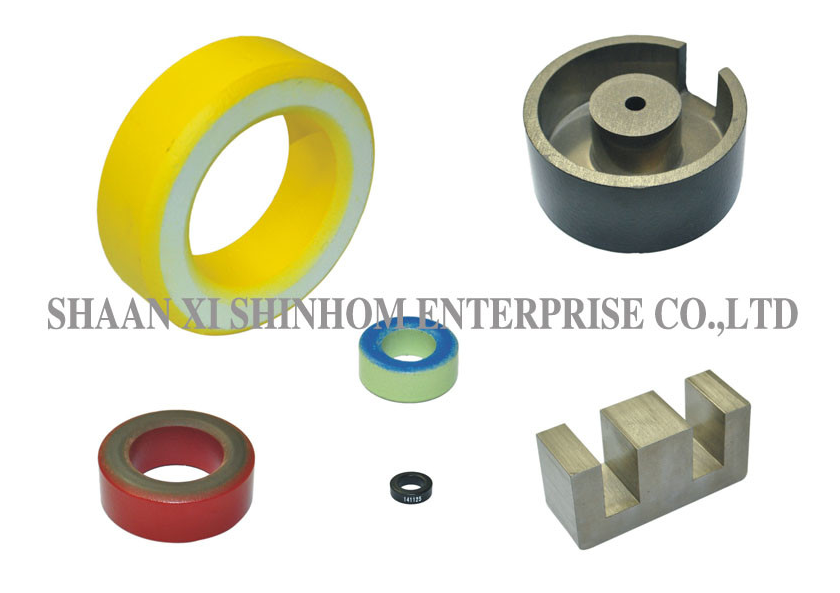

The iron powder core offers multiple shapes including toroidal, E-type, cylindrical, and I-type. They are manufactured using iron-based, cobalt-based, and nanocrystalline alloy materials, offering low eddy current loss and high saturation flux density (>1.56T). The product offers strong anti-DC bias saturation capability, low loss, and high efficiency. Operating temperature range is -55°C to +130°C. It is widely used in solar inverter PFC chokes, output chokes, high-speed rail power systems, solar power converters, and various power factor correction circuits.
Features
- Low eddy current losses
- High satration flux density Bs> 1.56T
- Application for solar power converter PFC chokes and outputchokes
- High-speed rail car power system
- Fe-based nanocrystalline cores
- Co-based Mag-Amp transformer cores
- Main materials: Fe-based, nanocrystalline-alloy, Co-base
- High saturation magnetic induction intensity
- Small core volume
- Rectangular structure
- Core openings
- Resist DC bias saturated
- Low loss
- Excellent temperature stability -55 to 130°C
- Customized cores sizes and various characteristics are available
Applications
-
Solar inverter PFC chokes
-
Output chokes
-
High-speed rail power systems
-
Solar power converters
-
Power Factor Correction (PFC) circuits
-
Mag-Amp magnetic amplifier transformers
-
High-frequency switching power supplies
-
DC bias saturation suppression applications
| Part No. |
AL nH/N2 |
A(mm) |
B(mm) |
C(mm) |
| T50-26 Yellow/White |
33 |
12.7±0.5 |
7.7±0.5 |
4.83±0.50 |
| T68-26Yellow/White |
43.5 |
17.5±0.5 |
9.4±0.5 |
4.83±0.50 |
| T80-26Yellow/White |
46 |
20.2±0.5 |
12.6±0.5 |
6.35±0.64 |
| T90-26Yellow/White |
70 |
22.9±0.5 |
14.0±0.5 |
9.53±0.64 |
| T94-26Yellow/White |
60 |
23.9±0.5 |
14.2±0.5 |
7.92±0.64 |
| T106-26Yellow/White |
93 |
26.9±0.5 |
14.5±0.5 |
11.1±0.64 |
| T130-26Yellow/White |
81 |
33.0±0.5 |
19.8±0.5 |
11.1±0.64 |
| T150-26Yellow/White |
96 |
38.4±0.5 |
21.5±0.5 |
11.1±0.64 |
| T60-52Blue/Green |
47 |
15.2±0.5 |
8.53±0.5 |
5.94±0.50 |
| T68-52Blue/Green |
40 |
17.5±0.5 |
9.40±0.5 |
4.83±0.50 |
| T80-52Blue/Green |
42 |
20.2±0.5 |
12.6±0.5 |
6.35±0.64 |
| T90-52Blue/Green |
64 |
22.9±0.5 |
14.0±0.5 |
9.53±0.64 |
| T106-52Blue/Green |
95 |
26.9±0.5 |
14.5±0.5 |
11.1±0.64 |
| T130-52Blue/Green |
79 |
33.0±0.5 |
19.8±0.5 |
11.1±0.64 |
| T150-52Blue/Green |
89 |
38.4±0.5 |
21.5±0.5 |
11.1±0.64 |
Note: since there are many specifications and varieties of t-type iron powder cores, please put forward specific requirements on shape size and inductance when ordering.
FAQ
Q: What are the advantages of iron powder cores compared to ferrite cores?
A: Iron powder cores offer higher saturation flux density (>1.56T) and strong anti-DC bias saturation capability, suitable for high-current, high-power-density applications. Ferrite cores have lower high-frequency loss but lower saturation flux density (approximately 0.3-0.5T). Iron powder cores are more suitable for power chokes and PFC applications.
Q: What are the characteristics of nanocrystalline alloy cores?
A: Nanocrystalline alloy cores offer high saturation flux density (>1.56T) , low core loss, and excellent temperature stability. In high-frequency, high-power applications, they combine the high saturation characteristics of iron powder cores with the low-loss advantages of ferrite cores. They are suitable for high-end applications such as high-speed rail power systems and solar inverters.
Q: What core shapes are available in this series?
A: Multiple shapes are available, including toroidal, E-type, cylinder, and drum. The appropriate core structure can be selected based on the specific application and installation space.
Q: What is the significance of anti-DC bias saturation capability?
A: In PFC chokes and output choke applications, large DC bias current can cause core saturation, leading to a sharp drop in inductance. The excellent anti-DC bias saturation capability of this core ensures stable inductance under high-current conditions, maintaining filtering effectiveness.
