Features

Specifications

Model Number: EE/EF Type

Type: Soft Magnetic

Product Name: Operating In High Frequency Soft Magnetic Mn-Zn Ferrite Core

Material: Mn-Zn Ferrite Core

Application: Industrial Magnet, Electronic Products

Customized: Customized

Highlight:

EE EF ferrite cores low loss

Mn-Zn ferrite cores high frequency

ferrite cores for transformers inductors

Basic Infomation

Place of Origin: China

Brand Name: Shinhom

Certification: RoHS

Model Number: EE

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 4~8 Weeks

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

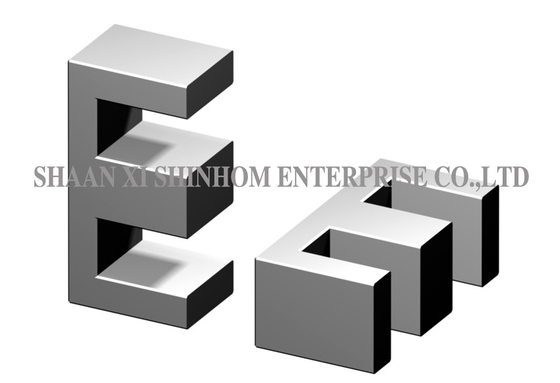

EE/EF Type Ferrite Cores Low Loss High Frequency Mn-Zn Material for Transformers and Inductors

Product Description

The EE/EF type ferrite core is manufactured using manganese-zinc (Mn-Zn) material. It offers low loss and high-frequency characteristics, specifically designed for transformer and inductor applications. The product offers high saturation flux density, wide inductance range, high current capacity, and low leakage flux. Low DCR effectively reduces power loss. Good noise control ensures stable system operation. The compact size delivers high current output with excellent choking performance. Multiple material grades are available to meet different frequency requirements. It is widely used in transformers, induction heating, inverter welders, electroplating power supplies, and ozone generators.

Features

High Saturation material, low cost & high efficiency
wide inductance range, high current capability low magnetic leakage
low DC resistance, good control on noise due to the toroidal constructure
Characteristics: Small volume, Big current output, Excellent current choking performance.
Various material availiable to meet different frequency requirements

Applications

Transformers
Induction heating equipment
Inverter welders
Electroplating power supplies
Ozone generators
Switching power supplies
Power Factor Correction (PFC) inductors
Filter inductors

Core range:

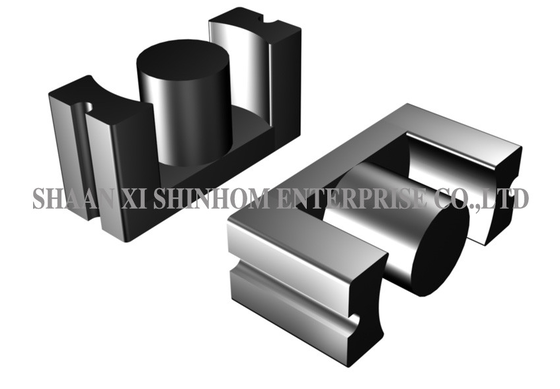

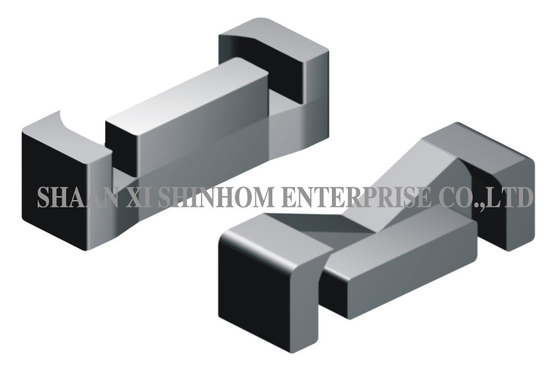

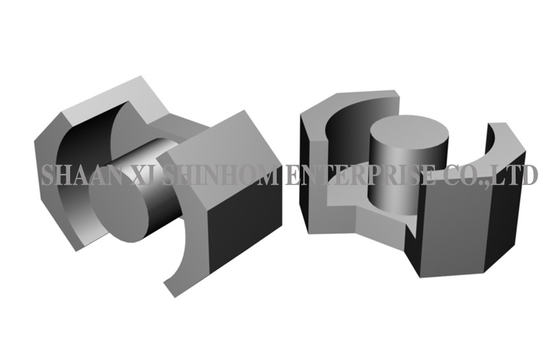

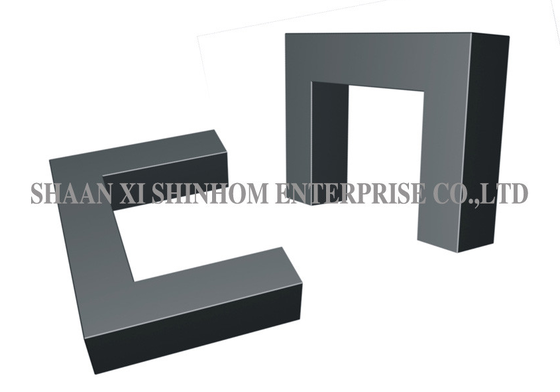

EI Cores, EE/EF Cores, EER/ETD Cores ,UU Cores, UYF Cores, EP Cores, RM Cores, PM Cores, PQ Cores, ET/FT Cores, T Cores

TYPE	Dimension(mm)
TYPE	A	B	C	D	E	F
EE8	8.3±0.2	6	1.8±0.2	3.6±0.2	3.0±0.1	4.0±0.1
EE10	10.0±0.3	7	2.4±0.2	4.6±0.3	4.2±0.2	5.4±0.2
EE11	11.0±0.3	8	2.4±0.2	5.0±0.2	4.2±0.2	5.5±0.2
EE13	12.9±0.3	8.5	2.8±0.2	6.0±0.3	3.6±0.2	5.0±0.3
EE13A	13.0±0.3	10.2±0.3	2.6±0.2	5.9±0.2	4.6±0.1	6.0±0.2
EE16/7/5	16.0±0.3	12.0±0.3	3.8±0.2	4.8±0.2	5.2±0.2	7.2±0.1
EE16/8/5	16.1±0.6	11.3	4.55±0.2	4.5±0.2	5.9±0.2	8.0±0.2
EE19	19.0±0.3	14	4.8±0.3	4.8±0.3	5.7±0.2	8.0±0.3
EEL19	19.5±0.4	14.6min	4.85±0.25	4.85±0.25	11.2±0.2	14.0±0.3
EE20	20.0±0.7	12.8	5.0±0.4	6.0±0.4	6.5±0.3	10.0±0.3
EF20	20.15±0.7	14.1	5.7±0.3	5.65±0.3	7.0±0.3	10.0±0.25
EF21	20.7±0.7	15	5.7±0.3	5.65±0.3	7.3±0.2	10.1±0.2
EE22	22.0±0.6	15.6	5.7±0.3	5.7±0.3	5.4±0.3	9.2±0.3
EE25	25.0±0.4	18.6±0.3	6.5±0.3	6.5±0.3	6.8±0.2	10.0±0.2
EF25	25.0±0.4	18.6±0.3	7.2±0.3	7.2±0.3	6.8±0.2	12.5±0.2
EE25.4	25.4±0.7	18.7	6.5±0.2	6.3±0.3	6.6±0.4	10.0±0.4
EEL25	25.5±0.6	19.4±0.4	6.5±0.25	6.4±0.25	13.1±0.25	16.3±0.25

EE/EF Type Ferrite Cores Low Loss High Frequency Mn-Zn Material for Transformers and Inductors

FAQ

Q: What is the difference between EE-type and EF-type cores?

A: EE-type cores have symmetrical side legs with a square or round centre leg cross-section. They offer good magnetic symmetry and are suitable for conventional transformers and inductors. EF-type cores (Economical Flat) are flat and cost-effective designs with more compact dimensions, suitable for high-density PCB mounting and low-profile applications.

Q: What are the characteristics of manganese-zinc (Mn-Zn) ferrite compared to nickel-zinc (Ni-Zn)?

A: Manganese-zinc ferrite offers high permeability, high saturation flux density, and low cost, suitable for low to medium frequency (≤1MHz) high-power transformer and inductor applications. Nickel-zinc ferrite offers high resistivity, suitable for high-frequency (>1MHz) EMI suppression and RF applications. Selection should be based on the operating frequency.

Q: What core series are available for this product?

A: Multiple core series are available, including EI, EE/EF, EER/ETD, UU, UYF, EP, RM, PM, PQ, ET/FT, and T. These cover applications from signal transformers to high-power switching power supplies.
