Self-Locking Split-Core SCTK660C Series for Power Distribution and Automation Control

Negotiation
MOQ
Negotiation
Price

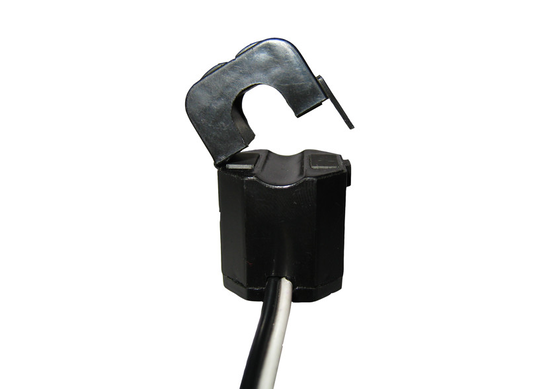

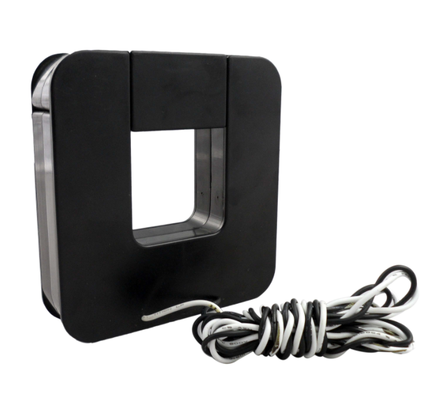

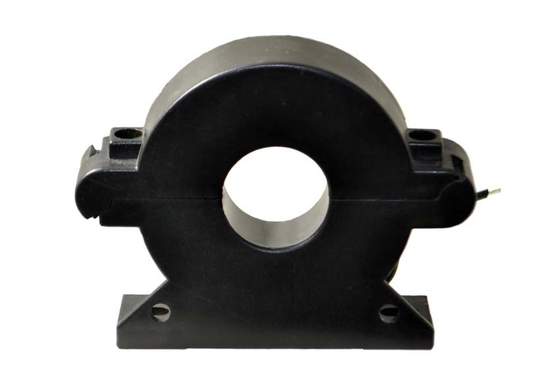

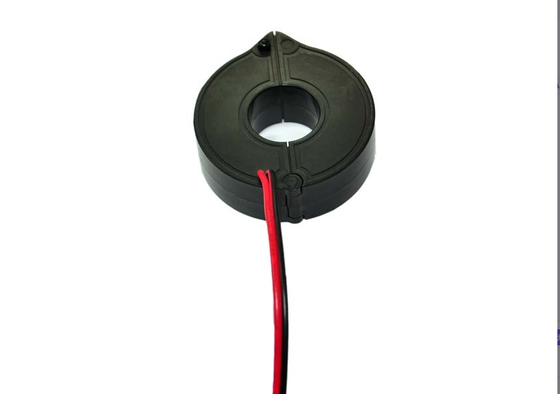

Self-Locking Split-Core SCTK660C Series for Power Distribution and Automation Control
Features Gallery Product Description Chat Now
Features
Specifications
Current Range: 0.5~1000A
Output: 0-500mA Or 0.333V(AC)
Class: 0.2、0.5、1.0
Internal Structure: Epoxy
Insulating Medium: Epoxy Resin
Bobbin: PC
Case: PC/UL94-V0
Customizable: Yes
Highlight:

Self-Locking Split Core Current Transformer

,

SCTK660C Series Current Transformer

,

Split Core Transformer for Power Distribution
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK660C Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Product Description

The SCTK660C series split-core current transformer is designed for current measurement and monitoring in new or existing power distribution networks. The product uses a split-core self-locking structure that allows quick installation without disconnecting or removing cables or busbars. The wide window design accommodates large-diameter cables or busbars. The secondary winding has a built-in precision parallel resistor, providing a safe low-voltage output without the need for external sampling resistors. It is widely used for current measurement, monitoring, and protection in power lines and equipment, as well as current and power measurement for motors, lighting, air compressors, HVAC, and automation control systems, as well as energy monitoring and relay protection devices.

Features

  • Measuring range – 0.5A-1000A

  • Output signal – 0.333V or 0-500mA

  • Split-core self-locking structure

  • Wide window – accommodates large cables and busbars

  • Built-in precision resistor – safe low-voltage output

  • Multiple sizes available

  • Installation without cable removal

  • Saves installation time and cost

Applications

  • Power line current measurement and monitoring

  • Electrical equipment current protection

  • Motor current and power measurement

  • Lighting system power monitoring

  • Air compressor current monitoring

  • HVAC systems

  • Automation control systems

  • Energy monitoring and relay protection devices

Electrical Parameter
Ratio ≤± 0.2％
Phase angle ≤ ±10min
Measuring range 10%In-130%In
Rated Output 0.333V(AC) or 0-5A
Frequency 50-2.5KHz
Rated Input 0.5A-1000A
Dielectric strength 5.0KV/1mA/1min
Insulation Resistance DC500V/100MΩmin
Mechanical Parameter
Case PC/UL94-V0
Bobbin PBT
Construction Tie
Internal structure Epoxy
Core Permalloy
Operating Humidity ≤85%
Operating Temp －25℃～＋75℃
Output Connection Terminal or UL1015 22AWG Wire 1.5m
Type selection
P/N Rated Input(A) Output(mA/V) Accuracy Dimensions(mm)
A B C D
SCTK660C-010 0.5-100A 0.333V/0-50mA 0.2,0.5,1.0 57.0 50.0 22.0 10.0
SCTK660C-019 1-250A 0.333V/0-100mA/1A 0.2,0.5,1.0 66.0 59.0 22.0 19.0
SCTK660C-025 5-400A 0.333V/0-200mA/1A/5A 0.2,0.5,1.0 73.0 65.0 22.0 25.0
SCTK660C-032 5-630A 0.333V/0-200mA/1A/5A 0.2,0.5,1.0 82.0 74.0 22.0 32.0
SCTK660C-045 5-1000A 0.333V/0-500mA/1A/5A 0.2,0.5,1.0 95.0 86.0 22.0 45.0

Self-Locking Split-Core SCTK660C Series for Power Distribution and Automation Control
Notes: Product specifications can be customized

FAQ

Q: What is the function of the built-in precision resistor?

A: The secondary winding has a built-in precision parallel resistor. It converts the current signal directly into a safe low-voltage output (0.333V) or standard current signal (0-500mA), eliminating the need for external sampling resistors. This simplifies installation, improves safety, and saves component costs and installation space.

Q: How to choose the output signal type?

A: 0.333V output is suitable for electronic energy meters, PLCs, and voltage-input measurement instruments. 0-500mA output is suitable for control systems and traditional measurement equipment that require current signals. Please choose based on your measurement equipment input interface.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
