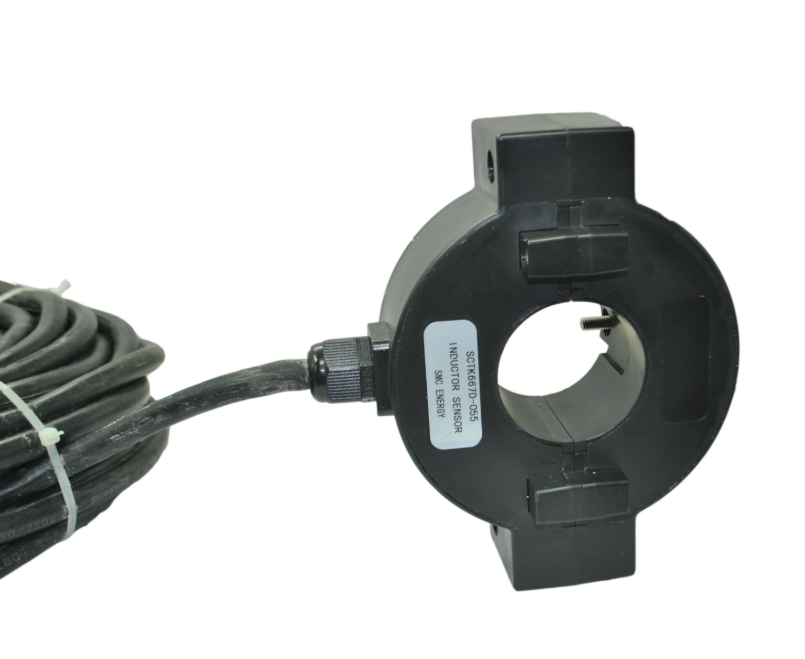

Waterproof Current Transformer SCTK667D Series for Outdoor Retrofit Projects

Negotiation
MOQ
Negotiation
Price
Waterproof Current Transformer SCTK667D Series for Outdoor Retrofit Projects
Features Gallery Product Description Chat Now
Features
Specifications
Current Range: 50~2000A
Output: 1A/5A
Accuracy: 0.2、0.5、1.0、3.0
Waterproof Level: IP65
Phase: Single
Customizable: Yes
Highlight:

Waterproof split core current transformer

,

Outdoor retrofit current transformer

,

SCTK667D current transformer
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK667D Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Product Description

SCTK667D series instrument current transformers employs imported silican steel which with high permeability as magnetic material, have the characteristics of Small magnetic circuit loss and can be cut, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti moisture, stable performance, no maintenance.

Features:
  1. Test range: 50 to 2000A AC input
  2. Output of 1A or 5A
  3. Split core current transformer with interleaved joint and hinge structure
  4. Outdoor use, resisting wind, rain and UV fading,IP65, Acquisition voltage signal in the field
  5. Wide inner window, allowing clamping of big cables or bus-bars
  6. Wide range of sizes to accommodate all the existing installations
  7. Test hole series size clamp leaker AC current transformer
Applications
  • Outdoor power distribution systems
  • Outdoor power monitoring
  • Energy management
  • Retrofit projects (online installation)
  • Motor current measurement
  • HVAC systems
  • Industrial automation control
  • Relay protection devices
Working conditions:
  1. Ambient temperature:-35°C~+55°C
  2. Environment: outdoors or indoors
  3. The Height of above sea level:0~ 3000m .
  4. Atmosphere conditions: No highly polluted, errosion, erosiveness, radioactivity gases.
  5. (continuous working under the rated current is allowed)
Electrical Parameter
Frequency 50-60Hz
Rated Input 50A-2000A
Measuring range 1%In-130%In
Rated Output 1A/5A
Ratio ≤ ± 0.2%
Phase angle ≤ ±10min
Dielectric strength 3.0KV/1mA/1min
Insulation Resistance DC500V/100MΩmin
Mechanical Parameter
Case PC+ABC/UL94-V0
Bobbin PBT
Core Permalloy
Internal structure Epoxy
Construction Tie
Operating Temp －35℃～＋55℃
Operating Humidity ≤96%
Output Connection Terminal or UL14AWG Wire 1.5m
Type selection
P/N Rated Input (A) Output (A) Accuracy Dimensions(mm)
ø A B C
SCTK667D-025 50-400A 1A/5A 0.5/1.0/3.0 25 173 105 56
SCTK667D-032 100-630A 1A/5A 0.5/1.0/3.0 32 206 112 56
SCTK667D-045 100-1000A 1A/5A 0.2/0.5/1.0 45 193 125 56
SCTK667D-055 100-1200A 1A/5A 0.2/0.5/1.0 55 180 135 56
SCTK667D-065 100-1500A 1A/5A 0.2/0.5/1.0 65 203 145 56
SCTK667D-080 200-2000A 1A/5A 0.2/0.5/1.0 80 228 160 56
SCTK667D-100 500-3000A 1A/5A 0.2/0.5/1.0 100 248 180 56

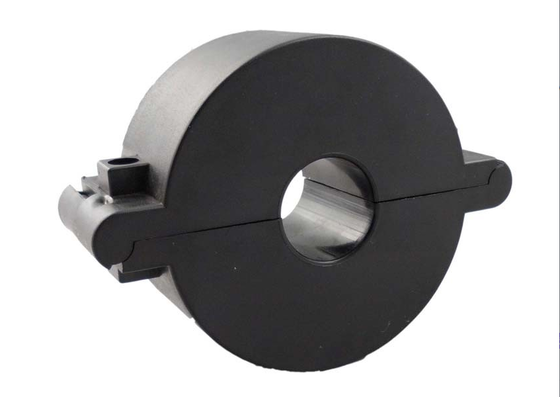

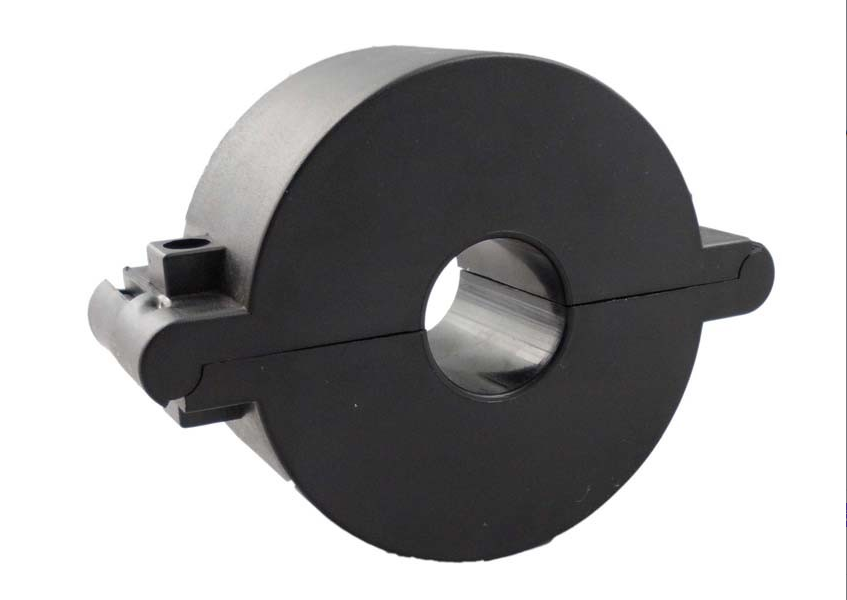

Waterproof Current Transformer SCTK667D Series for Outdoor Retrofit Projects

Notes: Product specifications can be customized

FAQ
Q: What does IP65 protection rating mean?
A: IP65 means the product is fully dust-tight (6) and protected against low-pressure water jets from any direction (5). It is suitable for outdoor environments, resistant to wind, rain, and humid climates, ensuring long-term stable operation under harsh weather conditions.
Q: What are the advantages of epoxy resin vacuum potting?
A: Epoxy resin vacuum potting ensures the core and windings are fully sealed, providing excellent moisture-proof, dust-proof, and insulation protection. It prevents moisture and contaminants from penetrating, ensuring long-term reliability and maintenance-free operation in outdoor humid environments.
Q: What altitude is this product suitable for?
A: It is suitable for altitudes from 0-3000m, meeting the needs of most outdoor power distribution and industrial applications, including power monitoring projects in high-altitude areas.
