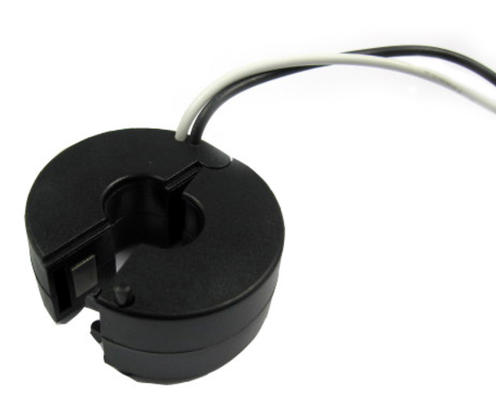

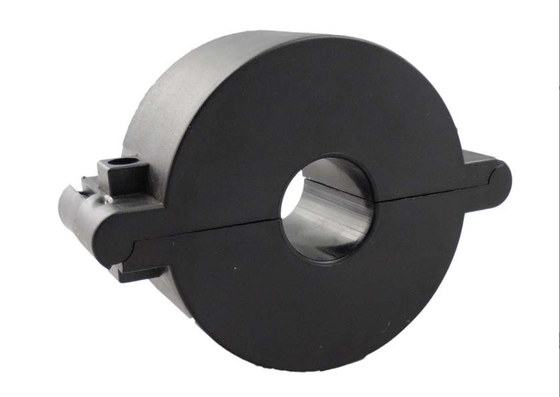

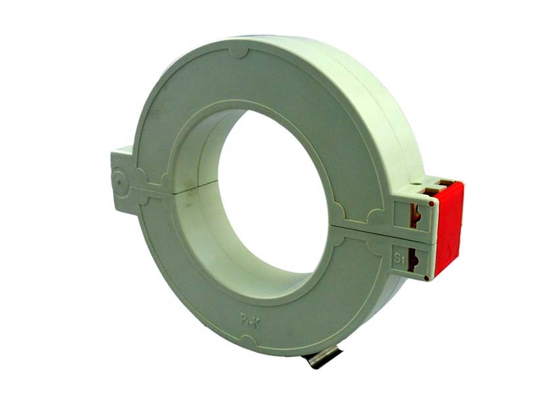

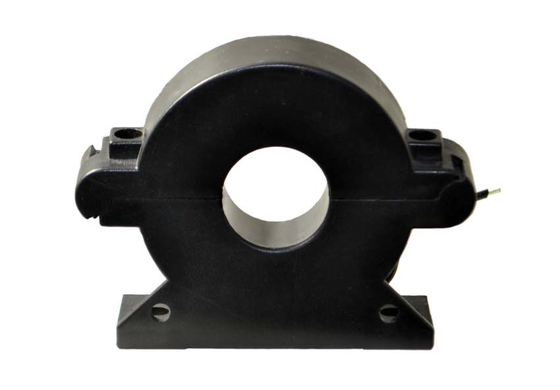

Split-Core CT SCTK667B Series for Motor Measurement and HVAC

Negotiation
MOQ
Negotiation
Price
Split-Core CT SCTK667B Series for Motor Measurement and HVAC
Features Gallery Product Description Chat Now
Features
Specifications
Current Range: 5~3000A
Output: 1A/5A Or 0-10V Or 0-500mA
Installation: Busbar Type
Accuracy: 0.1、0.2、0.5、1.0
Magnetic Circuit Structure: Combined Type
Frequency: 50Hz To 400Hz
Insulating Medium: Epoxy Resin
Customizable: Yes
Highlight:

Split Core Current Transformer for HVAC

,

Split Core CT for motor measurement

,

SCTK667B Series current transformer
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK667B Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Product Description

The SCTK667B series double-screw split-core current transformer is designed for current measurement and monitoring in new or existing power distribution networks. Measuring range is 5A to 3000A. The product uses a split-core structure that allows quick installation without disconnecting or removing cables or busbars. The wide window design accommodates large-diameter cables or busbars. Double-screw fastening ensures secure and reliable installation. The secondary winding has a built-in precision parallel resistor, providing a safe low-voltage output without the need for external sampling resistors. Multiple sizes are available to adapt to various existing installation conditions. It is widely used for current measurement, monitoring, and protection in power lines and equipment, as well as current and power measurement for motors, lighting, air compressors, HVAC, and automation control systems, as well as energy monitoring and relay protection devices.

Features
  • Measuring range – 5A-3000A
  • Split-core structure – no cable removal required
  • Double-screw fastening – secure installation
  • Built-in precision resistor – safe low-voltage output
  • Wide window – accommodates large cables and busbars
  • Multiple sizes available
  • Suitable for new and retrofit projects
  • Saves installation time and cost
Applications
  • Power line current measurement and monitoring
  • Electrical equipment current protection
  • Motor current and power measurement
  • Lighting system power monitoring
  • Air compressor current monitoring
  • HVAC systems
  • Automation control systems
  • Energy monitoring and relay protection devices
Electrical Parameter
Frequency50-400Hz
Rated Input5A-3000A
Measuring range5%In-130%In
Rated Output0-10V(AC) or 0-5A
Ratio≤ ± 0.1％
Phase angle≤ ±5min
Dielectric strength3.0KV/1mA/1min
Insulation ResistanceDC500V/100MΩmin
Mechanical Parameter
CaseABS /UL94-V0
BobbinPBT
CoreSilicon steel
Internal structureEpoxy
ConstructionTie
Operating Temp－25℃～＋75℃
Operating Humidity≤85%
Output ConnectionTerminal
Type selection
P/NRated Input (A)Output (A/V/mA)AccuracyDimensions(mm)
Ø0ABCD
SCTK667B-0250-400A1A/5A
0-10V
0-500mA		0.1,0.2
0.5,1.0		25100703332
SCTK667B-0320-630A1A/5A
0-10V
0-500mA		0.1,0.2
0.5,1.0		32110833332
SCTK667B-0450-1000A1A/5A
0-10V
0-500mA		0.1,0.2
0.5,1.0		45123963332
SCTK667B-0550-1500A1A/5A
0-10V
0-500mA		0.1,0.2
0.5,1.0		551341063332
SCTK667B-0800-2000A1A/5A
0-10V
0-500mA		0.1,0.2
0.5,1.0		801681393332
SCTK667B-1000-3000A1A/5A
0-10V
0-500mA		0.1,0.2
0.5,1.0		1021981683332
Split-Core CT SCTK667B Series for Motor Measurement and HVAC

Notes: Product specifications can be customized

FAQ

Q: What are the advantages of double-screw fastening?

A: Double-screw fastening ensures the transformer remains securely locked onto the cable or busbar after installation. It will not loosen or shift due to vibration or external forces, ensuring safe and reliable installation. Compared to snap-on structures, double-screw fastening provides stronger clamping force, suitable for high-current and high-vibration environments.

Q: What is the function of the built-in precision resistor?

A: The secondary winding has a built-in precision parallel resistor. It converts the current signal directly into a safe low-voltage output, eliminating the need for external sampling resistors. This simplifies installation, improves safety, and saves component costs and installation space.

Q: What window sizes are available for this product?

A: The wide window design accommodates large-diameter cables or busbars. Multiple sizes are available to adapt to various existing installation conditions. For specific window dimensions, please refer to the product datasheet or contact our sales team.
