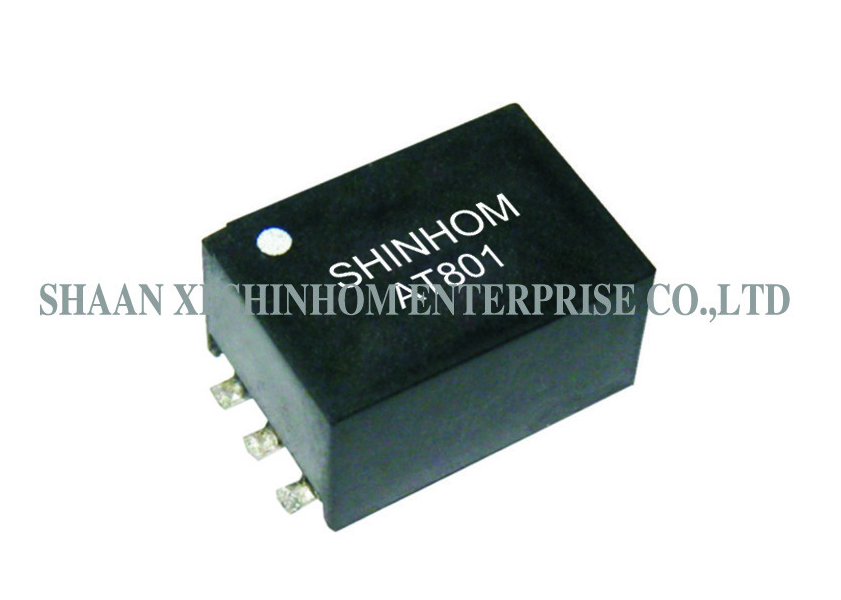

Epoxy Potted SMD Audio Transformer for Audio Systems and Telecom Isolation

This epoxy potted SMD audio transformer features an SMD package and epoxy potting process, providing excellent moisture-proof, dust-proof, and insulation protection.Frequency range: 20Hz to 20kHz. Frequency response: ≤0.25dB, ensuring high-fidelity audio signal transmission.It is widely used in audio systems, telecom isolation, SMD fax modems, AV audio telecom equipment, and PCMCIA applications, supporting data rates from 2400bps to 56.6Kbps (V.90).

FEATURES

• RoHS Directive-compliant
• Audio transformer

• Operating temperature:-25 to +125°C

• Storage temperature: -25 to +85°C

• Widely used in audio systems
• Isolated telecommunication transformer
• SMD fax modem telecom transformers SMD
• Adequate civil AV audio telecom transformer 2,400bps to 56.6Kbps (V.90) and PCMCIA applications

1. DCR: Pin1-3=115Ω±15%
              Pin4-6=115Ω±15%
2. INDUCTANOE PARALLEL: 200Hz,0.78V
             Pin1-3=5.8H Min
             RESISTANCE PARALLEL 7500ΩMin
3. LEAKAGE INDUCTANCE: 1KHz,0.1V
             Pin1-3(4-6short)=6mH Typ
4. INSERTION LOSS: 2KHz,0dB
             Pin1-3(4-6 W/H 412Ω)=2dB Max
5. RETURN LOSS: REF 600Ω
            FROM 200Hz~4Hz=24dB Min
6. TURN RATIO: 15KHz,1V
            Pin1-3: 6-4=1±1%
7. INSULATION RES|STAN0E100MΩ@500VDC
8. HI-POT: 4600VAC 1mA 60SEC: P-S

Applications

• Audio systems

• Telecom isolation

• SMD fax modems

• AV audio telecom equipment

• PCMCIA applications

• Audio signal isolation

• Broadcast equipment

• Communication equipment
