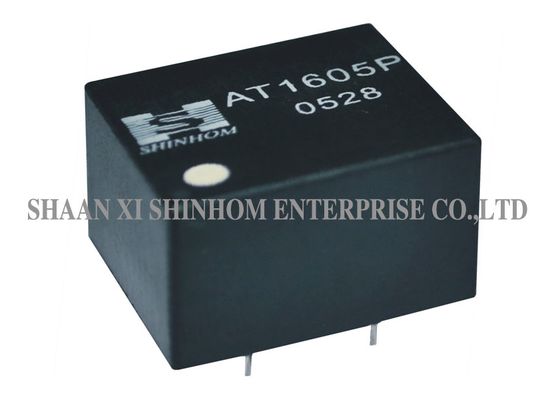

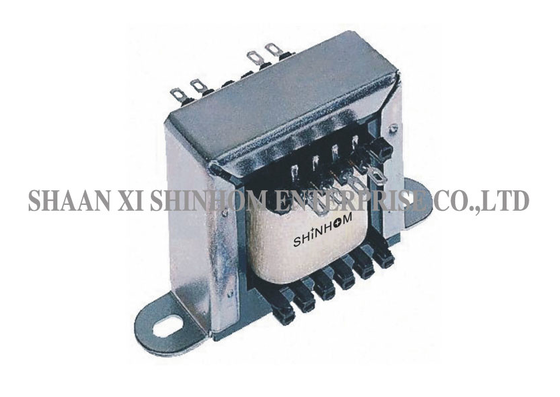

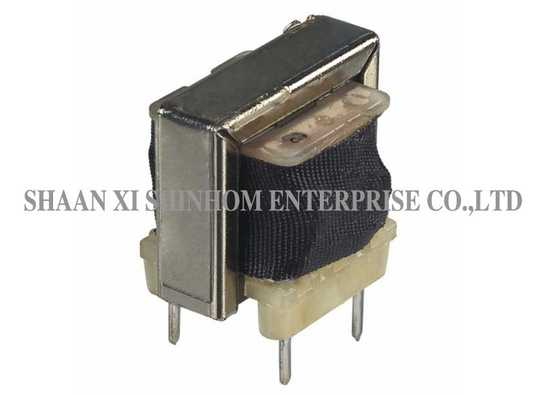

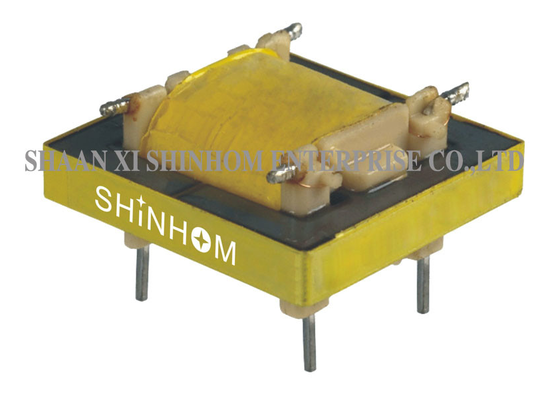

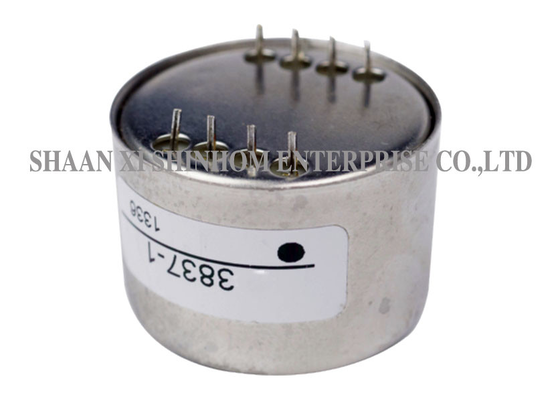

Audio Isolation Transformer 40Hz-10kHz 1000V Isolation for Telecom and Audio Equipment

This audio transformer is designed for audio systems and telecom isolation applications. Frequency range is 40Hz to 10kHz. Power rating is 5W Max. It offers high reliability. Withstand voltage tests: Primary-Secondary: 1000Vdc. Primary-Case: 1000Vdc. Secondary-Case: 500Vdc. Frequency response: At the end frequencies of 40Hz and 10kHz, amplitude roll-off is ≤30% . Insertion loss: 2.0dB @1kHz. Return loss: 1.0dB @1kHz. Longitudinal distortion: 78dB @1kHz. It is widely used in audio systems, telecom isolation, broadcast equipment, and communication equipment.

FEATURES:

1. RoHS Directive-compliant
2. Audio transformer
3. Widely used in audio systems
4. Isolated telecommunication transformer
5. Audio meets UL 1950 or EN60950 telecom transformer
6. Frequency range: 40Hz to 10kHz audio telecom transformer

Electrical specification

1. Power rating: 5W Max

2. Hi-Pot: 1000Vdc Pri to Sec
1000Vdc Pri to Case
500Vdc Sec to Case

3. RDC: Pin 4-6: 0.4ΩMax
Pri 1-2: 80ΩMax
Pri 2-3: 40ΩMax

4. Frequency response: 40Hz to 10KHz with no more than 30% amplitude roll off at the end frequency into matched loads

5. Insertion loss: 2.0dB@1KHz

6. Return Loss: 1.0dB@1KHz

7. Longitudinal distortion: 78dB@1KHz

Applications

• Audio systems

• Telecom isolation

• Broadcast equipment

• Communication equipment

• Audio signal coupling

• Audio isolation transmission

• Professional audio equipment

• Industrial audio applications

Shinhom Policy of quality control

It is Shinhom surviving lifeline to seek for customer satisfaction,which can be gained by a combination of superior quality,reasonable delivery time , competitive prices as well as customer-oriented services,so as to ensure that the turned out products measure up to customers,demands .

FAQ

Q: What does end frequency amplitude roll-off ≤30% mean?

A: At the low-frequency end of 40Hz and the high-frequency end of 10kHz, signal amplitude attenuation does not exceed 30%, ensuring good signal transmission quality is maintained even at the frequency range boundaries.

Q: What does insertion loss of 2.0dB @1kHz represent?

A: At the 1kHz reference frequency, the power loss of the signal passing through the transformer is 2.0dB. Lower insertion loss means higher signal transmission efficiency.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
