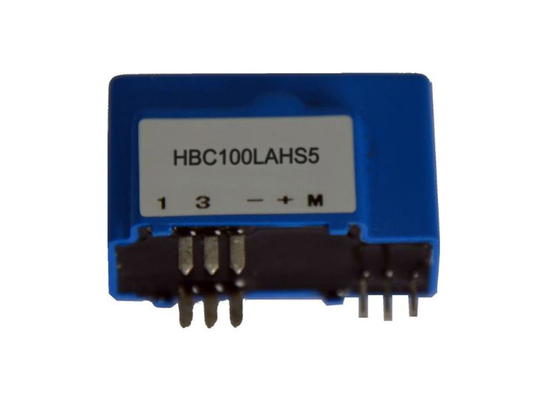

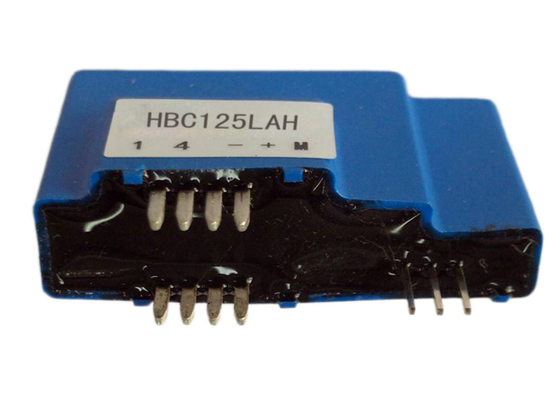

HBC100LAHS5 Series Closed Loop Hall Effect Current Sensor 100A for Inverter Applications

Negotiation
MOQ
Negotiation
Price
HBC100LAHS5 Series Closed Loop Hall Effect Current Sensor 100A for Inverter Applications
Features Gallery Product Description Chat Now
Features
Specifications
Installation: PCB Mounting
Input: 100A
Output: ±0.625V±0.5%
Supply Voltage: +5V±5%
Certification: CE, RoHS, ISO
Operating Temperature: -40～+85℃
Highlight:

Hall Effect current sensor 100A

,

Closed loop current sensor for inverter

,

HBC100LAHS5 current sensor with warranty
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HBC100LAHS5
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

The HBC100LAHS5 series closed-loop Hall effect current sensor is manufactured using a closed-loop design and current isolation technology, specifically developed for inverters and AC-DC variable frequency drives, ensuring high precision, stable performance, and safe isolation. The product features a robust and reliable structure with current isolation between primary and secondary circuits. It is suitable for inverters, uninterruptible power supplies, and photovoltaic applications. It is an ideal choice for Hall effect current sensor applications in current measurement and new energy.

Features:

  • Closed- loop
  • Operating currents: 0 to 100A
  • Power supply: +5V±5%
  • Rated output voltage: ±0.625V±0.5%
  • High accuracy grade
  • Mount easily

Applications:

  • Inverter applications
  • AC/DC variable-speed drive
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Photovoltaic (PV) current applications
  • New Energy Combiner Box Measurement
  • Wind Power Industry Current Detection
  • Electric vehicle charging equipment current sensing
  • Automible By-wire application
  • Household appliance frequency conversion
  • Auto air conpressor application
  • Hybrid battery pack current sensing
  • Automobile electrical power steering system application

ELECTRICAL DATA:

HBC100LAHS5
Rated input current(Ipn) 100 A
Test current range(Ip) ±240 A
Turns ratio(Np/Ns) 1:1200 T
Rated output voltage ±0.625±0.5% V
Supply voltage +5±5% V
Consumption current 20+ Ip *( Np/Ns) mA
Offset voltage 2.5±0.4% V
Reference voltage(VR) 2.5±0.5% V
External reference voltage 2.0-2.8 V
Offset voltage Drift ≤±0.1 mV/℃
Output voltage Drift ≤±0.05 mV/℃
LinearityIp=0-±Ipn) ≤±0.2 %FS
Class ≤±1.0 %
di/dt ＞100 A/µS
Response time(100A/µS, 10%～90%) ≤1 µS
Bandwidth(-3db) DC～100 KHZ
Insulation voltage(50HZ,AC,1min) 5.0 KV
Operating Temperature(TA) -40～+85 ℃
Storage Temperature(TS) -40～+105 ℃
Gross weight(M) 22 g

HBC100LAHS5 Series Closed Loop Hall Effect Current Sensor 100A for Inverter Applications

Notes: Product specifications can be customized

FAQ

Q: Does this product support customisation?

A: Yes. Parameters can be customised based on customer circuit diagrams or application requirements. Please contact our sales team to confirm the customisation plan.

Q: What is the typical lead time for mass orders?

A: Mass order lead time is generally 2-8 weeks. Custom products will be confirmed separately. The specific lead time is subject to confirmation at the time of order.

Q: Do you provide technical support and selection recommendations?

A: Yes. We have a professional technical team that can provide selection recommendations and customisation solutions based on customer application scenarios and circuit requirements.
