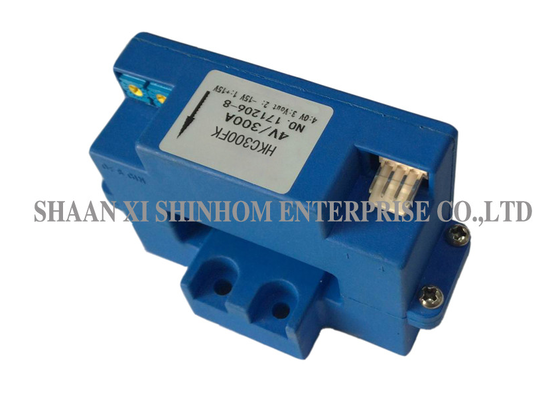

Clamp-On Hall Sensor HKC-FK Series for Battery Supplied Applications and Industrial Control

The HKC-FK series snap-fit Hall effect current sensor is based on the open-loop Hall effect measurement principle, providing electrical isolation between the primary and secondary circuits. It accurately measures DC, AC, or pulse currents, with a rated input of up to 1000A. The product uses a snap-fit mounting structure that allows installation without disconnecting the cable under test, making operation convenient. Customisation of different rated input currents and output voltages is supported. It is widely used in variable speed drives, welding machines, battery-powered applications, UPS, and electrochemical applications.

Rated input – up to 1000A

• Measuring principle – open-loop Hall effect

• Measurement type – DC / AC / pulse

• Isolation – electrical isolation between primary and secondary

• Mounting method – snap-fit

• Customisation support – range / output voltage customisable

• Complies with UL94-V0 flame retardant standards

1. When the current will be measured goes through a sensor, the voltage will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)

2. Custom design in the different rated input current and the output voltage are available.

• Variable speed drives
• Welding machine
• Battery supplied applications
• Uninterruptible Power Supplies (UPS)
• Electrochemical

1. UL94-V0.
2. EN60947-1:2004
3. EC60950-1:2001
4. EN50178:1998
5. SJ 20790-2000

Notes: Product specifications can be customized

Q: Does the snap-fit Hall current sensor require power-off during installation?

A: No. The HKC-FK series uses a snap-fit split-core structure that can be installed without disconnecting or removing the cable under test. It is especially suitable for retrofit projects and applications where power cannot be turned off, offering convenient installation.
