IP65 Hall Effect Current Sensor 0 to 200A for Welding Power Supplies

Negotiation
MOQ
Negotiation
Price

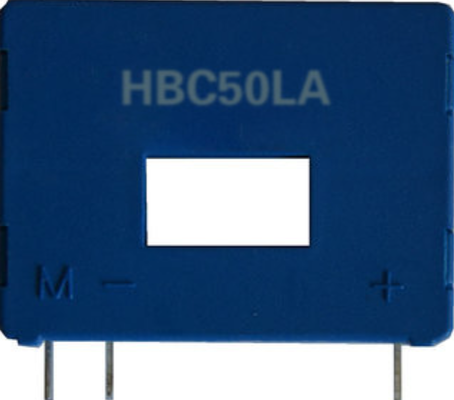

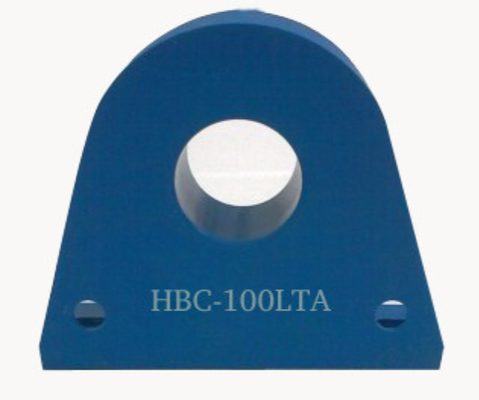

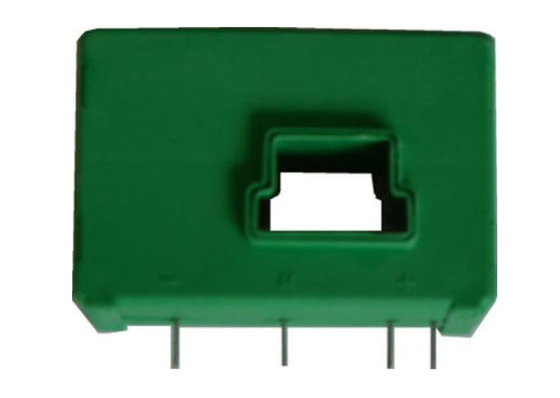

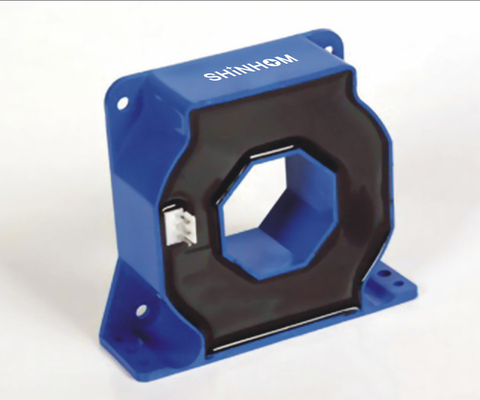

IP65 Hall Effect Current Sensor 0 to 200A for Welding Power Supplies
Features Gallery Product Description Chat Now
Features
Specifications
Supply Voltage: ±12V ~ ±15V (±5%)
Rated Input: 100A,125A,200A
Rated Output: 100mA±0.5%, 125mA±0.5%
Linearity: ≤±0.2%FS
IP Rating: IP65
Theory: Current Sensor
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HBC-LAP
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Product Description

This IP65 Hall effect current sensor is manufactured using Hall effect measurement technology and current isolation design, specifically developed for welding power supplies and battery-powered applications, ensuring high precision, stable performance, and safe protection.The product features a robust and reliable structure with current isolation between primary and secondary circuits.It is suitable for welding power supplies, AC variable frequency drives, and uninterruptible power supplies. It is an ideal choice for Hall effect current sensor applications in current measurement and industrial automation.

Features:

  • Operating currents: 0 to 200A
  • Power supply: ±12V ~ ±15V (±5%)
  • Rated output current: 100mA±0.5%, 125mA±0.5%
  • Mount easily
  • High accuracy grade

Applications:

  • Power supplies for welding applications
  • Battery supplied applications
  • AC variable speed drives and servo motor drives
  • Switched mode power supplies (SMPS)
  • Uninterrupted power supplies (UPS)
  • Static converters for DC motor drives

1. Is is positive when Ip flows in the direction of the arrow.
2. Temperature of the primary conductor should not exceed 100 ℃.
3. Dynamic performance are test with a single bar completely filling the primary hole.
4. The primary turns round on the top of the sensor to perform best magnetic clutch.

ELECTRICAL DATA:

HBC100LAP HBC125LAP HBC200LAP
Rated Current(IPN) 100 125 200 A
Measure Range(IP) 0～±200 0～±200 0～±300 A
Rated Output Current(ISN) 100±0.5% 125±0.5% 100±0.5% mA
Supply Voltage(±5%) ±12～±15 V
Supply current loss 16(@±15V)+IS mA
Test resistance with±12V @±IPNmax 14(min) 52(max) 0(min) 26(max) Ω
@±IPmax 14(min) 17(max) 0(min) 4(max) Ω
with±15V @±IPNmax 40(min) 72(max) 0(min) 56(max) Ω
@±IPmax @±300Amax 40(min) 40(max) 0(min) 8(max) Ω
Turns ratio 1:1000 1:1000 1:2000
Sec resistance 33 33 76 Ω
Offset current ≤±0.2 mA
Offset current Drift ≤±0.5 mA
Response Time ＜1 µs
Linearity ≤±0.2 %FS
Insulation voltage 50(60)HZ,1min,3 KV
di/dt ＞100 A/μs
Bandwidth(-3dB) DC…100 KHz
Operating Temperature -40～+85 ℃
Storage Temperature -40～+105 ℃

IP65 Hall Effect Current Sensor 0 to 200A for Welding Power Supplies

Notes: Product specifications can be customized

FAQ

Q: Do you provide technical support and selection recommendations?

A: Yes. We have a professional technical team that can provide selection recommendations and customisation solutions based on customer application scenarios and circuit requirements.

Q: Are samples free? How soon can I receive them?

A: Samples are free of charge and will be shipped within 3-5 working days. For specific shipping cost policies, please contact our sales team for confirmation.

Q: How do you handle quality issues if they occur?

A: We ensure product conformity through incoming quality inspection and 100% quality testing before shipment. If quality issues occur, please contact our sales team promptly. We will provide return/exchange or technical support solutions.
