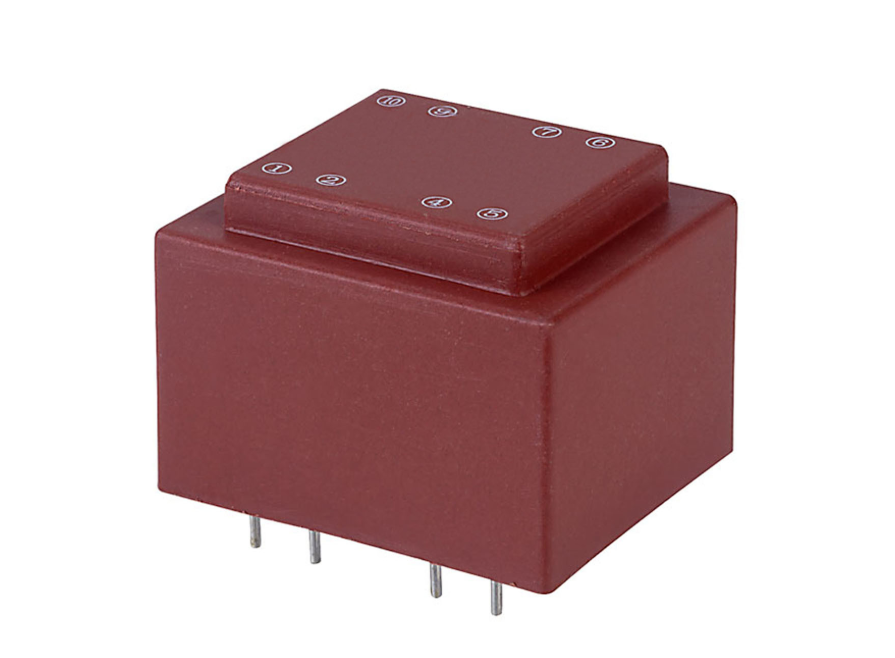

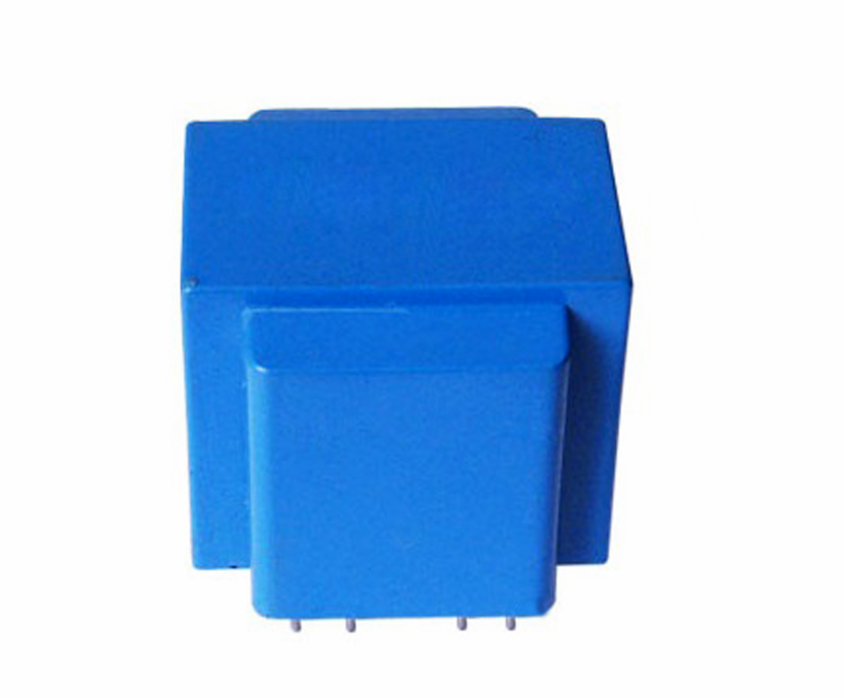

Low Frequency Encapsulated Transformer 220V Input for Surveillance Equipment

Low frequency transformer encapsulated 12v pcb transformer,Epoxy encapsulated transformers

This low-frequency potted transformer is manufactured using vacuum epoxy resin potting and high-quality silicon steel sheets, specifically designed for security surveillance equipment and power supplies, ensuring high dielectric strength, low temperature rise, high efficiency, and high reliability.The product features a robust and reliable structure using PBT engineering plastic and UL94-V0 flame-retardant material. It meets wide operating temperature requirements.It is suitable for security surveillance equipment, power supplies, and communication equipment. It is an ideal choice for low-frequency transformer applications in power conversion and electronic equipment.

Features

• Vacuum epoxy resin potting

• High-temperature ageing – 100°C for 6 hours

• Operating life – 20 years

• High dielectric strength

• High-quality silicon steel sheets – low temperature rise, high efficiency

• PBT engineering plastic, flame retardant

• Easy installation, low noise

• Dielectric strength – 4000V AC

Applications

• Security surveillance equipment

• Power supplies

• Communication equipment

• Industrial control

• Medical equipment

• Automotive electronics

• Instruments and meters

• Household appliances

Electrical specification:

1. Input voltage: 220V
2. Frequency: 50Hz
3. Load output voltage: 6-7 10V,30mA
4. 9-10 10V,30mA
5. Hi-Pot: 3600V,50Hz,10mA,2S Pri to Sec

Note: Product specifications can be customized.

FAQ

Q: What quality certifications does this product provide?

A: This product has a UL94-V0 flame retardant rating and Class B (130°C) insulation class. For other certification documents, please contact our sales team for confirmation.

Q: Do you provide technical support and selection recommendations?

A: Yes. We have a professional technical team that can provide selection recommendations and customisation solutions based on customer application scenarios and circuit requirements.

Q: Are samples free? How soon can I receive them?

A: Samples are free of charge and will be shipped within 3-5 working days. For specific shipping cost policies, please contact our sales team for confirmation.
