Ui30 Series Encapsulated Power Transformer CE CQC Certified for Power Supplies

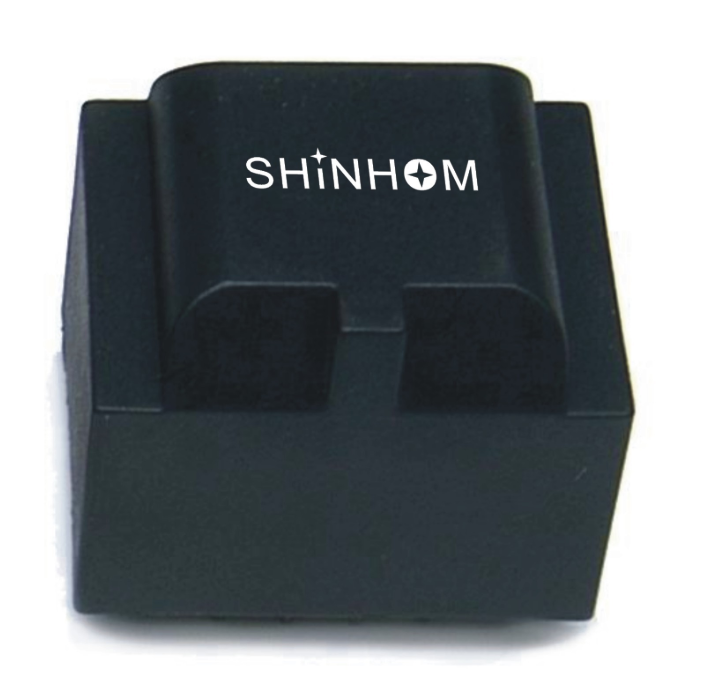

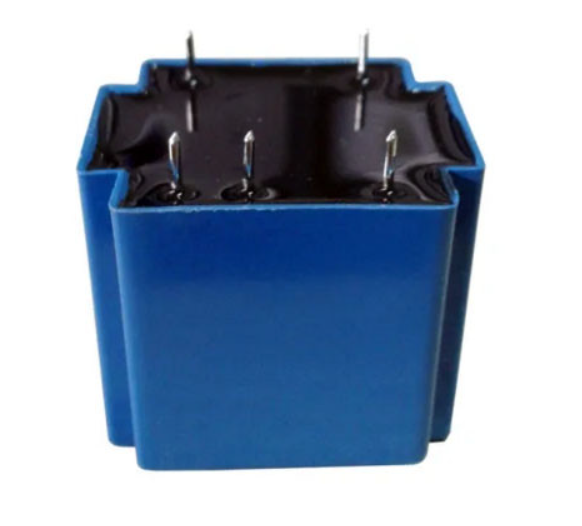

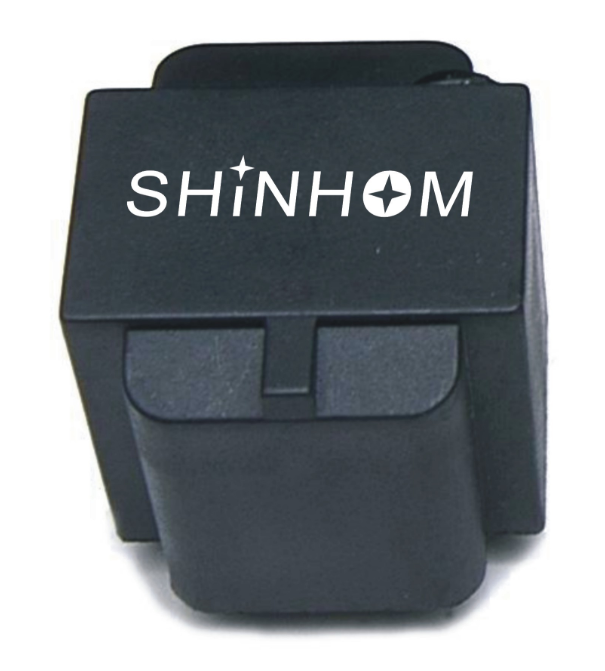

Ui30 Series Encapsulated Transformer

The Ui30 series potted power transformer is manufactured using vacuum epoxy resin potting and a self-extinguishing cast housing, specifically designed for power supplies and medical equipment, ensuring high dielectric strength, high electrical safety, and long service life.The product features a robust and reliable structure and complies with CE and CQC certification and UL94V-0 flame retardant standards.It is suitable for power supplies, medical equipment, and industrial control. It is an ideal choice for potted power transformer applications in power conversion and electronic equipment.

Features

• Dielectric strength – 4000Vrms

• Maximum ambient operating temperature – 70°C

• Insulation class – Class B (130°C)

• Capacity up to 10.0VA

• Excellent resistance to temperature fluctuations

• High electrical safety, long service life

• Self-extinguishing cast housing sealing material

• Certified product with quality inspection

Applications

• Power supplies

• Medical equipment

• Industrial control

• Communication equipment

• Test equipment

• Consumer electronics

• Instruments and meters

• Electronic equipment

TECHNICAL INFORMATION:

• Dielectric Strength-4000Vrms
• High ambient operation temperature(+70 max)
• Insulation class-class B(130 )
• Capacity up to 10.0VA
• Non short-circuit-proof at temperature class ta 40 /B and ta 70 /B

Note: Product specifications can be customized.

FAQ

Q: Does this product support customisation?

A: Yes. Parameters can be customised based on customer circuit diagrams or application requirements. Please contact our sales team to confirm the customisation plan.

Q: What is the typical lead time for mass orders?

A: Mass order lead time is generally 2-8 weeks. Custom products will be confirmed separately. The specific lead time is subject to confirmation at the time of order.

Q: Do you provide technical support and selection recommendations?

A: Yes. We have a professional technical team that can provide selection recommendations and customisation solutions based on customer application scenarios and circuit requirements.

Q: Are samples free? How soon can I receive them?

A: Samples are free of charge and will be shipped within 3-5 working days. For specific shipping cost policies, please contact our sales team for confirmation.
