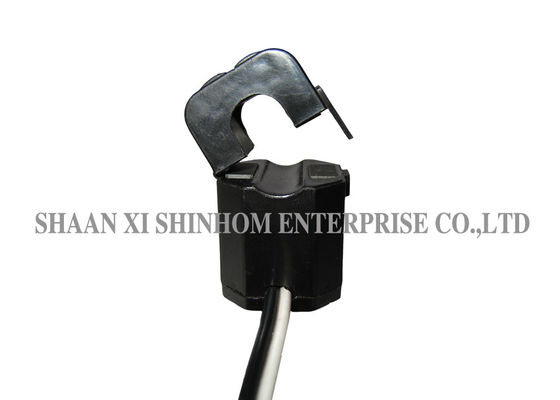

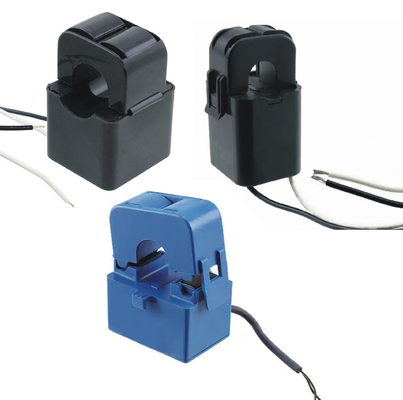

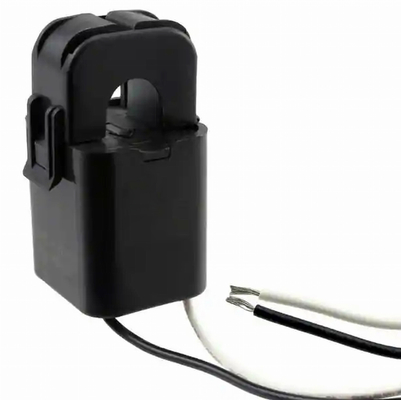

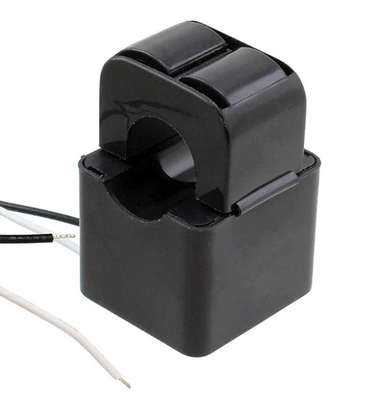

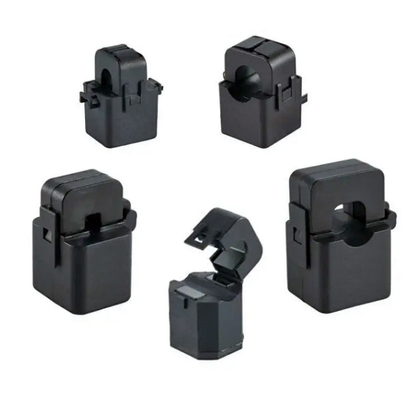

Black Split Core Current Transformer Easy Installation For Control / Load Center

5000PCS
MOQ
Negotiation
Price
Black Split Core Current Transformer Easy Installation For Control / Load Center
Features Gallery Product Description Request A Quote
Features
Specifications
Case Color: Black
Rated Input: 50A
Accuracy: 0.5
Window Size: 10mm
Output: 16.66mA
Turns Ratio: 1:3000
Highlight:

rogowski coil current transformer

,

ct current transformer
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ACST3110F
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Product Description

3000: 1 10mm hole 50A/16.66mA 0.5class Split Core Current Transformer



           ACST3110F can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation



Specifications:

  • ​Winding (Turn) : 3000 Ts
  • Max. Current : 120A
  • Rated current:   50A
  • Output Current: 16.66mA
  • Dielectric Strength :3500 Volt 50Hz for 1 minute between body & wires
  • Operating temperature :-25~+70℃
  • Storage temperature :-30~+90℃
  • General tolerance :+/-1mm
  • Primary aperture :10mm
  • Fastening : Cable tie
  • Output cable length :1.0m TYP

 Black Split Core Current Transformer Easy Installation For Control / Load Center 0
