Turns Ratio: | 1:50 1:100,1:150,1:200,1:300,1:500,1:1000 | Max. Input: | 25A |
---|---|---|---|
Encapsulation: | Epoxy | Installation: | PCB Mounting |
Insulation Voltage: | 4000V,1mA,60S | Temperature Range: | -40℃ To +125℃ |
High Light: | ct current transformer,high frequency current transformer |

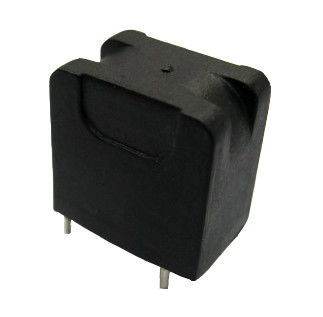

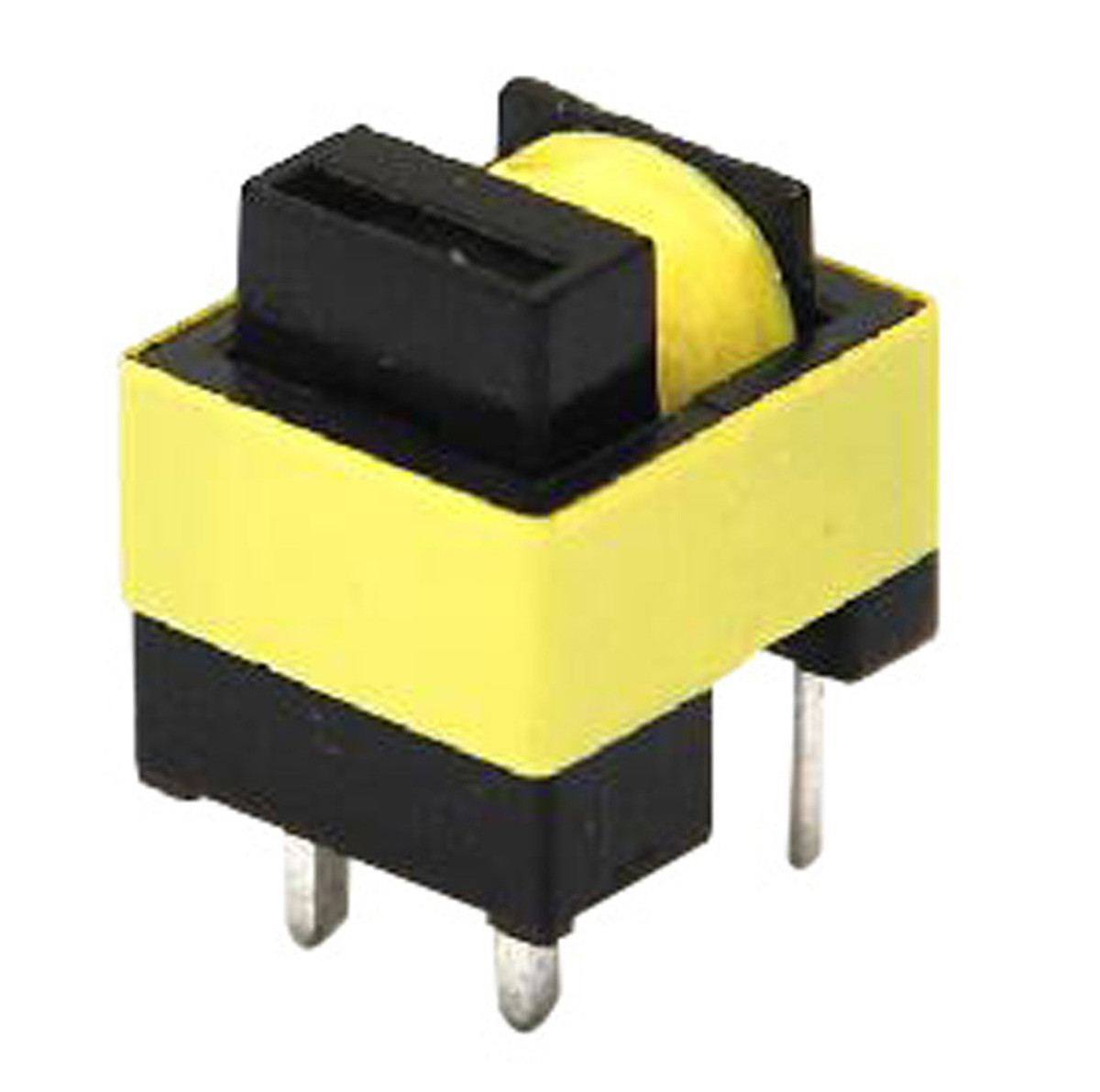

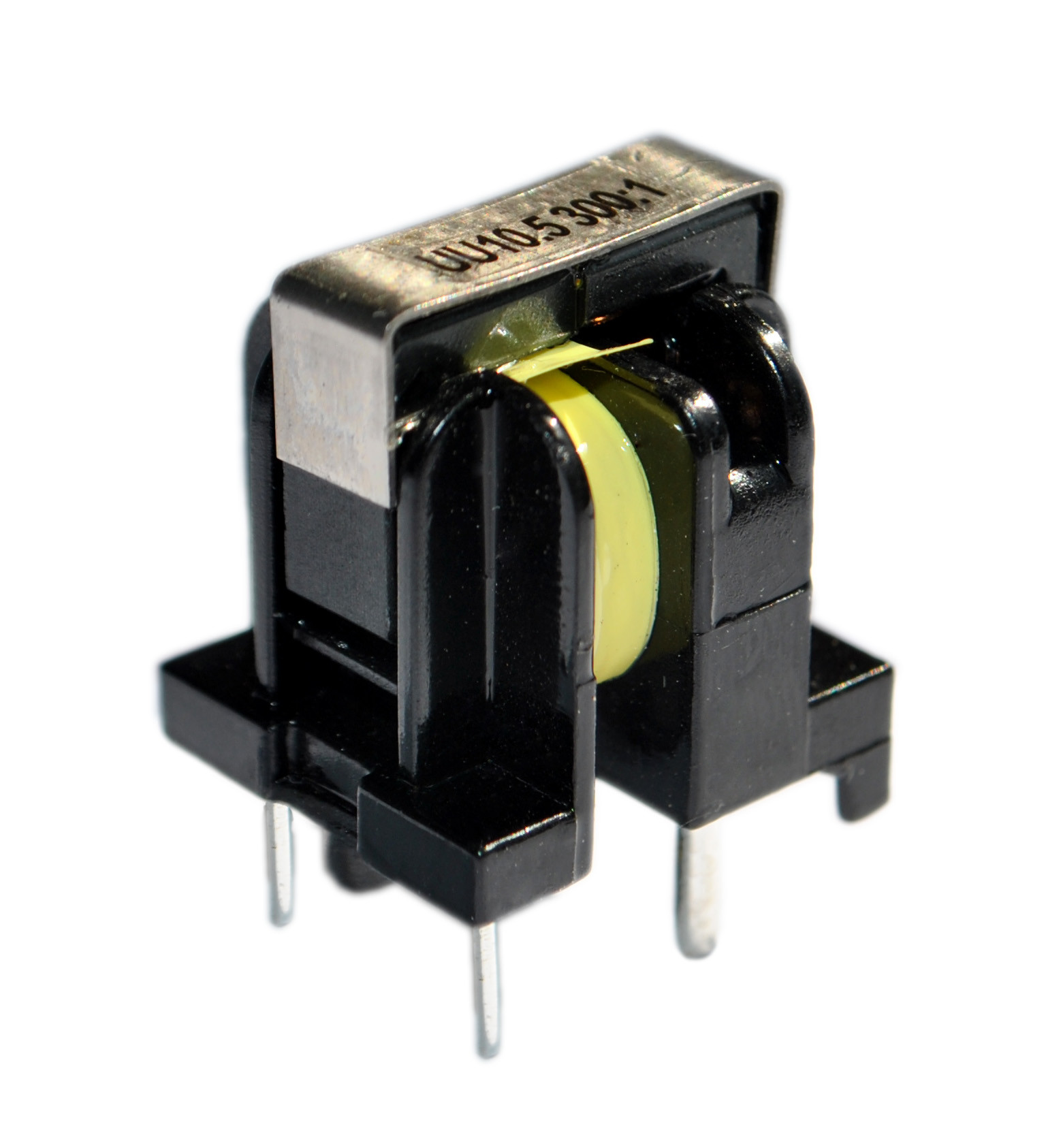

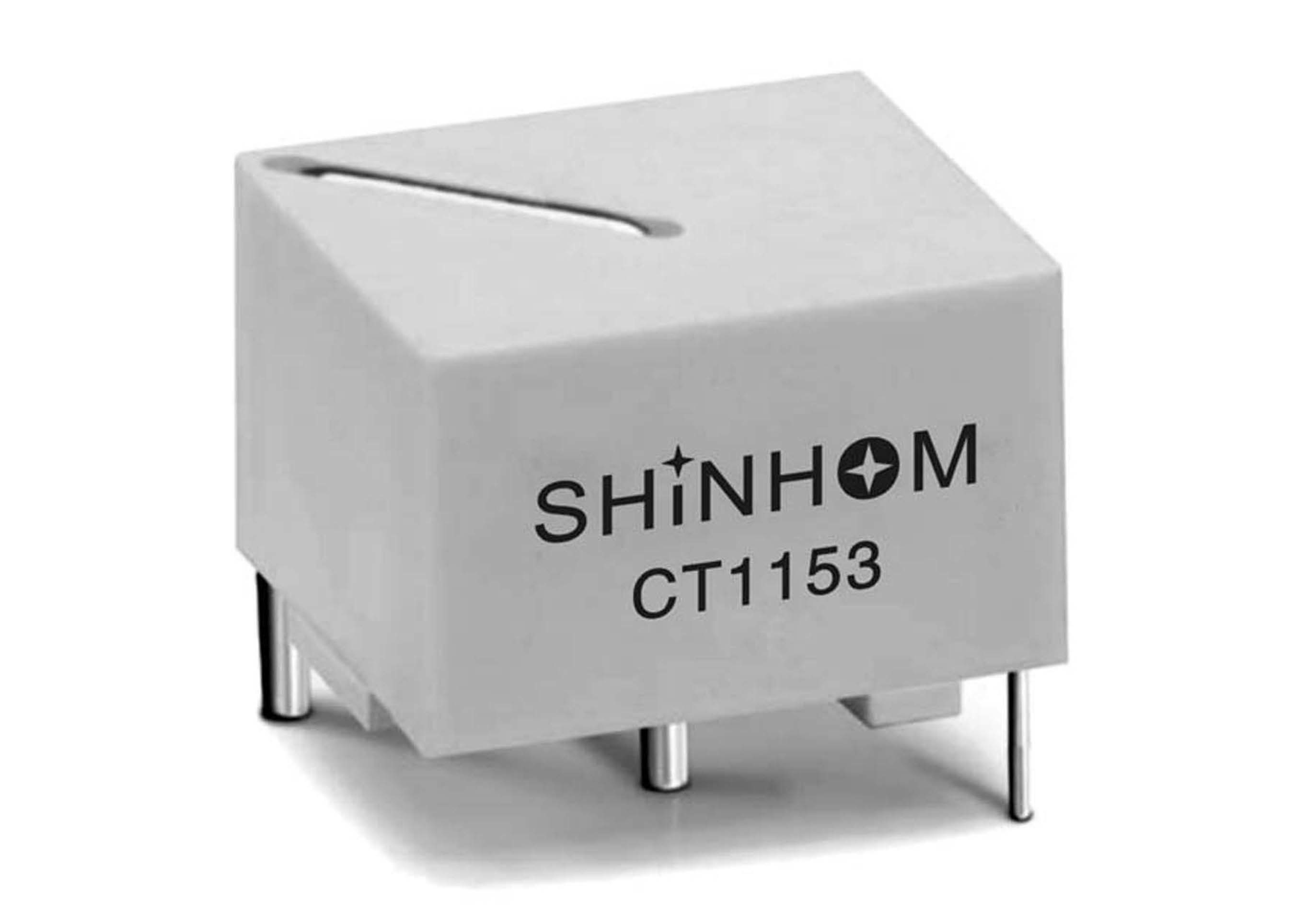

CT11 Series PCB Mounting High frequency Current Sensing Transformers with up to 25A input
FEATURES:
* High frequency current transformers for SMPS appllications
* High-permeability ferrite current transformers
* Low-profile current transformers
* PCB mount current transformers
* Reliable linear performance transformers
* Turns Ratio: 1:50 1:100,1:150,1:200,1:300,1:500,1:1000 available
* Many differennt kinds of structure and style for your selection.
* Custom-made are welcome.
* Current sense transformers provide output feedback to the pulse control circuitry allowing low-cost regulation of switch-mode power supplies
* 25A Rated primary current(40A Max)
* 500kHz maximum frequency
APPLICATIONS:
* switch-mode power supplies
* lighting
* switch controls
TECHNICAL INFORMATION:
* Insulation resistance: 500V DC >100MΩ
* Hi-Pot : 4000V 1mA 60S
* Temperature range: -40℃ to +125℃
* Storage Temperature: -40℃ to +125℃
* Resistance to soldering heat:260℃ for 10 seconds
* Marking: Part number and date code
Notes: Product specifications can be customized
