Name: Blue Hall Effect Current Sensor , Hall Effect Current Transformer PCB Mounting
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: HBC100LAHS5
Availability: InStock

Blue Hall Effect Current Sensor , Hall Effect Current Transformer PCB Mounting

Negotiation

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Supply Voltage: +5V±5%

Input: 100A

Output: ±0.625V±0.5%

Installation: PCB Mounting

Certification: CE, RoHS, ISO

Plastic Material: PBT G30/G15, UL94-V0

Highlight:

hall effect current transducer

hall effect linear current sensor

Basic Infomation

Place of Origin: China

Brand Name: Shinhom

Certification: RoHS

Model Number: HBC100LAHS5

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 4~8 Weeks

Payment Terms: T/T

Supply Ability: 1000000/MONTH

Gallery

Blue Hall Effect Current Sensor , Hall Effect Current Transformer PCB Mounting

Product Description

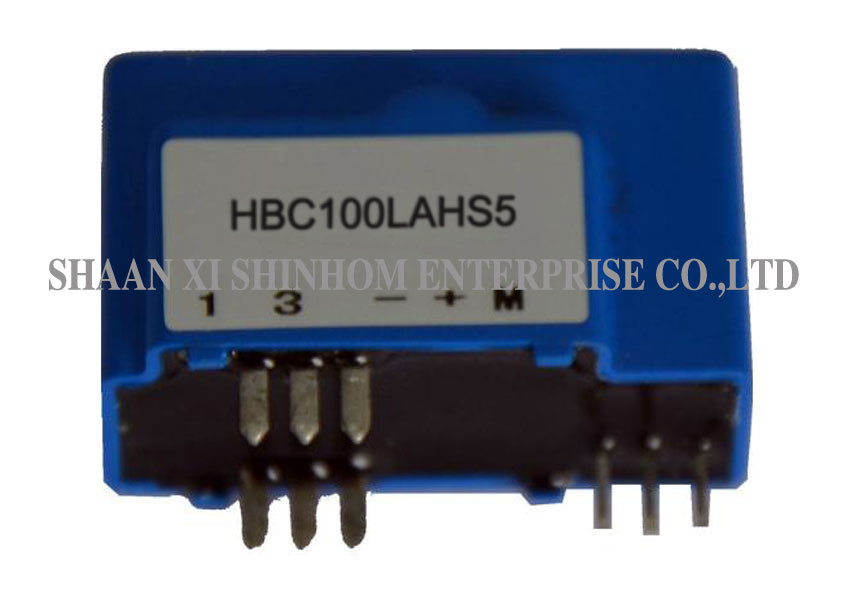

HBC100LAHS5 Hall Effect Current Sensor, Sense Transformer Transducer with 100A input,turns ratio 1:1200

HBC-100LAHS5 current sensor with a galvanic isolation between primary and secondary circuit.

The sensor provides accurate electronic measurement of DC, AC or pulsed currents.

Features:

Closed- loop
Operating currents: 0 to 100A
Power supply: +5V±5%
Rated output voltage: ±0.625V±0.5%
High accuracy grade
Mount easily

Applications:

Inverter applications
AC/DC variable-speed drive
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Photovoltaic (PV) current applications
New Energy Combiner Box Measurement
Wind Power Industry Current Detection
Electric vehicle charging equipment current sensing
Automible By-wire application
Household appliance frequency conversion
Auto air conpressor application
Hybrid battery pack current sensing
Automobile electrical power steering system application

ELECTRICAL DATA:

	HBC100LAHS5
Rated input current(Ipn)	100	A
Test current range(Ip)	±240	A
Turns ratio(Np/Ns)	1:1200	T
Rated output voltage	±0.625±0.5%	V
Supply voltage	+5±5%	V
Consumption current	20+ Ip *( Np/Ns)	mA
Offset voltage	2.5±0.4%	V
Reference voltage(VR)	2.5±0.5%	V
External reference voltage	2.0-2.8	V
Offset voltage Drift	≤±0.1	mV/℃
Output voltage Drift	≤±0.05	mV/℃
LinearityIp=0-±Ipn)	≤±0.2	%FS
Class	≤±1.0	%
di/dt	＞100	A/µS
Response time(100A/µS, 10%～90%)	≤1	µS
Bandwidth(-3db)	DC～100	KHZ
Insulation voltage(50HZ,AC,1min)	5.0	KV
Operating Temperature(TA)	-40～+85	℃
Storage Temperature(TS)	-40～+105	℃
Gross weight(M)	22	g

Blue Hall Effect Current Sensor , Hall Effect Current Transformer PCB Mounting 0

Notes: Product specifications can be customized
