Customized Hall Effect Current Transducer High Performance For Relay Protection

5000PCS
MOQ
Negotiation
Price
Customized Hall Effect Current Transducer High Performance For Relay Protection
Features Gallery Product Description Chat Now
Features
Specifications
Supply Voltage: 5V (±5%) / 12V (±5%)
Rated Input: 0A~600A
Rated Output: 0.625V ±1%
Output: Analog Sensor
Inner Window: 10.5mm*20.5mm
Customized: Yes
Highlight:

hall effect current transducer

,

hall effect linear current sensor

Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HKC-BS5/BR5
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

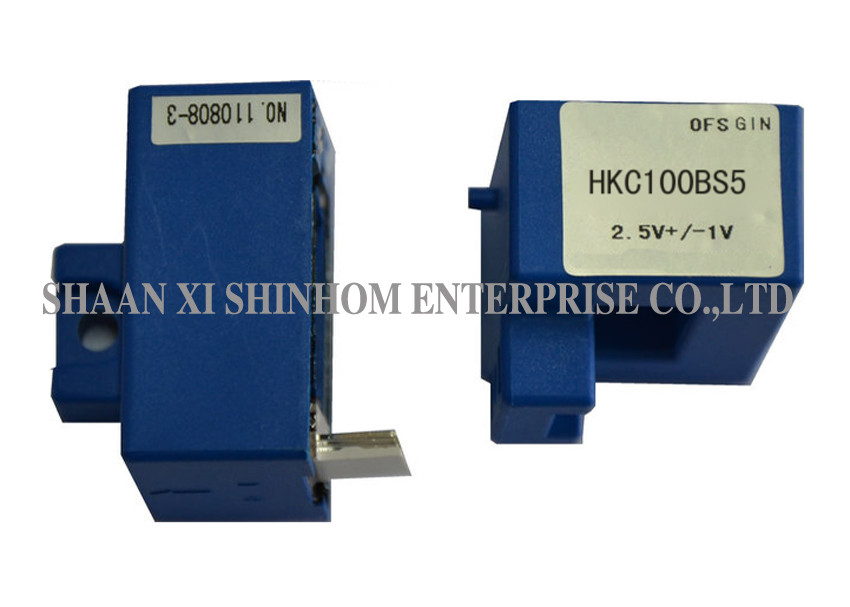

HKC-BS5/BR5 Series High Accuracy Closed Loop Hall Effect Current Sensor for Relay Protection



             HKC-BS5/BR5 series dismountable hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.



Applications:

  • Power supplies for welding applications
  • Battery supplied applications
  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Switched mode power supplies (SMPS)
  • Uninterrupted power supplies (UPS)



Directions for use

  • When the current will be measured goes through a sensor, the voltage will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
  • Custom design in the different rated input current and the output voltage are available.



ELECTRICAL DATA:



HKC50BS5/BR5    HKC100BS5/BR5    HKC200BS5/BR5   HKC300BS5/BR5    HKC400BS5/BR5    HKC500BS5/BR    HKC600BS5/BR5


Rated input current 50 100 200 300 400 500 600 A
Test current range 100 200 400 600 800 900 900 A
Rated output voltage 0.625±1% V
Zero residual voltage 2.5±0.5% V
Supply voltage +5±5%/+12±5% V
Offset voltage ≤±25 mV
Magnetic offset voltage ≤±20 ≤±15 mV
Offset voltage Drift ≤±2.0 ≤±1 mV/℃
Linearity ≤±1 %FS
Response time ≤3 μS
Insulation voltage 50HZ,1min,2.5 KV
Operating Temperature -40~+85
Storage Temperature -40~+105



Customized Hall Effect Current Transducer High Performance For Relay Protection 0



Customized Hall Effect Current Transducer High Performance For Relay Protection 1



Notes: Product specifications can be customized
