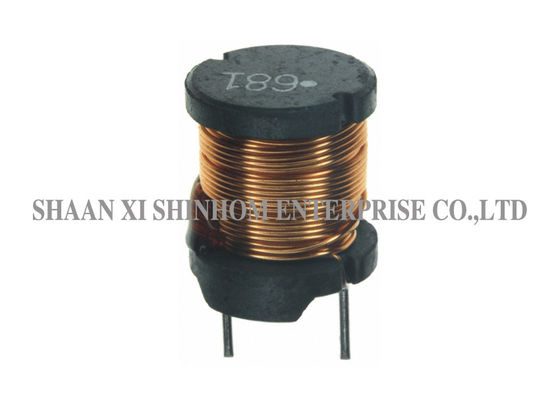

Vertical Leaded Power Inductor 2 Pin Fixed Choke Coil High Reliability

Vertical Leaded Power Inductor 2 Pin Fixed Choke Coil High Reliability
Vertical Leaded Power Inductor 2 Pin Fixed Choke Coil High Reliability Vertical Leaded Power Inductor 2 Pin Fixed Choke Coil High Reliability

Large Image :  Vertical Leaded Power Inductor 2 Pin Fixed Choke Coil High Reliability Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LCHA Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Type: Vertical Power Inductor Inductance: 10uH To 47mH
Tolerance: K=±10%,M=±20% Operating Temperature: -55℃ To +125℃
Storage Temperature: -40℃ To +105℃ Customized: Customized
High Light:

through hole inductor

,

radial type inductor

LCH Series Through hole DIP 2 Pin Fixed Choke coil,Leaded Power Inductor,Ferrite Core dip vertical type inductor



Features:

  • High-current
  • Low-resistance
  • Radial choke inductors
  • High Reliability
  • High Inductance and Lower RDC
  • Leaded inductor with ferrite core
  • Radial lead fixed inductors
  • Wire-wound Construction
  • Excellent Environmental Characteristics



Applications:

  • EMI/RFI filters.
  • DC/DC converters.
  • IP and OP devices
  • Switching power output and smoothing circuits.
  • Used as choke coil for high frequency SMPs.
  • Countermeasure against spike ripples.



Electrical specification​:

  • Testing:LCR Bridge measured @ 1KHz 0.1V HP 4284A (Equivalent acceptable)
  • RDC: QuadTech 1880 Milliohmmeter
  • IDC Max: Lowers inductance by 10%
  • Operating temperature: -55℃ to +125℃
  • Shrink tube: Flame retardant UL type VW-1

Vertical Leaded Power Inductor 2 Pin Fixed Choke Coil High Reliability 0



Vertical Leaded Power Inductor 2 Pin Fixed Choke Coil High Reliability 1



Note: Product specifications can be customized.
