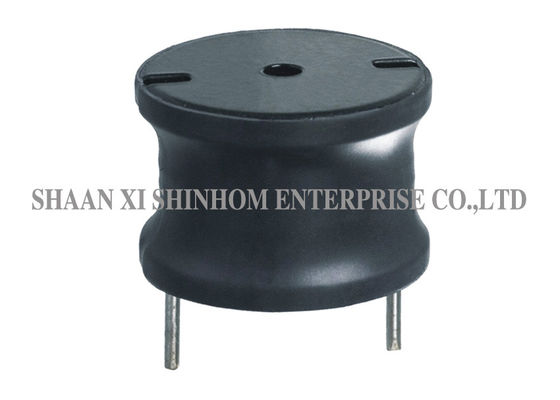

DR Type Core Through Hole Inductor High Saturation Material Stable Performance

DR Type Core Through Hole Inductor High Saturation Material Stable Performance
DR Type Core Through Hole Inductor High Saturation Material Stable Performance DR Type Core Through Hole Inductor High Saturation Material Stable Performance

Large Image :  DR Type Core Through Hole Inductor High Saturation Material Stable Performance Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AIRD Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Type: DR Core Power Choke Structure: Inductive Choke
Inductor Value: Fixed Inductor Operating Temperature: -25℃ To +105℃
Storage Temperature: -25℃ To +105℃ Customized: Customized
High Light:

through hole inductor

,

radial type inductor

AIRD Series Through hole DIP inductor,Leaded Inductor,Radial high current power chokes,DR Type core inductor



Features:

  • High current up to 27A
  • High Saturation Material
  • Polyolefin Shrink Tubing
  • Low DC Resistance
  • High Reliability Low cost



Applications:

  • Switching Regulators
  • RFI Suppression Filters
  • SCR and TRIAC Controls
  • Automotive Systems



Electrical specification​:

  • Testing: (Equivalent acceptable) lnductance:HP4284A
  • RDC:QuadTech 1880 Milliohmmeter
  • Q- HP4342A - SRF-HP4191A
  • Operating temperature: -25℃ to +105℃
  • Storage Temperature: -25℃ to +105℃
  • Rated Current L value drop10%typ.at IDC against its initial value
  • Temperature rise 40℃Max Reference ambient temperature
  • Solderability: 75% of the lead wire shall be covered
  • Soldering Methods: Wave,Reflow
  • Terminal bending strength:24.5N Min
  • Moisture resistance:△L/L≤±10% △Q/Q≤±25%



AIRD01

DR Type Core Through Hole Inductor High Saturation Material Stable Performance 0

AIRD02

DR Type Core Through Hole Inductor High Saturation Material Stable Performance 1

AIRD03

DR Type Core Through Hole Inductor High Saturation Material Stable Performance 2

AIRD04

DR Type Core Through Hole Inductor High Saturation Material Stable Performance 3

Note: Product specifications can be customized.

Tag:

leaded power inductor,

through hole inductor,

radial type inductor
