1 1 CT Flux Coupled RF Transformer 1 - 350MHz With Stable Performance

1 1 CT Flux Coupled RF Transformer 1 - 350MHz With Stable Performance
1 1 CT Flux Coupled RF Transformer 1 - 350MHz With Stable Performance 1 1 CT Flux Coupled RF Transformer 1 - 350MHz With Stable Performance 1 1 CT Flux Coupled RF Transformer 1 - 350MHz With Stable Performance

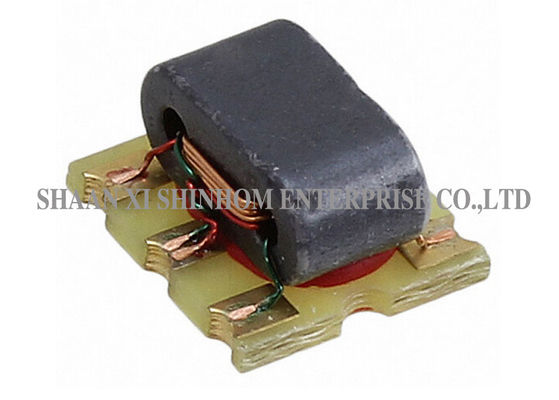

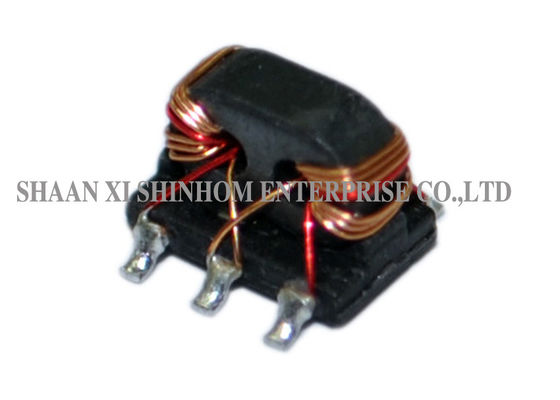

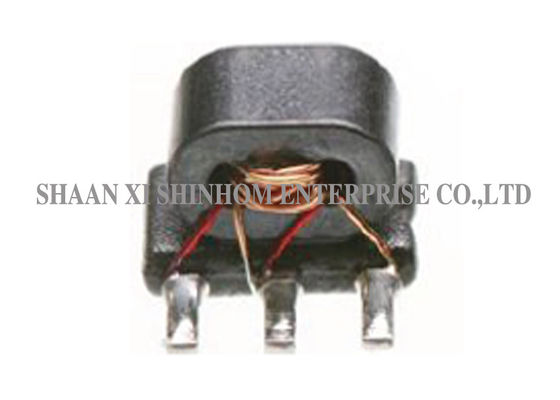

Large Image :  1 1 CT Flux Coupled RF Transformer 1 - 350MHz With Stable Performance Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: RF3S-3713
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Frequency: 1-350MHz Characteristic Impedance: 75Ω
RF Power: 0.5W DC Current: 30mA
Operating Temperature: -40℃ To 85℃ Type: SMD Balun Transformer
High Light:

rf impedance transformer

,

rf balun transformer

1: 1 CT Flux coupled transformer,RF Balun transformer,1 - 350MHz,75 Ohm Characteristic Impedance

Features:

  • 1: 1 CT Impedance
  • 75Ω Characteristic Impedance
  • RF power: 0.5W
  • DC current: 30mA
  • Frequency: 1 to 350 MHz



Applications:

  • For broadband and wireless communications
  • For VHF/UHF receivers/transmitters and push-pull amplifiers



ELECTRONICAL SPECIFICATIONS(25℃,Z=75Ω)

  • Frequency: 1-350MHz
  • Operating temperature: -40℃ to 85℃
  • Storage temperature: -55℃ to 100℃
Parameter Test Conditions Units Min Typ Max
Main line Loss(out1) 1-350MHz dB 0.5 1.5
Main line Loss(out2) 1-350MHz dB 0.4 1.5
Amplitude Balance 1-350MHz dB 0.3 ±0.5
Phase Balance 1-350MHz Degrees ±1.0 ±5.0
Input Return Loss 1-350MHz dB 15.0 25.0



1 1 CT Flux Coupled RF Transformer 1 - 350MHz With Stable Performance 0



1 1 CT Flux Coupled RF Transformer 1 - 350MHz With Stable Performance 1



1 1 CT Flux Coupled RF Transformer 1 - 350MHz With Stable Performance 2

1 1 CT Flux Coupled RF Transformer 1 - 350MHz With Stable Performance 3
