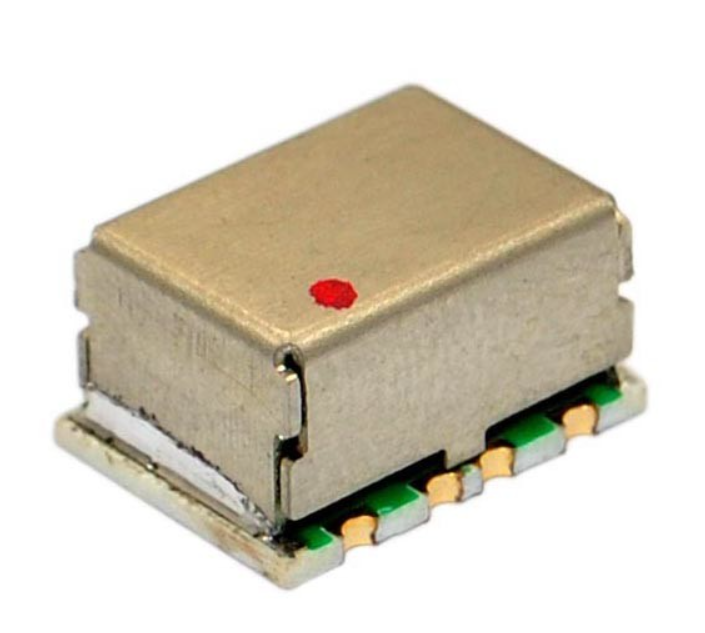

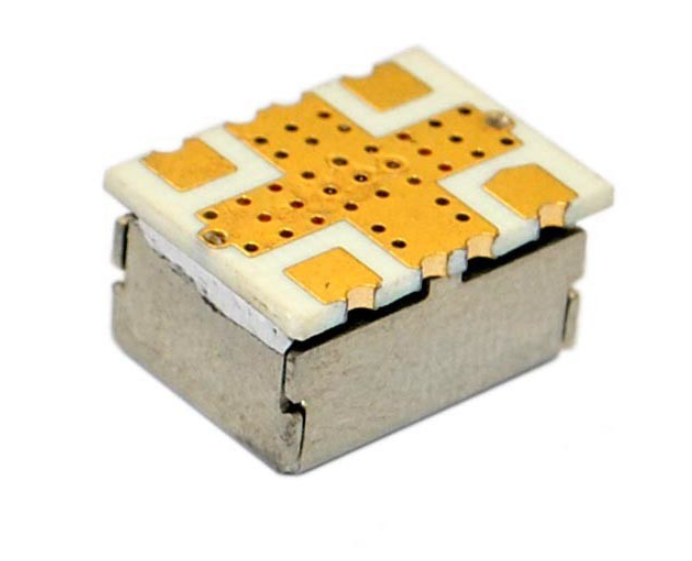

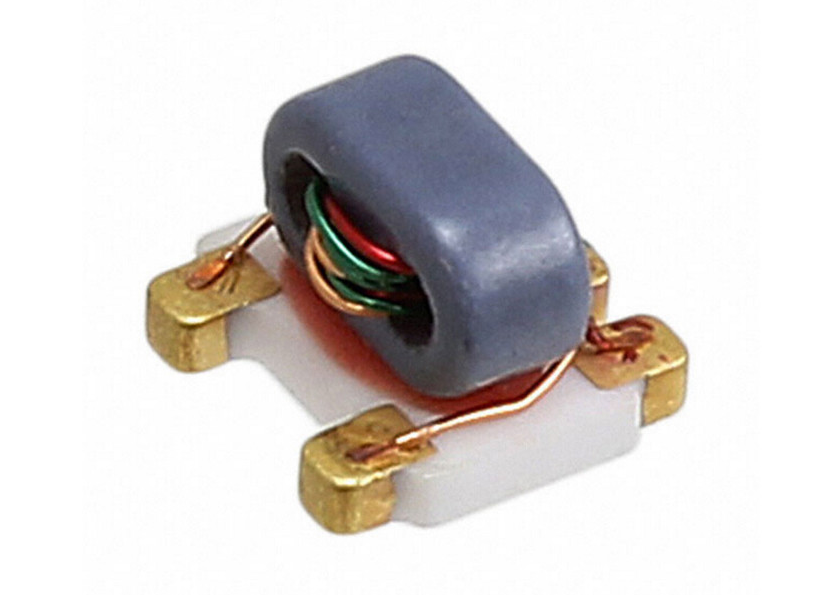

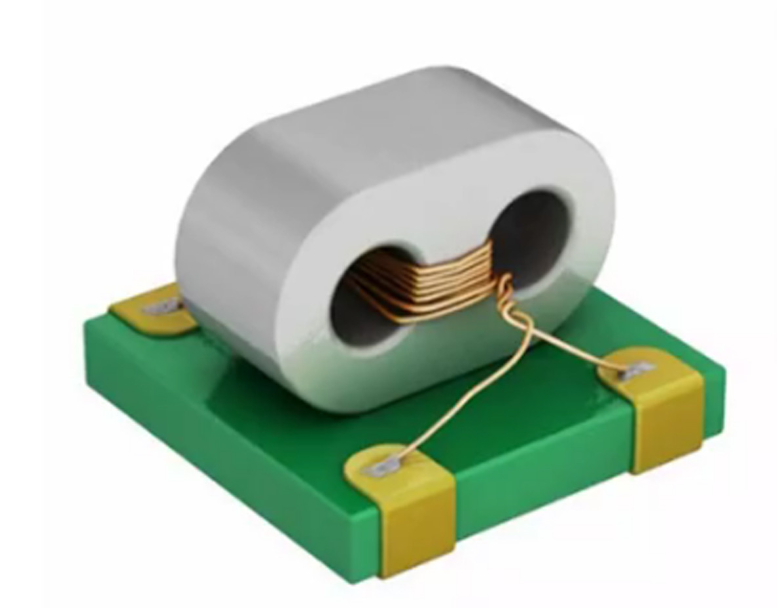

SMD Balun Transformer 1:1 Impedance for Wireless Communication

This SMD RF balun transformer is manufactured using enamelled copper wire and surface-mount base pin processes, specifically designed for broadband communication and wireless communication, ensuring 1:1 impedance matching and stable RF transmission. The product features a robust and reliable structure with an SMD surface-mount design. It meets 0.25W RF power and wide operating temperature requirements. It is suitable for broadband communication, VHF/UHF receivers, and push-pull amplifiers. It is an ideal choice for balun transformer applications in RF signal processing and wireless communication.

Features

• 1:1 impedance

• RF power – 0.25W

• DC current – 30mA

• Frequency – 5 to 600MHz

• Enamelled copper wire winding

• Surface-mount design

• Operating temperature – -40 to +85°C

• Storage temperature – -55 to +100°C

Applications

• Broadband communication

• Wireless communication

• VHF/UHF receivers

• VHF/UHF transmitters

• Push-pull amplifiers

• RF signal processing

• Communication equipment

• Wireless devices

FAQ

Q: Do you provide technical support and selection recommendations?

A: Yes. We have a professional technical team that can provide selection recommendations and customisation solutions based on customer application scenarios and circuit requirements.

Q: Are samples free? How soon can I receive them?

A: Samples are free of charge and will be shipped within 3-5 working days. For specific shipping cost policies, please contact our sales team for confirmation.

Q: Is this product in stock?

A: Standard models are usually in stock. Custom models are produced according to the lead time.

Q: How do you handle quality issues if they occur?

A: We ensure product conformity through incoming quality inspection and 100% quality testing before shipment. If quality issues occur, please contact our sales team promptly. We will provide return/exchange or technical support solutions.
