20W PCB Planar Transformer , Planar Power Transformer DC/DC Module

Name: 20W PCB Planar Transformer , Planar Power Transformer DC/DC Module
Brand: Shinhom
SKU: TP15
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (155 reviews)

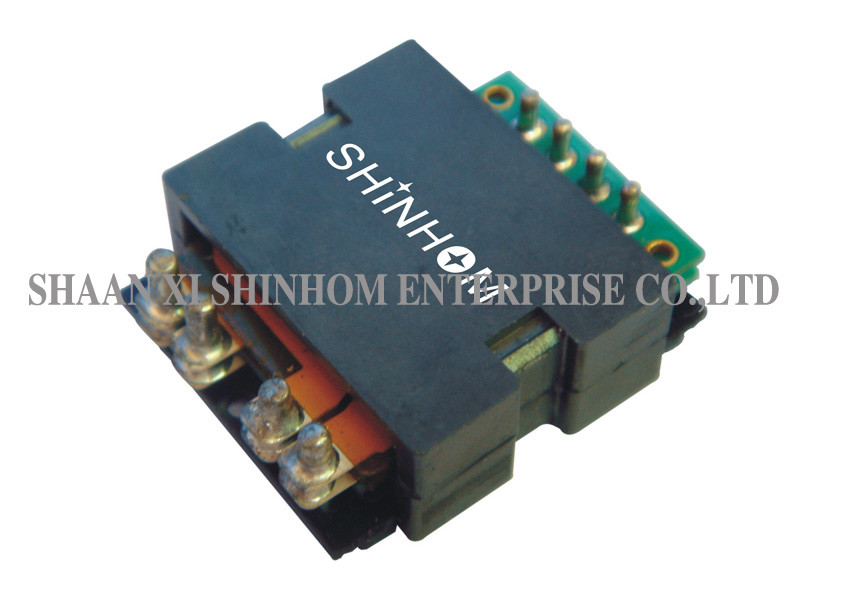

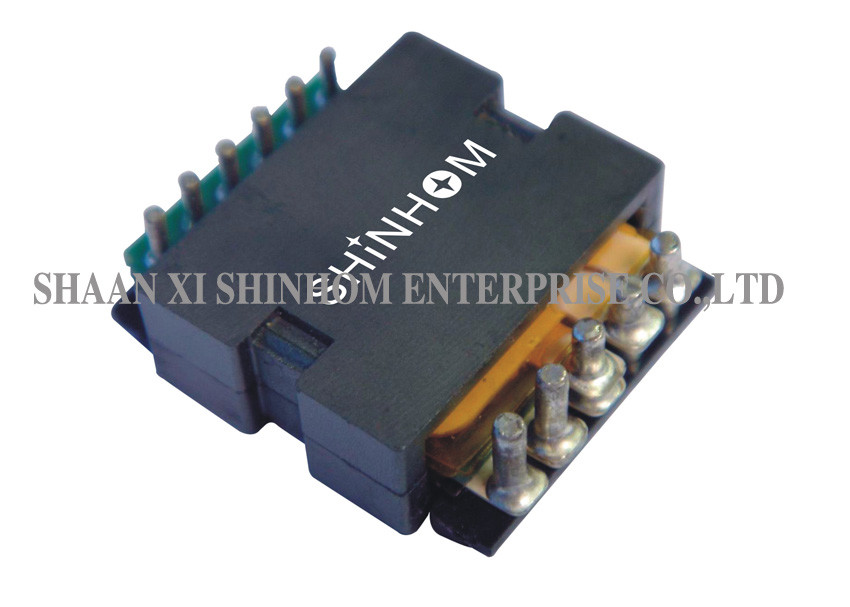

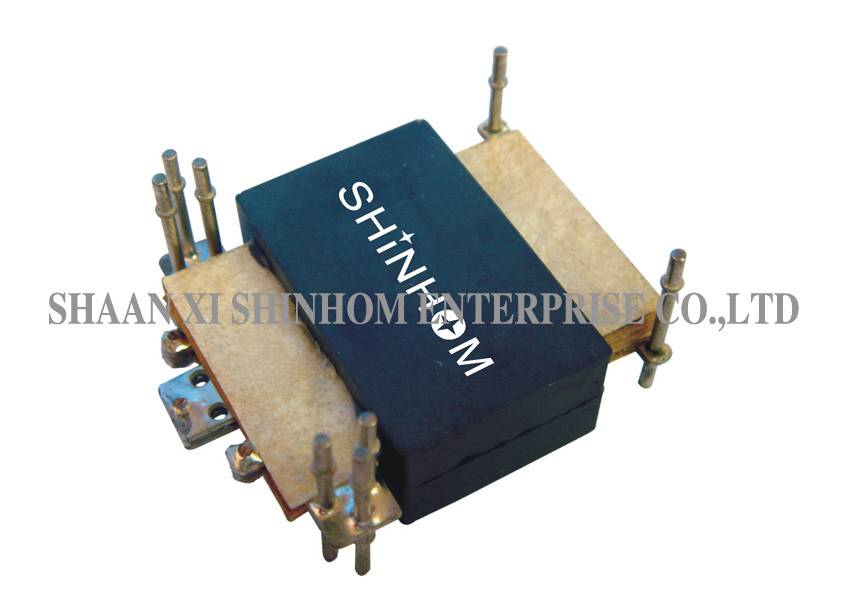

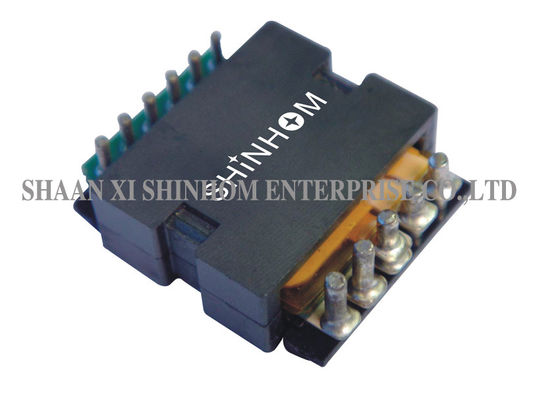

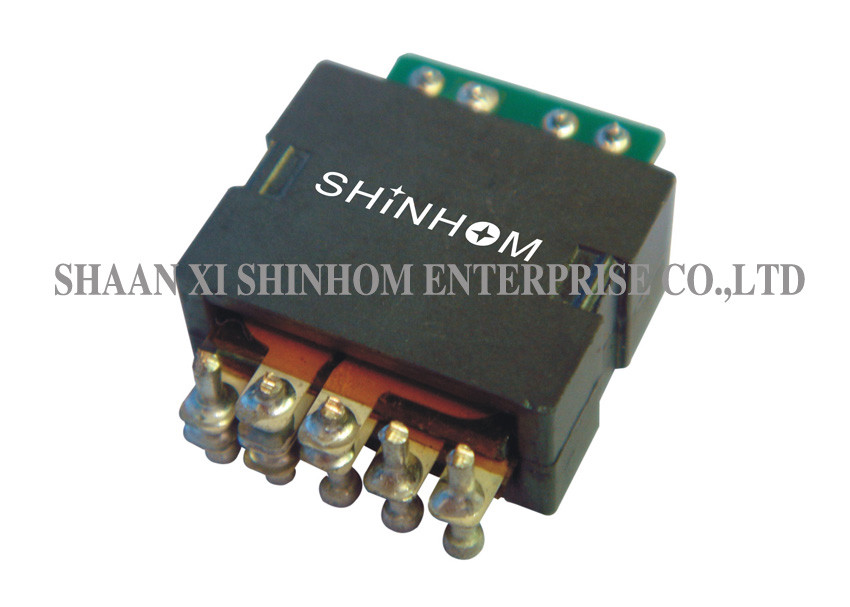

Large Image : 20W PCB Planar Transformer , Planar Power Transformer DC/DC Module Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	TP15

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	100000/MONTH

Contact Now

Detailed Product Description

Frequency:	200KHz To 350KHz	Power:	40W
Pad Size:	15.0*14.6mm	Thickness:	6.0mm
Operation Temperature:	-40℃ To +125℃	Isolation:	1500Vdc
High Light:	planar power transformer , flat pack transformer

High frequency 20W Planar Transformer,PCB Mounting Planar Transformer,DC/DC Module Power ER Series Planar Transformer

FEATURES:

PCB planar transformer
Planar switching power transformer
Off the shelf SMT planar transformer
Power Rating Up to 40 Watts
Footprint 15.0 mm×14.6 mm
Lower Profile of 6.0 mm
High Isolation (operational) 1500 Vdc
High Frequency 200 kHz-350 kHz
Operating Temperature -40℃ to +125℃
Cost effective and competitive prices.
High Creepage and Clearance distances between primary and
Applicable to all SMPS topologies.
Various mounting and terminals options (Horizontal, Vertical, Through-holes, SMT, Pins, Flying-cables and more).
Specially designed heat-dissipating Clasps.

APPLICATIONS:

High performance DC/DC converters.
High efficiencies up to over 98 percent, high power density of 400 watts per cubic inch DC/DC converters.
For forward, full-bridge, half-bridge and push-pull DC/DC converters.
Input voltages between 18V and 75V, and output voltages from 18V down to 1.2V DC/DC converters.
Telecommunications, industrial control systems,
Automotive and heavy equipment vehicle systems

20W PCB Planar Transformer , Planar Power Transformer DC/DC Module 0
