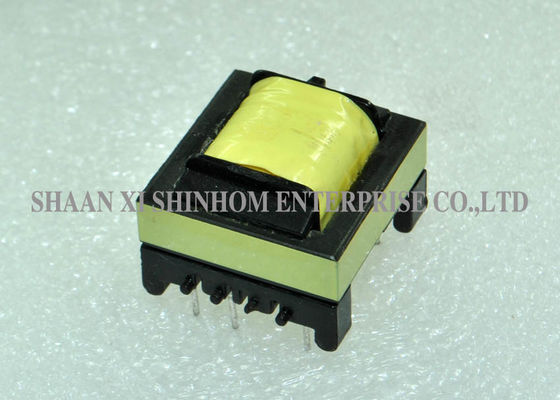

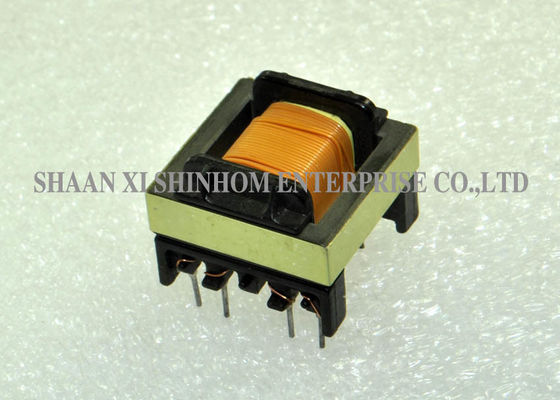

High Frequency Ferrite Core Flyback Transformer Strong Anti Interference

High Frequency Ferrite Core Flyback Transformer Strong Anti Interference
High Frequency Ferrite Core Flyback Transformer Strong Anti Interference High Frequency Ferrite Core Flyback Transformer Strong Anti Interference High Frequency Ferrite Core Flyback Transformer Strong Anti Interference High Frequency Ferrite Core Flyback Transformer Strong Anti Interference High Frequency Ferrite Core Flyback Transformer Strong Anti Interference High Frequency Ferrite Core Flyback Transformer Strong Anti Interference

Large Image :  High Frequency Ferrite Core Flyback Transformer Strong Anti Interference Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Model Number: T74080 Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Detailed Product Description
Certification: ISO9001-2000, UL, ISO9001, RoHS Operating Frequency: High Frequency
Core Material: EF/EE Ferrite Core Power: 3 ~ 650W
Product Name: Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
High Light:

high frequency isolation transformer

,

high frequency switching transformer

EE/EF Series Ferrite core Flyback Transformer, High Frequency power Transformer,12-30W,1/2/3 Output,3 to 650W

Features

  1. Operating Frequency: 30 ~ 500KHz
  2. Output Power: 0.5 ~ 10w
  3. Operating Temperature: -40ºC ~ +125ºC
  4. Storage Temperature: -25ºC + 85ºC
  5. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
  6. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

Applications

  1. DC/DC Converter Transformer
  2. Current Transformer
  3. Switching power supply, Adapter and UPS
  4. Computer products
  5. DVD
  6. LED power board
  7. LCD TV & Monitor Displays Power Boards
  8. Consumer Electric Products & Battery Charger, Printers
  9. Specially used in switching power supply and kinds of high-frequency circuit
  10. Plays a role in oscillating and separating


Reasons of our top-quality components help your business succeed:

  1. 20 years of experience customizing and power transformers
  2. Your professional and reliable partner for various electronics
  3. Over 1000 buyers value our products
  4. Our Products has the UL Insulation System, Quality is guaranteed
  5. High quality and best services
  6. More models and types are available. Welcome your spec and sample to make custom-manufacturing.


Electrical Specifications



Type Shape Structure Dimension Power range
A B C D E F
EE8.3 Vertical 10.0Max 9.5Max 8.0±0.5 2.5±0.2 3.3±0.3 5.8±0.5 3W Max
EE10 12.0Max 13.0Max 10.4±0.5 2.5±0.2 2.5±0.3 5.8±0.5 4W Max
EE13 15.0Max 14.0Max 12.2±0.5 2.5±0.2 2.5±0.3 5.8±0.5 6W Max
EE16 17.5Max 15.0Max 14.4±0.5 3.5±0.2 3.8±0.3 5.8±0.5 10W Max
EE19 22.0Max 19.0Max 15.9±0.5 4.0±0.2 4.0±0.3 5.8±0.5 15W Max
EE22 24.0Max 20.0Max 16.5±0.5 4.0±0.2 4.0±0.3 5.8±0.5 20W Max
EE25 26.5Max 22.0Max 17.2±0.5 4.0±0.2 5.0±0.3 5.8±0.5 25W Max
EE28 30.0Max 22.0Max 21.8±0.5 4.0±0.2 5.0±0.3 5.8±0.5 50W Max
EE30 32.0Max 30.0Max 28.0±0.5 4.0±0.2 5.0±0.3 5.8±0.5 145W Max
EE35 37.0Max 30.0Max 25.6±0.5 4.0±0.2 5.0±0.3 5.8±0.5 350W Max
EE40 42.0Max 33.0Max 27.9±0.5 4.0±0.2 5.0±0.3 5.8±0.5 450W Max
EE42 46.5Max 43.0Max 37.4±0.5 4.0±0.2 5.0±0.3 5.8±0.5 500W Max
EE55 57.0Max 58.0Max 42.0±0.5 4.0±0.2 5.0±0.3 5.8±0.5 650W Max



  • Power range is also suitable for horizontal transformers
  • We can design and manufacture customized part with specific requirement.

High Frequency Ferrite Core Flyback Transformer Strong Anti Interference 0



ABOUT US:
Shinhom Enterprise was founded in Xi'an China with nearly 20 years of experiencing of designing & manufacturing transformers & Coils components.
High quality, low cost and best service are what we pursuit most!
Meanwhile, the certification of ISO 9001 by SGS system was also earned.
Shinhom is to remain a specialist in designing and manufacturing high-performance transformers,power inductors, choke coils power supplies for purchasers around the world.
