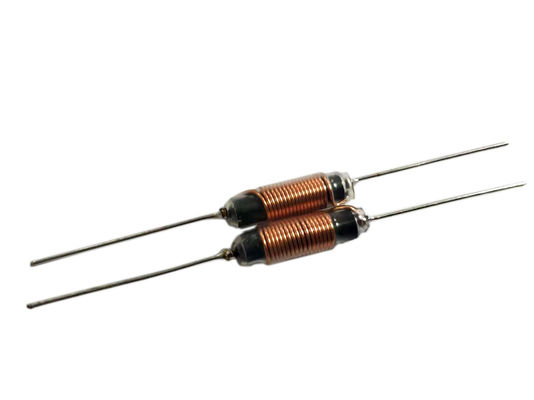

Magnetic R Bar Dip Power Inductor Ferrite Rod Unshielded Choke Coil Inductor

Negotiation
MOQ
Negotiation
Price
Magnetic R Bar Dip Power Inductor Ferrite Rod Unshielded Choke Coil Inductor
Features Gallery Product Description Request A Quote
Features
Specifications
UL Tube: Optional Heat Shrinkable Tube
Type: Rod Core Axial Hash Choke
Inductance: 3.35uH To 1mH
Tolerance: K=±10%,M=±20%
Operating Temperature: -40℃ To +105℃
Storage Temperature: -40℃ To +85℃
Highlight:

leaded power inductor

,

through hole inductor
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LCHA Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

CHA Series DIP Power Inductors Ferrite Rod Magnetic R Bar Unshielded Choke Coil Inductor,Axial hash choke





Features:

  • Wire-wound Construction
  • Narrow Design for Densely Populated Boards
  • Wide Range of Inductance Values
  • Excellent Q Values
  • High Reliability



Applications:

  • Power supplies
  • Amplifiers
  • Oscilloscopes
  • Medical Equipment
  • Converters
  • Analyzers



Electrical specification​:

  • Testing: (Equivalent acceptable)
  • HP4284A @1kHz 0.1V
  • RDC:QuadTech 1880 Milliohmmeter
  • IDC Max:Lowers inductance by 10%
  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +85℃
  • Optional Shrink tube: Flame retardant UL type VW-1



Magnetic R Bar Dip Power Inductor Ferrite Rod Unshielded Choke Coil Inductor 0





Note: Product specifications can be customized.

Tag:

leaded power inductor

through hole inductor

radial type inductor
