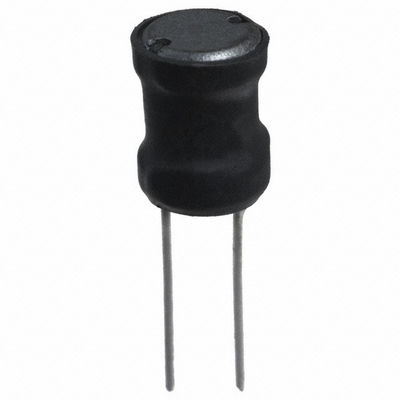

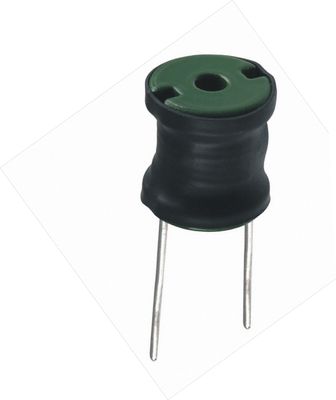

High Current Dip Power Inductor , UL Tube Radial Type Inductor Low Resistance

Negotiation
MOQ
Negotiation
Price
High Current Dip Power Inductor , UL Tube Radial Type Inductor Low Resistance
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Power Inductor
Inductance: 10uH To 47mH
Tolerance: K=±10%,M=±20%
UL Tube: UL Approved Shrinkable Tube
Operating Temperature: -55℃ To +125℃
Storage Temperature: -40℃ To +105℃
Highlight:

leaded power inductor

,

radial type inductor
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LCHB-2W Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

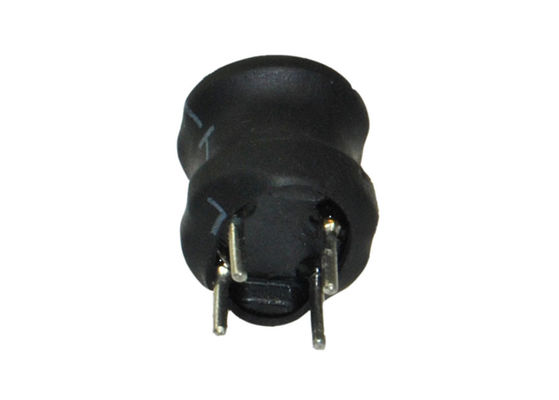

LCHB Series Through hole DIP 4 Pin Fixed Choke coil,radial ul tube power chokes,Ferrite Core dip vertical type inductor





Electrical specification​:

  • Inductnace range: 10uH to 47mH
  • Testing:LCR Bridge measured @ 1KHz 0.1V HP 4284A
  • (Equivalent acceptable)
  • RDC: QuadTech 1880 Milliohmmeter
  • IDC Max: Lowers inductance by 10%
  • Operating temperature: -55℃ to +125℃
  • Shrink tube: Flame retardant UL type VW-1



Features:

  • High-current
  • High-reliability
  • Low-resistance
  • Radial choke inductors
  • Radial lead fixed inductors
  • Wire-wound Construction
  • Polyolefin Shrink Tubing
  • Excellent Environmental Characteristics
  • High Reliability
  • High Inductance and Lower RDC
  • UL polyolefin shrinking tube
  • Leaded inductor with ferrite core



Applications:

  • Switching power output and smoothing circuits.
  • Used as choke coil for high frequency SMPs.
  • Countermeasure against spike ripples.
  • EMI/RFI filters.
  • DC/DC converters.
  • IP and OP devices



Note: Product specifications can be customized.
