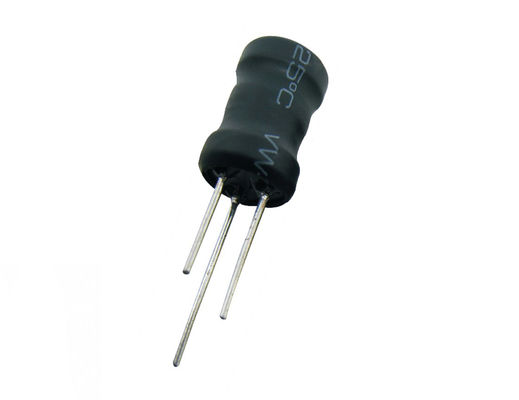

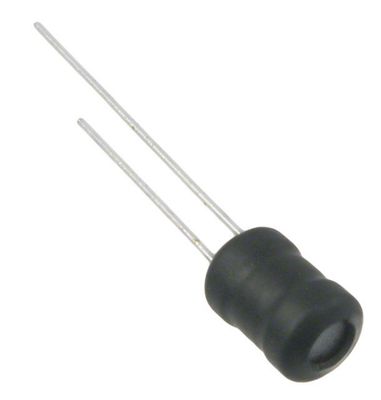

Custom Common Code Dip Power Inductor 545mH Inductance For Switching Power Supply

Name: Custom Common Code Dip Power Inductor 545mH Inductance For Switching Power Supply
Brand: Shinhom
SKU: LCHB-3W Series
Rating: 4.9 (105 reviews)

Large Image : Custom Common Code Dip Power Inductor 545mH Inductance For Switching Power Supply Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	LCHB-3W Series

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Inductance:	545mH	Tolerance:	±20%
UL Tube:	UL Approved Shrinkable Tube	Core:	Ferrite
Storage Temperature:	-25℃ To +105℃	Certification:	RoHs CE UL
High Light:	through hole inductor , radial type inductor

DIP H type filter inductor custom common code dip inductor for switching power supply

Electrical specification:

L(2-1): 670uH±20%@1.0KHz,0.1V
L(1-3): 545mH±20%@1.0KHz,0.1V
DCR(2-1): 10.8Ω Max
DCR(1-3): 480Ω Max
Operating temperature: -20℃ to +80℃Operating Temperature: -20℃~+105℃
Storage Temperature: -25℃~+85℃

Features

Large permissible D.C. current and low D.C. resistance
PVC Sleeve protects the winding
Low DC resistance and large permissible DC current with high reliability
High saturation magnetic-flux density and high efficiency
Open Magnetic circuit construction
Low cost and high reliability
Small, medium and large quantities available

Applications

For smoothing circuit of DC-DC converter, as choke coil or chopper coil
Power lines of camcorder, LCD set, OA equipment, small size communication equipment
Notebook
Inkjet printer
Copying machine
ADSL modem
Display monitor
Video tape recorder
Video camera
Color TV
Lighting and car electronics
