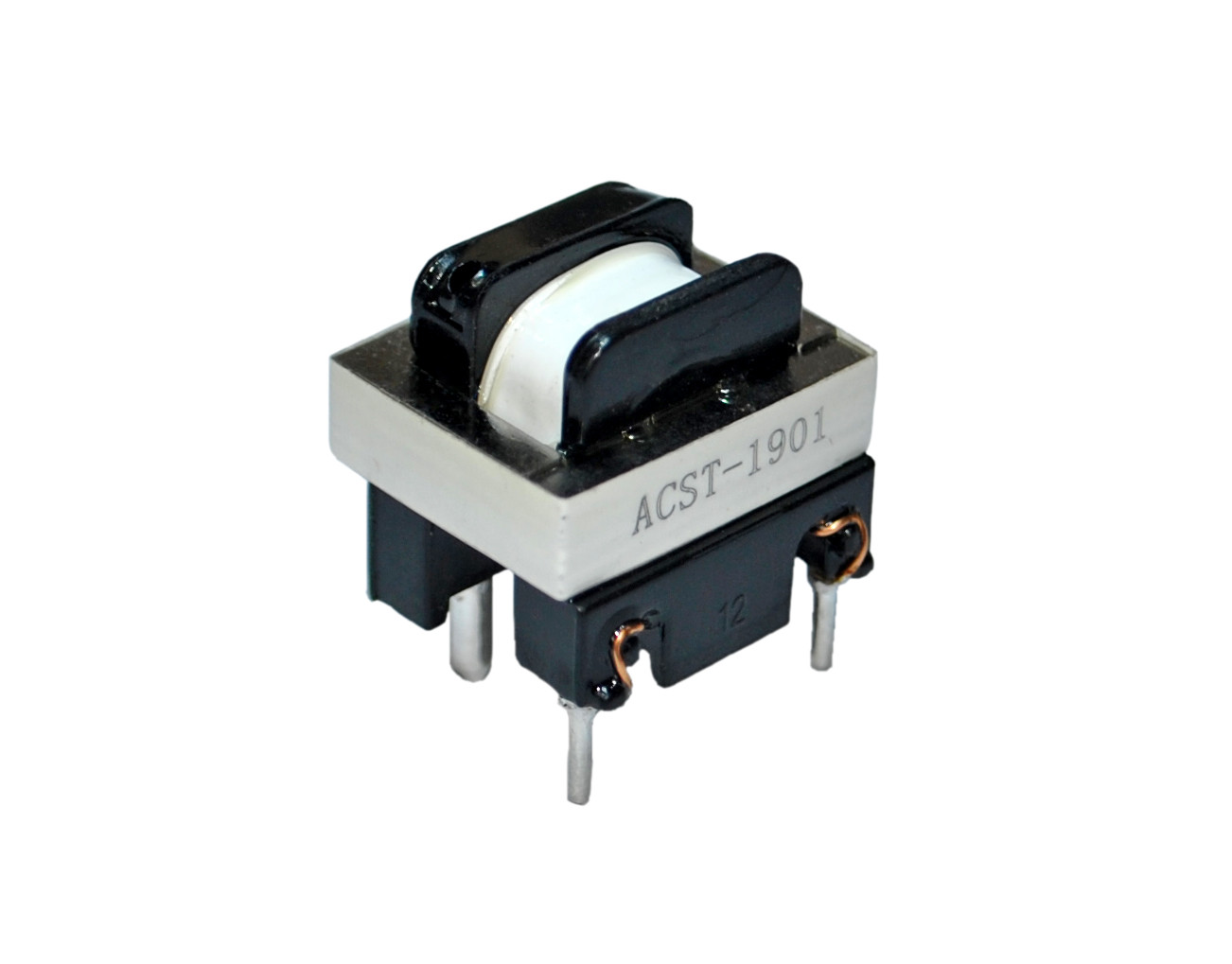

Low Profile Current Sense Transformer Stable Performance 50hz - 200hz Frequency

Low Profile Current Sense Transformer Stable Performance 50hz - 200hz Frequency
Low Profile Current Sense Transformer Stable Performance 50hz - 200hz Frequency

Large Image :  Low Profile Current Sense Transformer Stable Performance 50hz - 200hz Frequency Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ACST19XX
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Contact Now
Detailed Product Description
Installation: PCB Mounting Sec Turns: 50-1500
Input: 1-30A Frequency Range: 50Hz~200Hz
Insulation Resistance: 3000V,1mA,60S Operating Remperature: -40℃ To 70℃
High Light:

ct current transformer

,

high frequency current transformer

PCB Mounting High-frequency Current Transformers with Up to 30A Maximum Current input



FEATURES:

  1. Low profile,directly to PCB.
  2. PBT 94V0 Case burn-resistant epoxy resin,stable.
  3. Toroid high frequency current transformer
  4. Current range: up to 20A maximum
  5. Turns ratio: 1:50,1:100,1:150,1:200,1:300,1:500,1:1000,1:1500



TECHNICAL INFORMATION:

  1. Working Frequency range: 50Hz~200Hz
  2. Insulation resistance: 500V DC >100MΩ
  3. Hi-Pot : 3000V 1mA 60S
  4. Temperature range: -25℃ to +70℃
  5. Storage Temperature: -40℃℃ to +85℃℃
  6. Resistance to soldering heat:260℃ for 10 seconds
  7. Marking: Part number and date code


APPLICATIONS:

  1. Switching power output and smoothing circuits
  2. Used as choke coil for high frequency SMPs
  3. Countermeasure against spike ripples
  4. EMI/RFI filters
  5. DC/DC converters
  6. IP and OP devices



Low Profile Current Sense Transformer Stable Performance 50hz - 200hz Frequency 0

Low Profile Current Sense Transformer Stable Performance 50hz - 200hz Frequency 1

Note: Product specifications can be customized.

Tag:

ct current transformer,

high frequency current transformer,

rogowski coil current transformer
