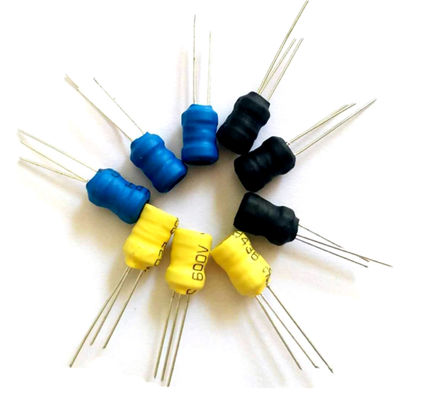

LCHB Series Dip Power Inductor UL Tube Radial Type Inductor 10uH - 47mH Inductance

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  LCHB Series Dip Power Inductor UL Tube Radial Type Inductor 10uH - 47mH Inductance Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LCHB Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
UL Tube: UL Approved Shrinkable Tube Type: Power Inductor
Inductance: 10uH To 47mH Tolerance: K=±10%,M=±20%
Operating Temperature: -55℃ To +125℃ Storage Temperature: -40℃ To +105℃
High Light:

leaded power inductor

,

through hole inductor

LCHB Series Through hole DIP 2 Pin Fixed Choke coil,radial ul tube power chokes,Ferrite Core dip vertical type inductor



Features:

  • High Reliability
  • High Inductance and Lower RDC
  • UL polyolefin shrinking tube
  • Leaded inductor with ferrite core
  • High-current
  • High-reliability
  • Low-resistance
  • Radial choke inductors
  • Radial lead fixed inductors
  • Wire-wound Construction
  • Polyolefin Shrink Tubing
  • Excellent Environmental Characteristics



Applications:

  • Switching power output and smoothing circuits.
  • Used as choke coil for high frequency SMPs.
  • Countermeasure against spike ripples.
  • EMI/RFI filters.
  • DC/DC converters.
  • IP and OP devices



Electrical specification​:

  • Testing:LCR Bridge measured @ 1KHz 0.1V HP 4284A
  • (Equivalent acceptable)
  • RDC: QuadTech 1880 Milliohmmeter
  • IDC Max: Lowers inductance by 10%
  • Operating temperature: -55℃ to +125℃
  • Shrink tube: Flame retardant UL type VW-1



LCHB Series Dip Power Inductor UL Tube Radial Type Inductor 10uH - 47mH Inductance 0





       LCHB Series Dip Power Inductor UL Tube Radial Type Inductor 10uH - 47mH Inductance 1





Note: Product specifications can be customized.
