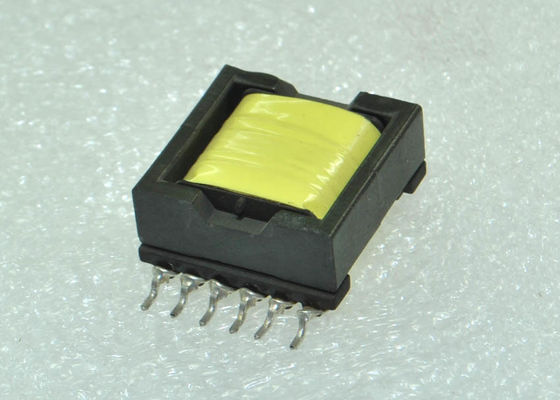

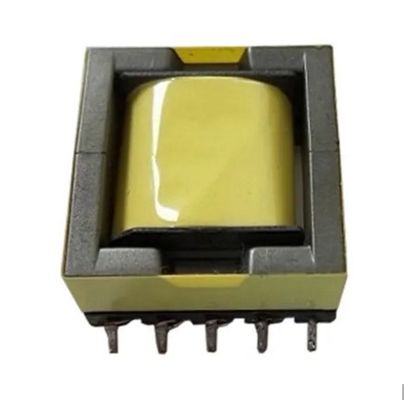

Low DC Resistance High Frequency Flyback Transformer Low Profile Small Size

Customized Factory Supplied EFD Type High Frequency Transformer Low DC Resistance High Efficiency,flyback ransformer

SMD transformer:
1. Low profile.
2. Low D.C. resistance and large permissible D.C. current.
3. Little co-planarity due to special design of construction.
4. Wire burst resistant due to special construction.
5. This can be surface mount assembly and reflow soldering is also possible.
6. Available for mounting machine due to supply in a form of embossed tape carrying.

Application:
1. Multi-output DC-DC converter transformer.
2. Camcordey.
3. LCD television set.
4. Small size communicating equipment.
5. Portable telephone.
6. Personal Digital Assistants.
7. Applicable to light up cold cathodes fluorescent lamp of display.
8. DSC, PDA, Scanner, Car Navigation, Notebook PC, LCD monitor and LCD TV.

ABOUT US:

Shinhom Enterprise was founded in Xi'an China with nearly 20 years of experiencing of designing & manufacturing transformers & Coils components.
High quality, low cost and best service are what we pursuit most!
Meanwhile, the certification of ISO 9001 by SGS system was also earned.
Shinhom is to remain a specialist in designing and manufacturing high-performance transformers,power inductors, choke coils power supplies for purchasers around the world.
