Switching Power Low Profile PCB Planar Transformer

Name: Switching Power Low Profile PCB Planar Transformer
Brand: Shinhom
SKU: TP18D
Price: 1.00 USD
Availability: InStock
Rating: 5 (118 reviews)

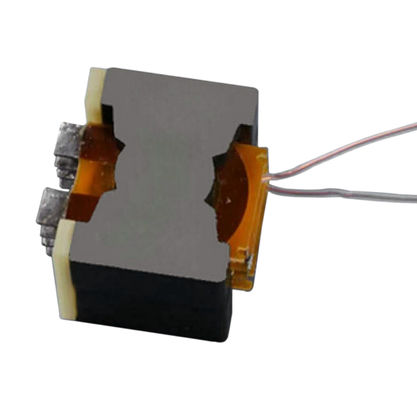

Large Image : Switching Power Low Profile PCB Planar Transformer Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	TP18D

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	100000/MONTH

Contact Now

Detailed Product Description

Type:	Planar Transformer	Frequency:	200KHz To 500KHz
Core:	Mn-Zn Ferrite	Thickness:	8.3mm
Operation Temperature:	-40℃ To +125℃	Customized:	Customized
High Light:	PCB Planar Transformer , Switching Power Planar Transformer , Low Profile Planar Transformer

Planar Switching Power Transformer , Lower Profile PCB Planar Transformers, thickness 8.3mm

FEATURES:

Power Rating Up to 50 Watts
High Efficiency of Over 98%
High Isolation (operational) 1500 Vdc
High Frequency 200 kHz-500 kHz
Operating Temperature -40℃ to +125℃
Very low Leakage Inductance (less than 0.2% for un-gapped cores).
Cost effective and competitive prices.
Minimum Electromagnetic Interference (EMI).
High Creepage and Clearance distances between primary and
Applicable to all SMPS topologies.
Various mounting and terminals options (Horizontal, Vertical, Through-holes, SMT, Pins, Flying-cables and more).
Specially designed heat-dissipating Clasps.

APPLICATIONS:

High performance DC/DC converters.
High efficiencies up to over 98 percent, high power density of 500 watts per cubic inch DC/DC converters.
For forward, full-bridge, half-bridge and push-pull DC/DC converters.
Input voltages between 18V and 75V, and output voltages from 18V down to 1.2V DC/DC converters.
Applicable to aerospace, communications, rail transportation, inverter, UPS, digital home appliances, LED lighting and other fields
