GPS Receiver RF SMD Wire Wound Ceramic Chip Inductor

GPS Receiver RF SMD Wire Wound Ceramic Chip Inductor
GPS Receiver RF SMD Wire Wound Ceramic Chip Inductor GPS Receiver RF SMD Wire Wound Ceramic Chip Inductor

Large Image :  GPS Receiver RF SMD Wire Wound Ceramic Chip Inductor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AISC Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Working Frequency: High Frequency Size: 0402/0603/0805/1008/1210/1812
Structure Of Magnetizer: RF Modules/products Type: SMD Wire Wound Ceramic Chip Inductor
Place Of Origin: China Operating Temperature: -40℃ To +125℃
High Light:

Wire Wound Ceramic Chip Inductor

,

GPS Receiver Chip Inductor

,

Wireless LAN Chip Inductor

SMD Wire Wound Ceramic Chip Inductor For RF (Radio Frequency) Modules



Features:

  • RoHS Compliant
  • Ceramic body and wire wound construction provide high SRF.
  • These ultra – compact inductors provided exceptional Q values, even at high frequencies.
  • Their ceramic construction delivers the highest possible SRF as well as excellent Q values.
  • The non-magnetic coil form also assures the utmost in thermal stability, predictability and batch consistency.



Applications:

  • RF modules/products for
  • Cellular phone,
  • GPS receiver,
  • Base Station,
  • Repeater,
  • Wireless LAN/ Mouse/ Keyboard/ earphone,
  • Remote control,
  • Security system,
  • Telecom & wireless communication
  • And other electronic devices.



Notes:

  • Tolerance:G=±2%,J=±5%,K=±10%
  • Packaging: Clear tape and reel {standard}
  • L/Q: Agilent/HP4291A+ Agilent/HP16197A
  • SRF: Agilent/HP8753D / Agilent/HP4291A
  • RDC: CH502BC/HP4338B
  • Irms for a 15°C rise above 25°C ambient.
  • Operating temperature range from -40°C to 125°C. (Including self - temperature rise)





Size Inductance range Size(mm)L*W*H
0402

1nH to 400nH(Ceramic Core)

1.2*0.6*0.6
0603 1.6nH to 390nH(Ceramic Core) 1.68*1.0*0.85
0805 2.2nH to 6.8uH(Ceramic Core) 2.2*1.6*1.3
1008 3.9nH to 200nH(Ceramic Core) 2.65*2.6*2.0
1210 3.9nH to 8.6uH(Ceramic Core) 3.35*2.7*2.1
1210F 1.2uH to 470uH(Ferrite core) 3.35*2.7*2.1
1812F

1.0uH to 1000uH(Ferrite core)

4.56*3.25*3.0

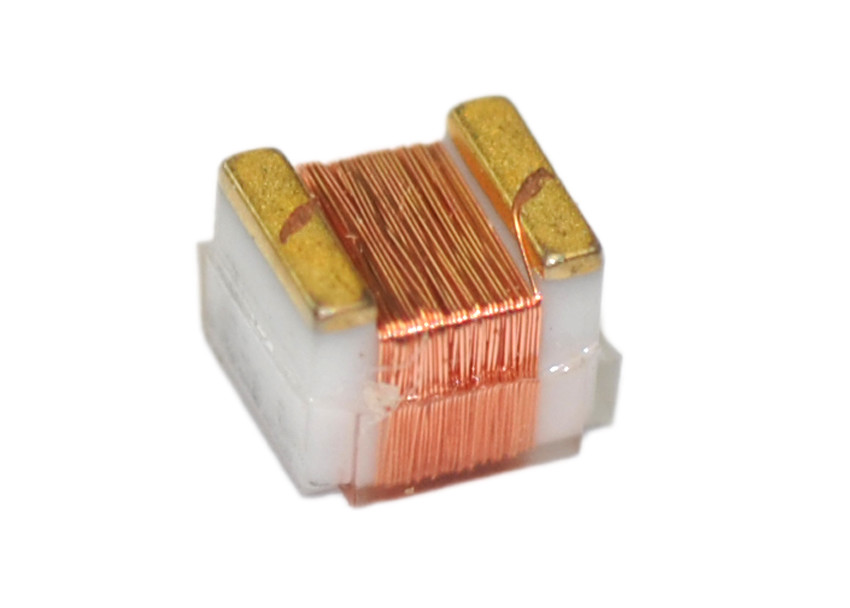

                              GPS Receiver RF SMD Wire Wound Ceramic Chip Inductor 0

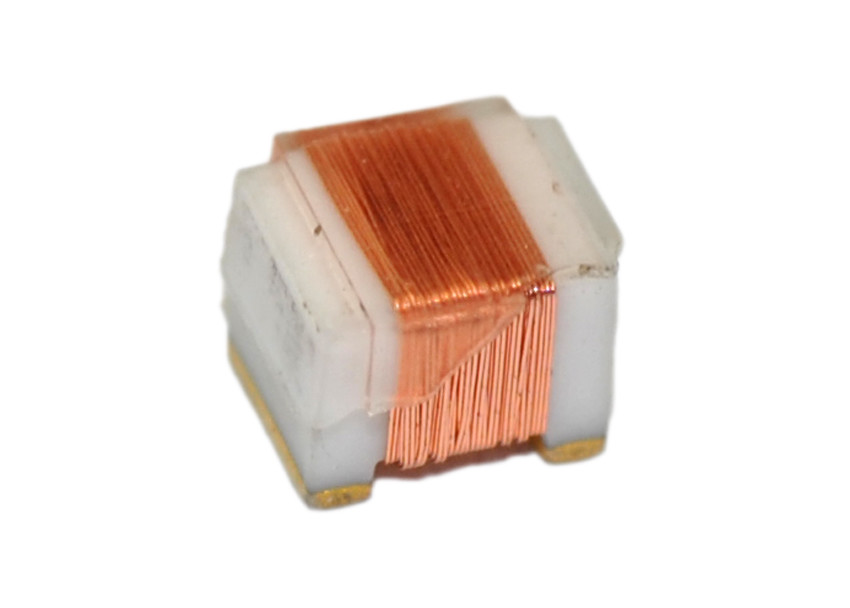

                        GPS Receiver RF SMD Wire Wound Ceramic Chip Inductor 1



Notes: Product size and inductance can be customized
