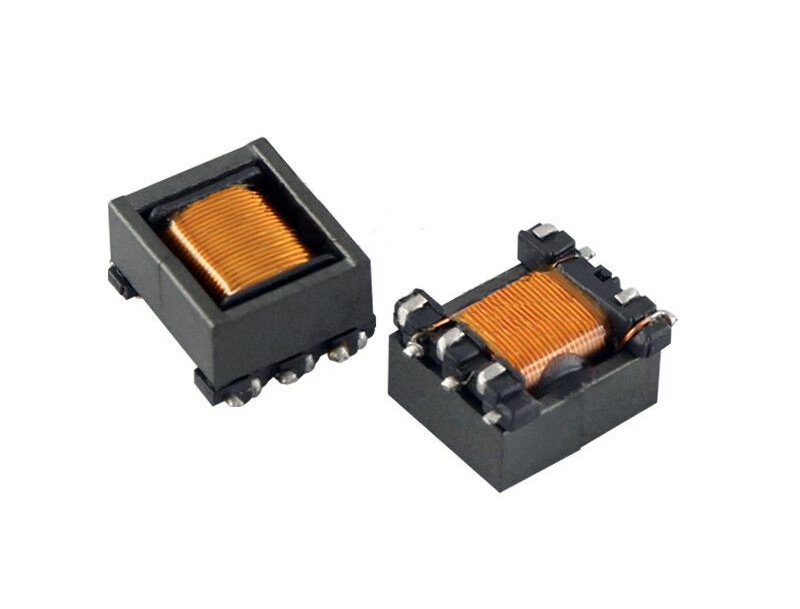

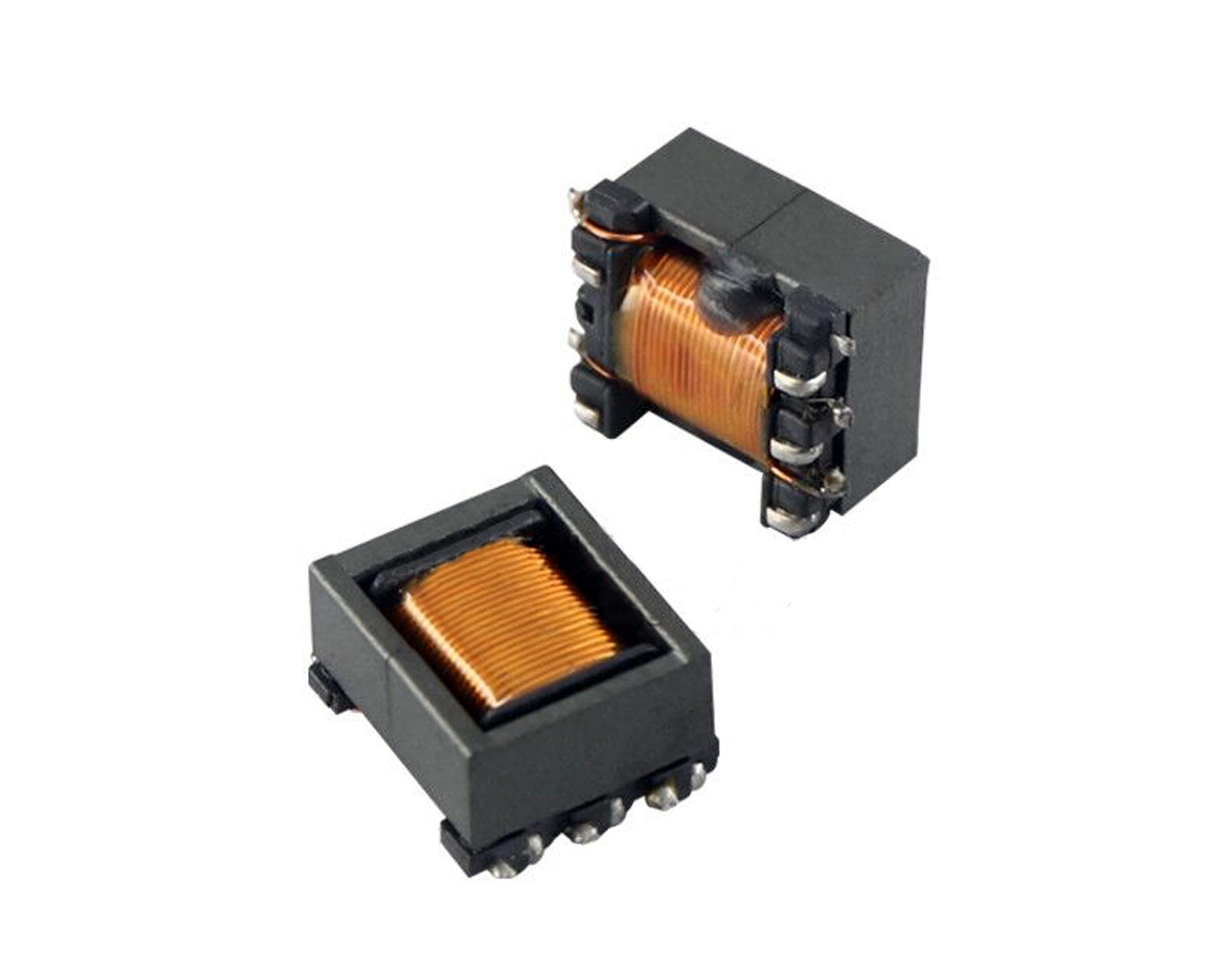

56uH 10KHz EE5.0 SMD Flash Tube Signal Transformer

56uH 10KHz EE5.0 SMD Flash Tube Signal Transformer
56uH 10KHz EE5.0 SMD Flash Tube Signal Transformer 56uH 10KHz EE5.0 SMD Flash Tube Signal Transformer

Large Image :  56uH 10KHz EE5.0 SMD Flash Tube Signal Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: STEE5 seires
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Detailed Product Description
Name: Signal Transformers Turns Ratio: 1:10
Core Material: EE5.0 Ferrite Core Operating Temperature: -25℃to+125℃
Storage Temperature: -25℃to+85℃ Customize Design: Yes
High Light:

EE5.0 Flash Tube Signal Transformer

,

EE5.0 Ferrite Core Signal Transformer

,

10KHz Signal Transformer

SMD Signal Transformers For Flash Tube Signal Transformer , EE5.0 Transformer , Turns Ratio 1:10

  1. Turns ratio: 1:10
  2. L(pri): 56uH typ. at 10KHz,0.1V
  3. L(sec): 5mH typ. at 10KHz,0.1V
  4. Operating temperature: -25 ℃to +125℃(Include temp. Rise)
  5. Storage temperature: -25 ℃to +85℃
