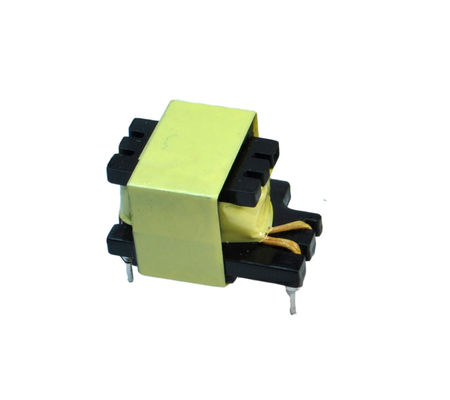

10KHz Ferrite Core UL EE1309 High Frequency Transformer

UL EE1309 High Frequency Transformer , Custom Transformer

• High-frequency transformers are power transformers whose working frequency exceeds intermediate frequency (10KHz). They are mainly used as high-frequency switching power transformers in high-frequency switching power supplies, and also used as high-frequency inverter power transformers in high-frequency inverter power supplies and welding machines.
• High-frequency transformers are devices that transform AC voltage, current and impedance. When there is AC current in the primary coil, the magnetic core will produce AC flux, so that the voltage (or current) is induced in the secondary coil.
• The transformer is composed of a magnetic core and a coil. The coil has two or more windings. The winding connected to the power source is called the primary coil, and the other windings are called the secondary coil.
• Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm structure,can fine-tune the inductance, etc., are widely used in fax machines, PBX.
• High magnetic flux and low loss magnetic materials
• With low leakage inductance and high efficiency
• UL insulation system for Class B (130), F (155), H (180)
• SMPS: Half Bridge and Full Bridge structure,can fine-tune the inductance, etc., are widely used in fax Machines, PBX.
• High-temperature resistantHigh frequency transformer -Suitable for AC/DC inverter or DC/AC converter.
• Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm
• Switching power supplies, chargers, alarm system, TV/CRT monitor displays, UPS, VCD/DVD players, audio/visual equipment, OA machines and inverter Typical products .
• Used in high-density installation with good shielding quality also used in wave carrier filter, power transformer and Aux-power transformer
• Customized designs are welcome.

ABOUT US:

Shinhom Enterprise was founded in Xi'an China with nearly 20 years of experiencing of designing & manufacturing transformers & Coils components.
High quality, low cost and best service are what we pursuit most!
Meanwhile, the certification of ISO 9001 by SGS system was also earned.
Shinhom is to remain a specialist in designing and manufacturing high-performance transformers,power inductors, choke coils power supplies for purchasers around the world.
