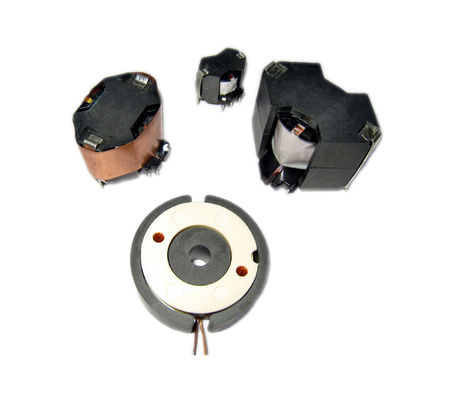

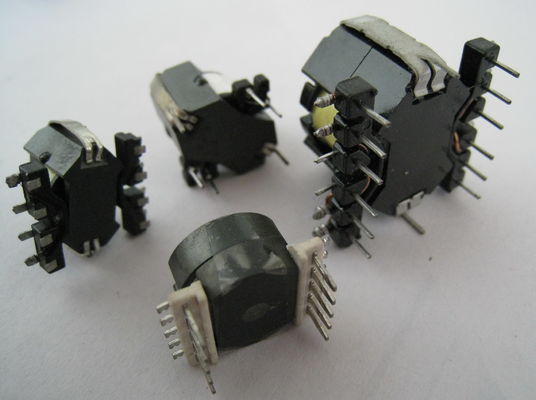

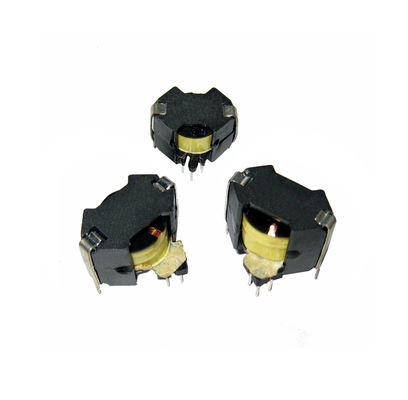

Switch Mode SMD RM Type High Frequency Transformer 500KHZ

Switch Mode SMD RM Type High Frequency Transformer 500KHZ
Switch Mode SMD RM Type High Frequency Transformer 500KHZ Switch Mode SMD RM Type High Frequency Transformer 500KHZ Switch Mode SMD RM Type High Frequency Transformer 500KHZ

Large Image :  Switch Mode SMD RM Type High Frequency Transformer 500KHZ Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRM seires
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Detailed Product Description
Core Material: Ferrite Core Operating Frequency: 10~500KHZ
Operating Temperature: -40℃to+125℃ Storage Temperature: -25℃to+85℃
Features Low Loss, Large Transmission Power, Low Temperature Rise, Stable Performance Material Ferri: Horizontal,Vertical,SMD Customize Design: Yes
High Light:

RM Type High Frequency Transformer

,

SMD High Frequency Transformer

,

High Frequency Transformer 500KHZ

RM type Switch Mode Power Supply Transformer, Custom Design High Frequency Transformer



FEATURES:
  • High saturation magnetic flux density ferrite
  • Low profile
  • Inexpensive type
  • High reliability
  • Low price
  • Cost-effective
  • High impedance and low loss
  • High conversion efficiency
  • Easily inserted into PCB
  • RoHS compliance and UL
  • Custom designs are welcome, Can specify special materials, the skeleton shape can be customized.

APPLICATION:
  • DC/DC converter transformer
  • Current transformer
  • Switching power supply, Adapter and UPS
  • Computer products
  • DVD
  • LED power board
  • LCD TV & Monitor Displays Power Boards
  • Consumer Electric Products & Battery Charger, Printers
  • Specially used in switching power supply and kinds of high-frequency circuit
  • Plays a role in oscillating and separating

SPECIFICATIONS:
  • Operating Temperature:-25°C to +60°C
  • Storage Temperature:-25°C to +85°C
  • Operating Humidity: 30 to 95%RH
  • Storage Humidity: 30 to 95%RH



ABOUT US:

Shinhom Enterprise was founded in Xi'an China with nearly 20 years of experiencing of designing & manufacturing transformers & Coils components.
High quality, low cost and best service are what we pursuit most!
Meanwhile, the certification of ISO 9001 by SGS system was also earned.
Shinhom is to remain a specialist in designing and manufacturing high-performance transformers,power inductors, choke coils power supplies for purchasers around the world.
