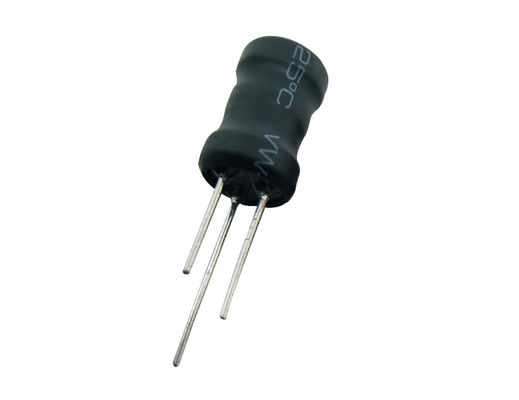

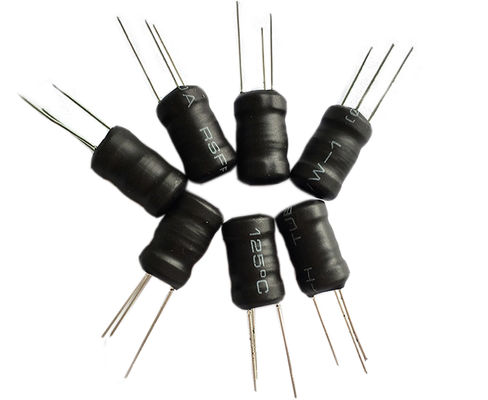

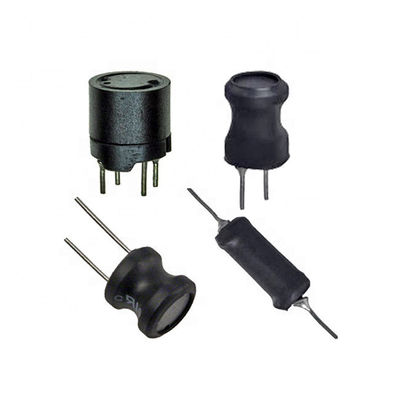

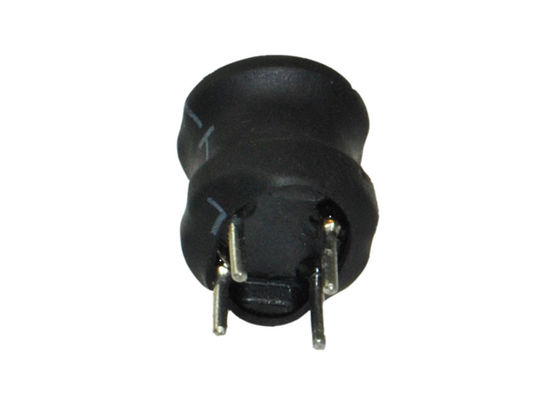

Emi Suppressor Dr Type Ferrite Core Dip Inductor Power Line Filtering

Negotiation
MOQ
Negotiation
Price
Emi Suppressor Dr Type Ferrite Core Dip Inductor Power Line Filtering
Features Gallery Product Description Request A Quote
Features
Specifications
Core: DR Type Ferrite Core
Pins: Customizable Length
Tolerance: K=±10%,M=±20%
UL Tube: UL Approved Shrinkable Tube
Operating Temperature: -55℃ To +125℃
Storage Temperature: -40℃ To +105℃
Highlight:

DR Type Ferrite Core Dip Inductor

,

Emi Suppressor Dip Inductor

,

Power Line Filtering Dip Inductor
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LCHB Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

LCHB Series DR Type Core Power Inductor , High Current Dip Power Inductor



Features:

  • High frequency and low loss
  • For excellent EMI suppressor
  • Small profile
  • Large current
  • Low resistance
  • SMT and low profile available
  • RoHS compatible (Pb free) versions available
  • Good frequency characteristic



Application:

  • Widely applied in various switching power suppliers and high frequency electronic equipment
  • Power line filtering, EMI/RFI for switch mode power supplies



Electrical specification​:

  • Testing:LCR Bridge measured @ 1KHz 0.1V HP 4284A
  • (Equivalent acceptable)
  • RDC: QuadTech 1880 Milliohmmeter
  • IDC Max: Lowers inductance by 10%
  • Operating temperature: -55℃ to +125℃
  • Shrink tube: Flame retardant UL type VW-1



Emi Suppressor Dr Type Ferrite Core Dip Inductor Power Line Filtering 0





       Emi Suppressor Dr Type Ferrite Core Dip Inductor Power Line Filtering 1





Note: Product specifications can be customized.
