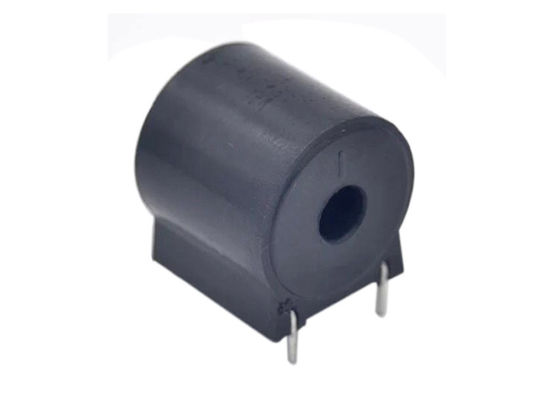

PCB Mounted 20A Current Sense Transformer Epoxy Encapsulation

PCB Mounted 20A Current Sense Transformer Epoxy Encapsulation
PCB Mounted 20A Current Sense Transformer Epoxy Encapsulation PCB Mounted 20A Current Sense Transformer Epoxy Encapsulation PCB Mounted 20A Current Sense Transformer Epoxy Encapsulation PCB Mounted 20A Current Sense Transformer Epoxy Encapsulation

Large Image :  PCB Mounted 20A Current Sense Transformer Epoxy Encapsulation Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: CT Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Detailed Product Description
Name: Current Transducer Accuracy: ±1%
Supply Voltage: ±5V Wokring Voltage: ±12V~15V (5%)
Standard: IEC60076 Certification: CE IEC RoHS
High Light:

20A Current Sense Transformer

,

Epoxy Encapsulation Current Sense Transformer

,

4500V Current Sense Transformer

Current Sense Transformer , Current Transformer , Current Sensor



        The Current Transformer is a new current sensor developed from the application of magnetic modulation principle, excellent stability in tiny currents measurement, with a highly galvanic isolation between primary and secondary circuit. Widely used in leakage monitoring systems, signaling systems and the current difference measurement etc.







Model ACST011A-20A-10mA
Rated input current 0-20A(100Ω)
Turns ratio 2000:1
Phase angle error ≤20'
(input 1A,sampling resistor 100Ω)
linear range 0~20A(sampling resistor 100Ω)
linearity 0.2%(5%dot~120%dot)
Permissible error -0.2%≤f≤+0.2%
(input 1A,sampling resistor 100Ω)
Application Current and power measurement
Isolation voltage 4500V
Encapsulation Epoxy
Installation PCB mounting(Pin length>3mm)
Operating temperature -40ºC~+85ºC






PCB Mounted 20A Current Sense Transformer Epoxy Encapsulation 0PCB Mounted 20A Current Sense Transformer Epoxy Encapsulation 1



PCB Mounted 20A Current Sense Transformer Epoxy Encapsulation 2

Notes: Product specifications can be customized
