EMI Filter Toroidal Choke Coil Leaded Inductor With Enameled Wire

Negotiation
MOQ
Negotiation
Price
EMI Filter Toroidal Choke Coil Leaded Inductor With Enameled Wire
Features Gallery Product Description Request A Quote
Features
Specifications
Wire: Enameled Wire
Inductance: Custom
Core: Ferrite Core
Test Frequency: 10kHz
Type: EMI Filter
Operating Temperature: -40ºC To +125ºC
Highlight:

Toroidal Choke Coil Leaded Inductor

,

EMI Filter Leaded Inductor

,

10kHz Ferrite Core Leaded Inductor

Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TR series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

Ferrite core inductor ,  Toroidal Choke Coil , Leaded Inductor



Components Ferrite core, Copper wire
Core NiZn/Iron /MnZn/MPP/Amorphous magnetic
Wire Enameled copper wire-UEW/PEW
Functions Power line filter/Signal line filter/Energy saving/Voltage step-up etc/Choke etc
Mounting type Surface mount ;Through hole ; Wire lead
Shape Types Vertical;Horizontal;with/without base;shielded/unshielded ;SMD
Coil Structure Toroidal
Working Frequency Range 1KHZ-100MHZ
Inductance Range 4.7uH-68mH
DCR Range unknown-Depend on customers' request
Storage Temperature -20℃ to +85℃
Working Temperature -20℃ to +105℃
Storage Humidity 30% to 95%
Test Items Ø Turns Ratio
Ø Inductance
Ø DC resistance test
Ø Safety test
Ø Current test
Ø Hi-POT
Certifications ISO9001:2008, ISO14001:2008, UL, CQC
MOQ 1000 pcs
OEM Acceptable
Sample Free
Sample Time 3-5 working days
Package EPE foam + export carton, or plastic tray+export carton
Delivery time about 15 days against deposit
Feature 5 years warranty
High current High power High efficiency
Low temperature rise
Stable performance
Applications 1. VCRS, Copy machine , Audio equipment , Game machines
2. TV sets, Microcomputer equipment, printers, Terminals
3. communications control equipment
4.Switching power supply, chargers, alarm system
5. UPS, VCD/DVD players, audio and visual equipment
6. OA machines, inverters, chargers, alarm system





Notes: Customized is available

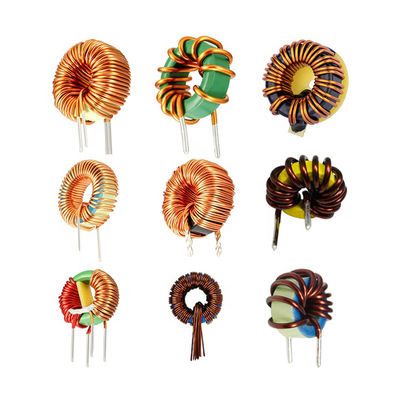

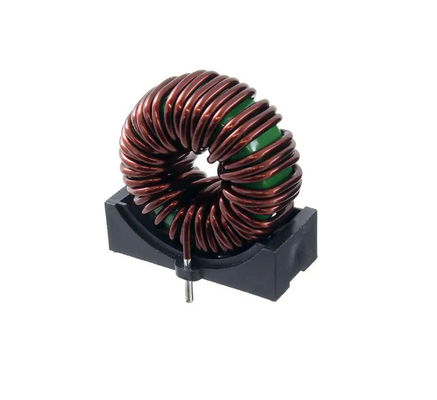

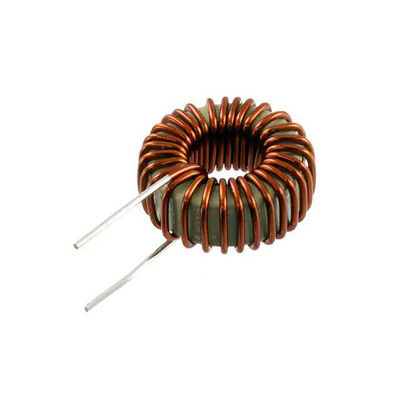

EMI Filter Toroidal Choke Coil Leaded Inductor With Enameled Wire 0EMI Filter Toroidal Choke Coil Leaded Inductor With Enameled Wire 1
