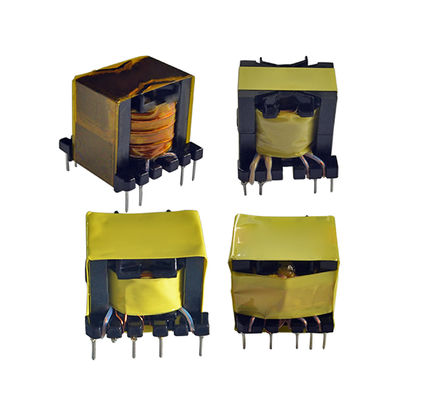

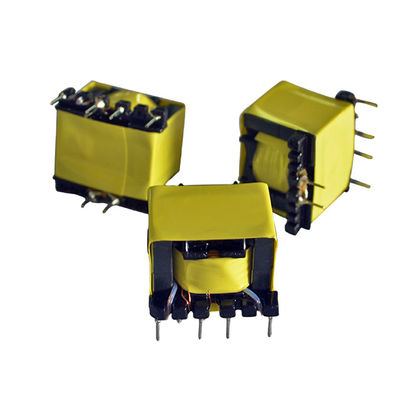

PQ32 PQ26 PMC Ferrite Core Flyback Transformer For DSC

PQ32 PQ26 PMC Ferrite Core Flyback Transformer For DSC
PQ32 PQ26 PMC Ferrite Core Flyback Transformer For DSC PQ32 PQ26 PMC Ferrite Core Flyback Transformer For DSC

Large Image :  PQ32 PQ26 PMC Ferrite Core Flyback Transformer For DSC Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: PQ Seiries
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Usage: High Frequency Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio, Charger, Lamp, Communication Equipment
Insulation: UL Insulation System For Class B (130), F (155), H (180) Product Name: Power Transformer
Certification: ISO9001-2000, UL, ISO9001, CCC, CE Operating Temperature: -25℃to+125℃
High Light:

PMC Ferrite Core Flyback Transformer

,

DSC Ferrite Core Flyback Transformer

,

LED Driving Ferrite Core Flyback Transformer

PQ Transformer , Custom-Made Flyback Transformer, Power Supply Transformer , High Frequency Transformer



        Power transformer is an electrical appliance that transmits electric energy or signals from one circuit to another by using the principle of electromagnetic induction The amount of electrical energy delivered is determined by the power of the consumer. According to the cooling mode: dry type (self cooling) transformer, oil immersed (self cooling) transformer, fluoride (evaporative cooling) transformer. According to the dampproof way classification: open transformer, potted transformer, sealed transformer. According to the structure of iron core or coil: core transformer (insert core, C-type core, ferrite core), shell type transformer (insert core, C-type core, ferrite core), ring type transformer, metal foil transformer. According to the power supply phase number classification: single-phase transformer, three-phase transformer, multi-phase transformer.





Parts name
Customized PQ32, PQ26transformer
Type
Core
Ferrite
ZP4A/DMR44
Bobbin
Phenolic molding compound(PMC)
T375 HF/PM-9823
Insulation tape
Polyethylene terephthalate film insulating tape
yellow color, rated 130℃.
Wire
Polyurethane magnet wire
UEW/155
Teflon tube
Polytetrafluoroethylene(PTFE) not-heat-shrinkable tubing
WF
Varnish
Varnish
TVB2180T
Solder
Pb free solder
Sn99.3 Cu 0.7
Short ring
Copper foil
T: 0.05mm W:10mm







Applications:

  • Switching power supplies
  • LED Driving
  • DC/AC-DC converters
  • DC/AC-AC inverters
  • Ballasts
  • TV/monitors
  • ADSL
  • Audio visual equipment
  • Office automation
  • PDAs
  • Notebook computers
  • DSC
  • TFT-LCD monitors
  • ISDN
  • Various electronic equipment
  • Ultra-thin electronic devices
  • Customers' specifications are welcome




Features:

  • Low profile small package light weight.
  • Low D.C. resistance and large permissible D.C. current.
  • Little co-planarity due to special design of construction.
  • Wire burst resistant due to special construction.
  • This can be surface mount assembly and reflow soldering is also possible.
  • Available for mounting machine due to supply in a form of embossed tape carrying.





Materials list:

PQ32 PQ26 PMC Ferrite Core Flyback Transformer For DSC 0






PQ32 PQ26 PMC Ferrite Core Flyback Transformer For DSC 1
