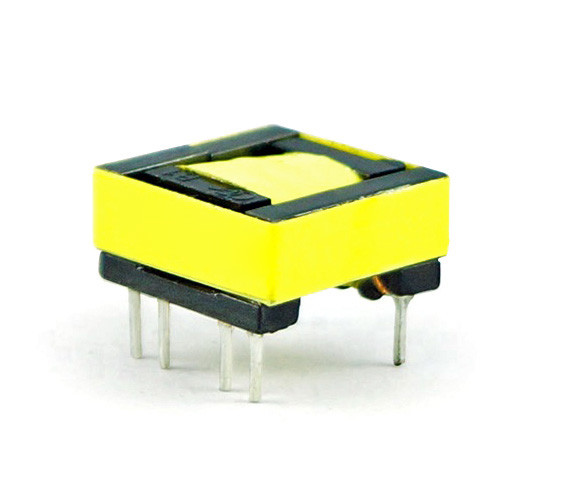

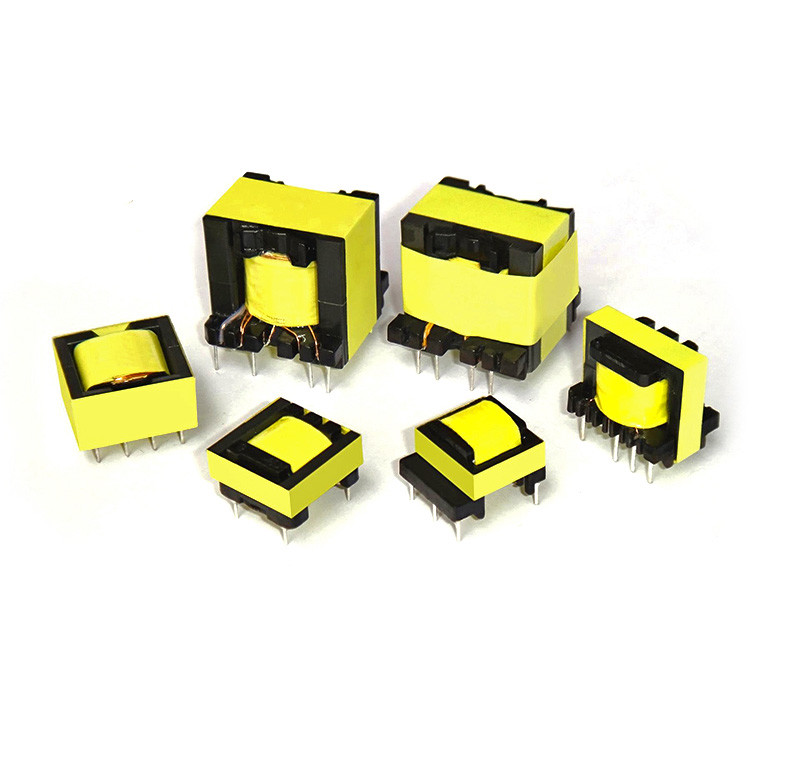

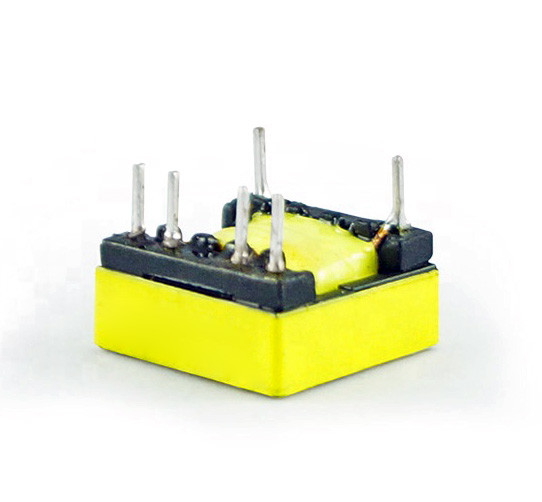

20kHZ High Frequency Transformer Flyback Ferrite Core Transformer

20kHZ High Frequency Transformer Flyback Ferrite Core Transformer
20kHZ High Frequency Transformer Flyback Ferrite Core Transformer 20kHZ High Frequency Transformer Flyback Ferrite Core Transformer 20kHZ High Frequency Transformer Flyback Ferrite Core Transformer

Large Image :  20kHZ High Frequency Transformer Flyback Ferrite Core Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: Transformer Seiries
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Usage: High Frequency Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio, Charger, Lamp, Communication Equipment
Insulation: UL Insulation System For Class B (130), F (155), H (180) Product Name: Flyback Transformer
Certification: ISO9001-2000, UL, ISO9001, CCC, CE Operating Temperature: -25℃to+125℃
High Light:

20kHZ High Frequency Transformer

,

Flyback Ferrite Core Transformer

,

UL Insulation Ferrite Core Transformer

Custom-Made Flyback Transformer, Power Supply Transformer , High Frequency Transformer



        Power transformer is an electrical appliance that transmits electric energy or signals from one circuit to another by using the principle of electromagnetic induction The amount of electrical energy delivered is determined by the power of the consumer. According to the cooling mode: dry type (self cooling) transformer, oil immersed (self cooling) transformer, fluoride (evaporative cooling) transformer. According to the dampproof way classification: open transformer, potted transformer, sealed transformer. According to the structure of iron core or coil: core transformer (insert core, C-type core, ferrite core), shell type transformer (insert core, C-type core, ferrite core), ring type transformer, metal foil transformer. According to the power supply phase number classification: single-phase transformer, three-phase transformer, multi-phase transformer.





Feature:

  • Input Voltage: AC 100---240V ;50/60Hz to be customized
  • High quality and Competitive price
  • Good after-sale service
  • High-temperature resistant
  • Supply samples free with short delivery time
  • High efficiency of over 95%
  • Working frequency range 20kHZ-500kHZ
  • High isolation strength
  • Lower profile and weight
  • High power density
  • Operating temperature -40℃to+125℃
  • Custom designs available
Series Application
EE Transformer applied in the switching power supply,main power transformer
EFD Transformer Auxiliary powr transformer,main power transformer,choke coils
EPC Transformer Auxiliary powr transformer,main power transformer
PQ Transformer applied in the linear filter,choke,pulse transformer,drive transformer



Materials list:

20kHZ High Frequency Transformer Flyback Ferrite Core Transformer 0






20kHZ High Frequency Transformer Flyback Ferrite Core Transformer 1



ABOUT US:

Shinhom Enterprise was founded in Xi'an China with nearly 20 years of experiencing of designing & manufacturing transformers & Coils components.
High quality, low cost and best service are what we pursuit most!
Meanwhile, the certification of ISO 9001 by SGS system was also earned.
Shinhom is to remain a specialist in designing and manufacturing high-performance transformers,power inductors, choke coils power supplies for purchasers around the world.
