Payment & Shipping Terms:
|Usage:||High Frequency||Application:||Power, Electronic, Instrument, Lighting, Rectifier, Audio, Charger, Lamp, Communication Equipment|
|Insulation:||UL Insulation System For Class B (130), F (155), H (180)||Product Name:||Flyback Transformer|
|Certification:||ISO9001-2000, UL, ISO9001, CCC, CE||Operating Temperature:||-25℃to+125℃|

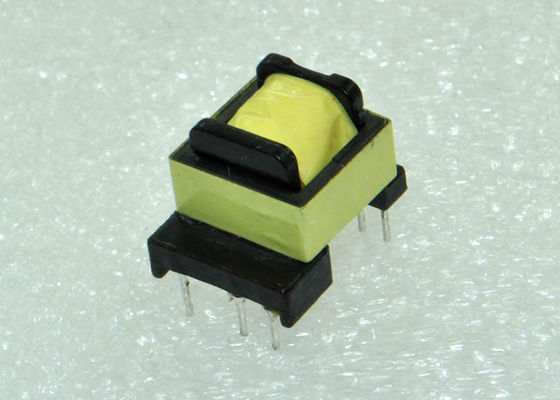

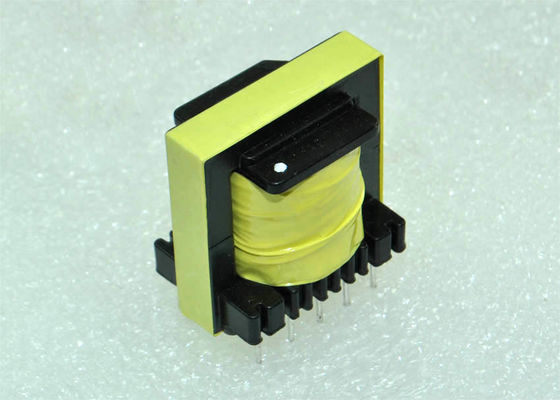

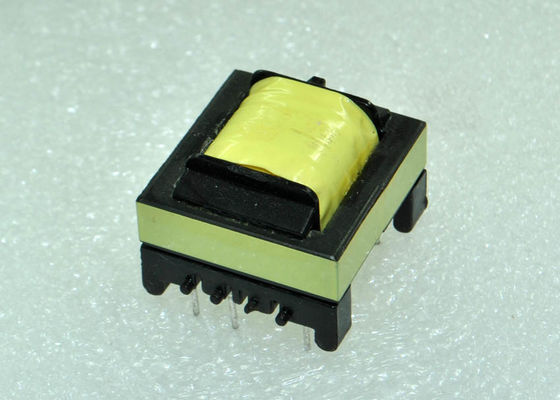

Ferrite Core Power Electrical Transformer,
Flyback Type Ferrite Core Transformer,
EMC Flyback Transformer
Custom-Made Flyback Transformer, Power Supply Transformer , High Frequency Transformer
Power transformer is an electrical appliance that transmits electric energy or signals from one circuit to another by using the principle of electromagnetic induction The amount of electrical energy delivered is determined by the power of the consumer. According to the cooling mode: dry type (self cooling) transformer, oil immersed (self cooling) transformer, fluoride (evaporative cooling) transformer. According to the dampproof way classification: open transformer, potted transformer, sealed transformer. According to the structure of iron core or coil: core transformer (insert core, C-type core, ferrite core), shell type transformer (insert core, C-type core, ferrite core), ring type transformer, metal foil transformer. According to the power supply phase number classification: single-phase transformer, three-phase transformer, multi-phase transformer.
|EE Transformer||applied in the switching power supply,main power transformer|
|EFD Transformer||Auxiliary powr transformer,main power transformer,choke coils|
|EPC Transformer||Auxiliary powr transformer,main power transformer|
|PQ Transformer||applied in the linear filter,choke,pulse transformer,drive transformer|
Shinhom Enterprise was founded in Xi'an China with nearly 20 years of experiencing of designing & manufacturing transformers & Coils components.
High quality, low cost and best service are what we pursuit most!
Meanwhile, the certification of ISO 9001 by SGS system was also earned.
Shinhom is to remain a specialist in designing and manufacturing high-performance transformers,power inductors, choke coils power supplies for purchasers around the world.
