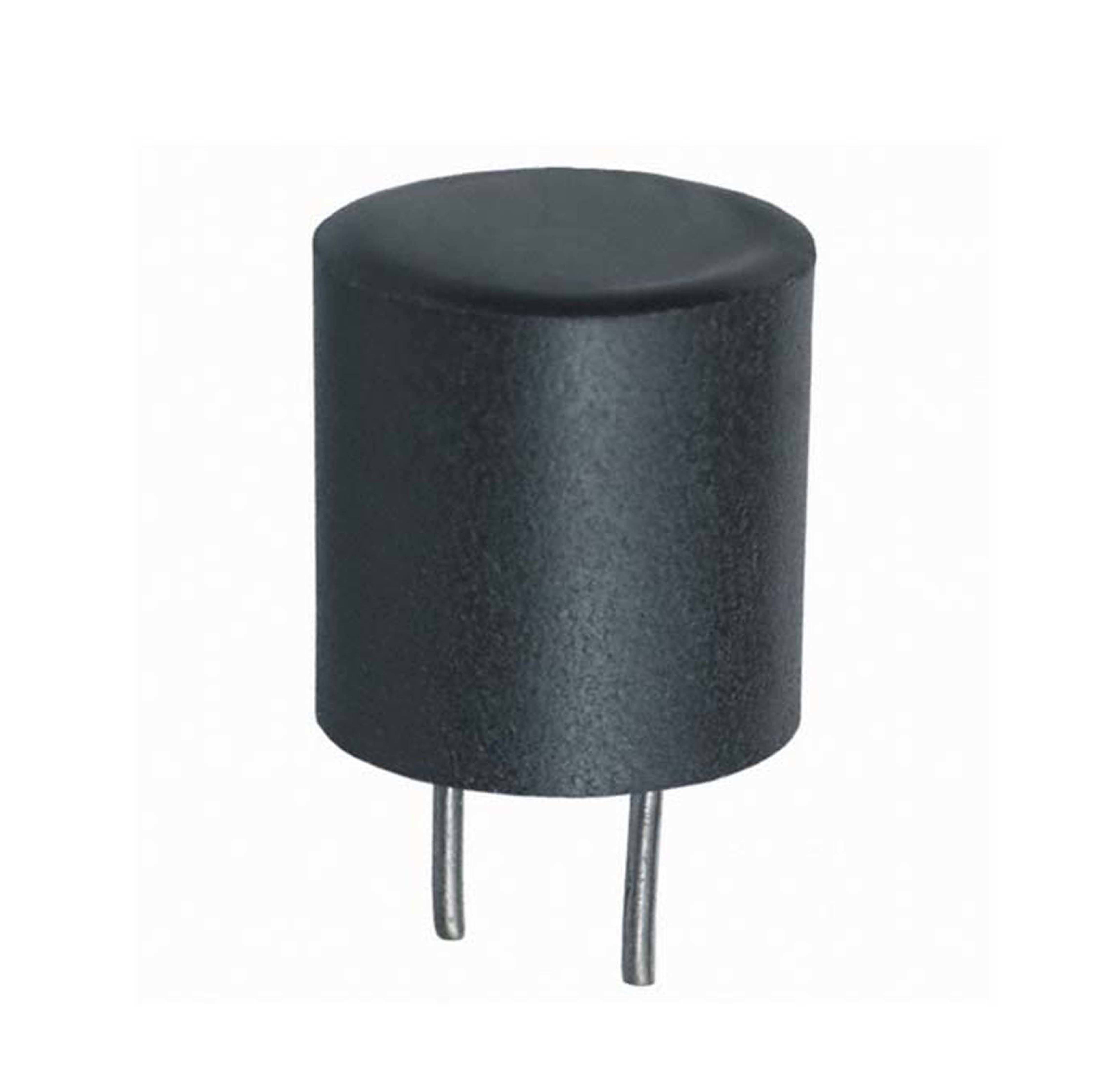

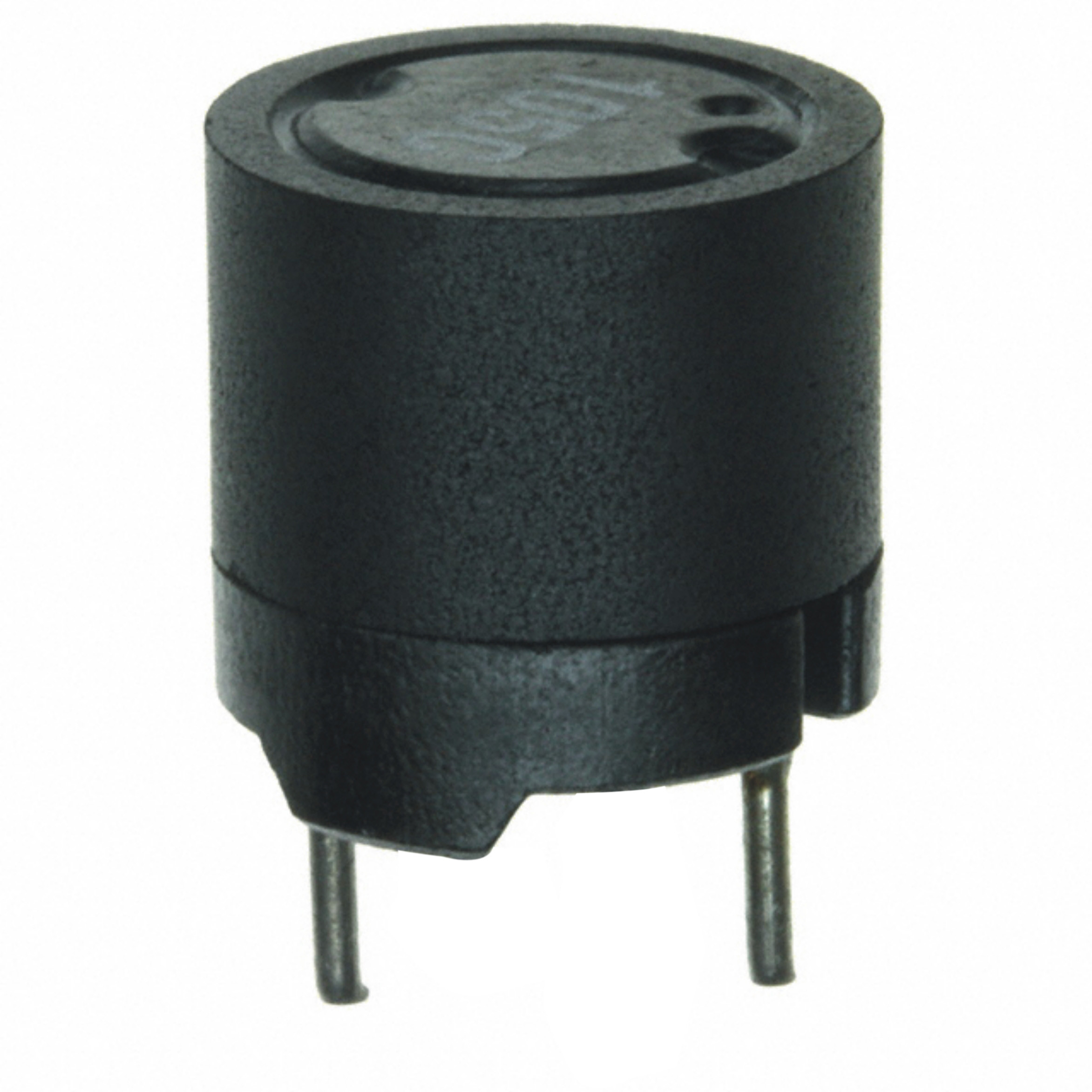

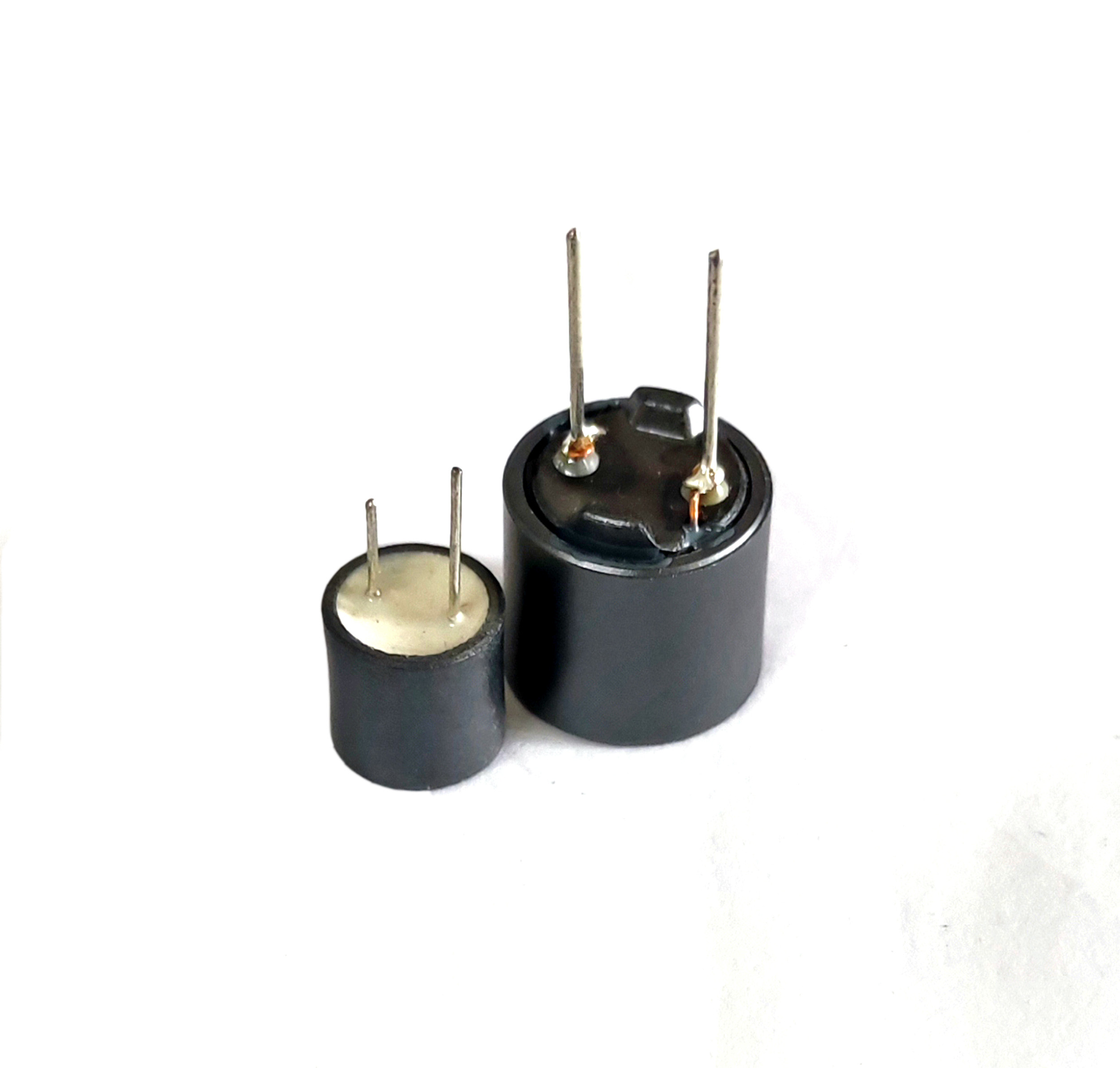

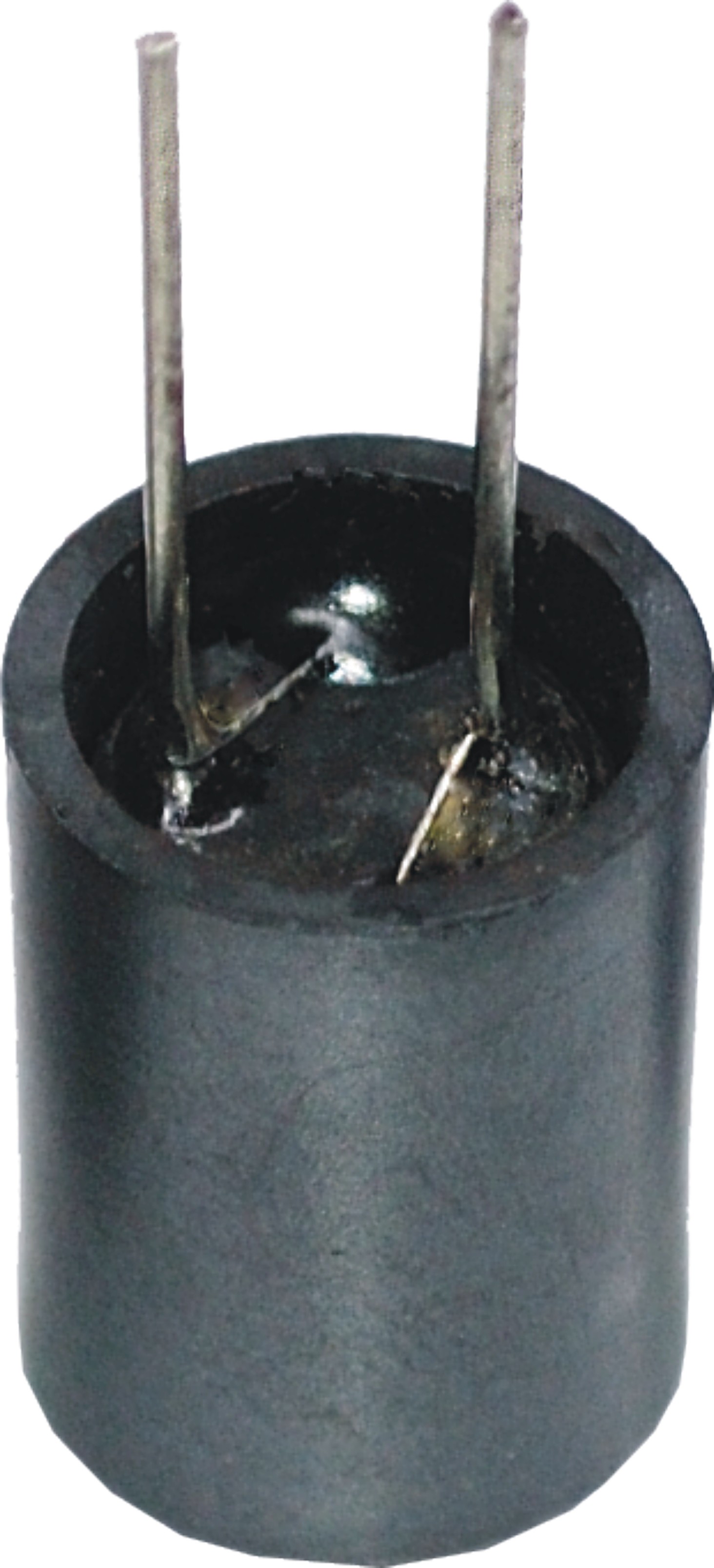

Through Hole Dip Power Inductor Ferrite Shielded Coil

Name: Through Hole Dip Power Inductor Ferrite Shielded Coil
Brand: Shinhom
SKU: LGB Series
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (109 reviews)

Large Image : Through Hole Dip Power Inductor Ferrite Shielded Coil Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	LGB Series

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Type:	Shielded Power Inductor	Inductance:	22uH To 10mH
Tolerance:	K=±10%,M=±20%,N=±30%	Operating Temperature:	-40℃ To +105℃
Size:	0606/0708	Customized:	Customized
High Light:	Through Hole Power Supply Inductor , Shielded Power Inductors Coil , Dip Through Hole Inductor

LGB Series Through hole DIP inductor,Leaded Power Inductor,Ferrite Core dip inductor with ferrite case

There is a magnetic shield on the outside of the shielded inductor, which has good anti-EMI effect, reduces the electromagnetic interference of the inductor to the outside world, and weakens the interference effect of the electromagnetic field generated by the circuit on other components

Magnetically shielded construction power inductor
Heat-resistant molded resin power inductor
Shielded power inductor with low DCR and large current
Shielded power inductor used in:

VCRs, AC/DC DC/DC converters
Video cameras
Communication systems
Automotive systems
Liquid crystal televisions
Power suppliers
Network systems
Computer peripheral equipment

Chatacteristics:

Rated DC Current(I sat): The current when the inductance becomes 30% typical its initial value(Ta=25 ℃ )
Temperature Rise Current(I rms): The actual current when the temperature of coil becomes T40 ℃.. (Ta=25 ℃ )
Operating temperature range: -40 ~ 125 ℃

Through Hole Dip Power Inductor Ferrite Shielded Coil 0
