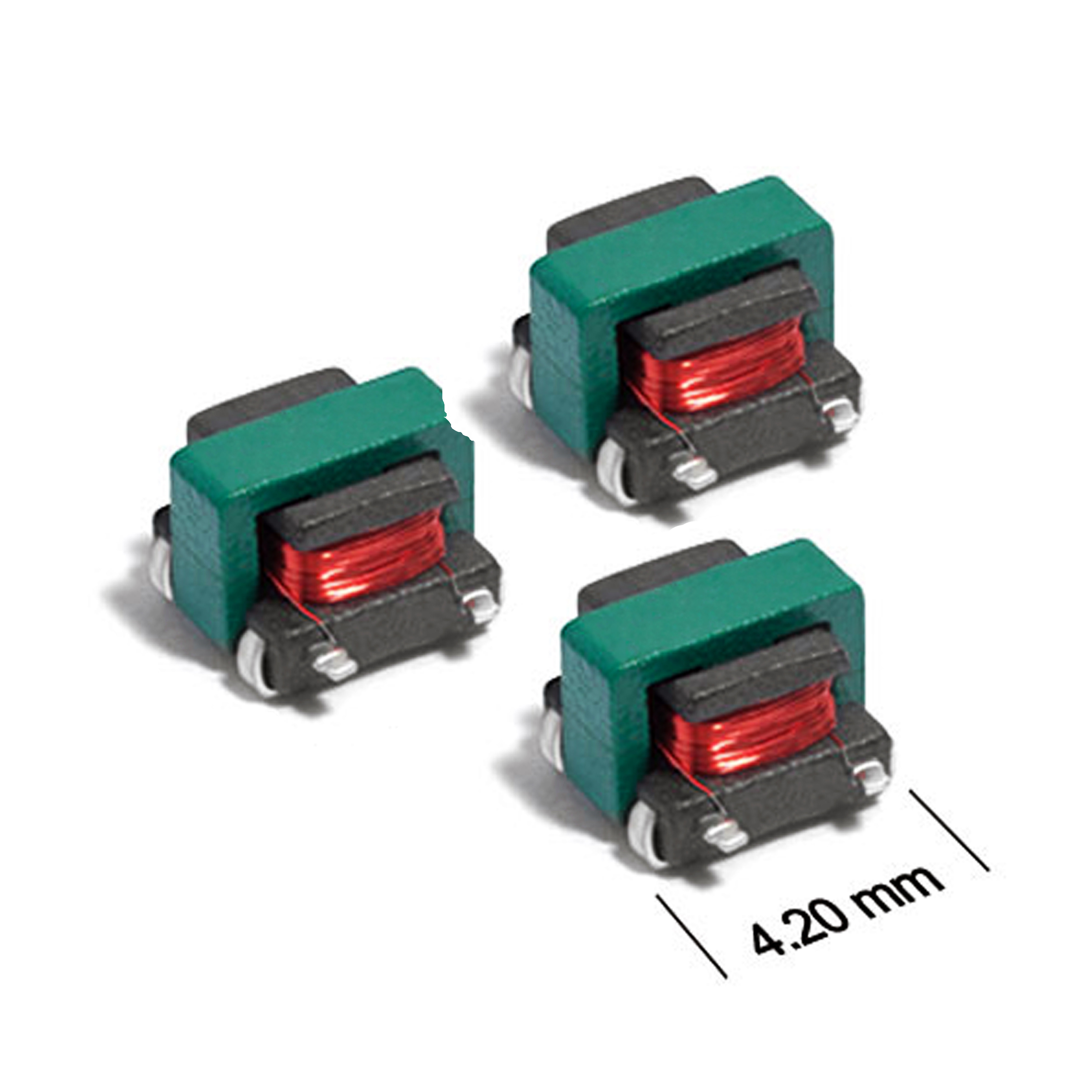

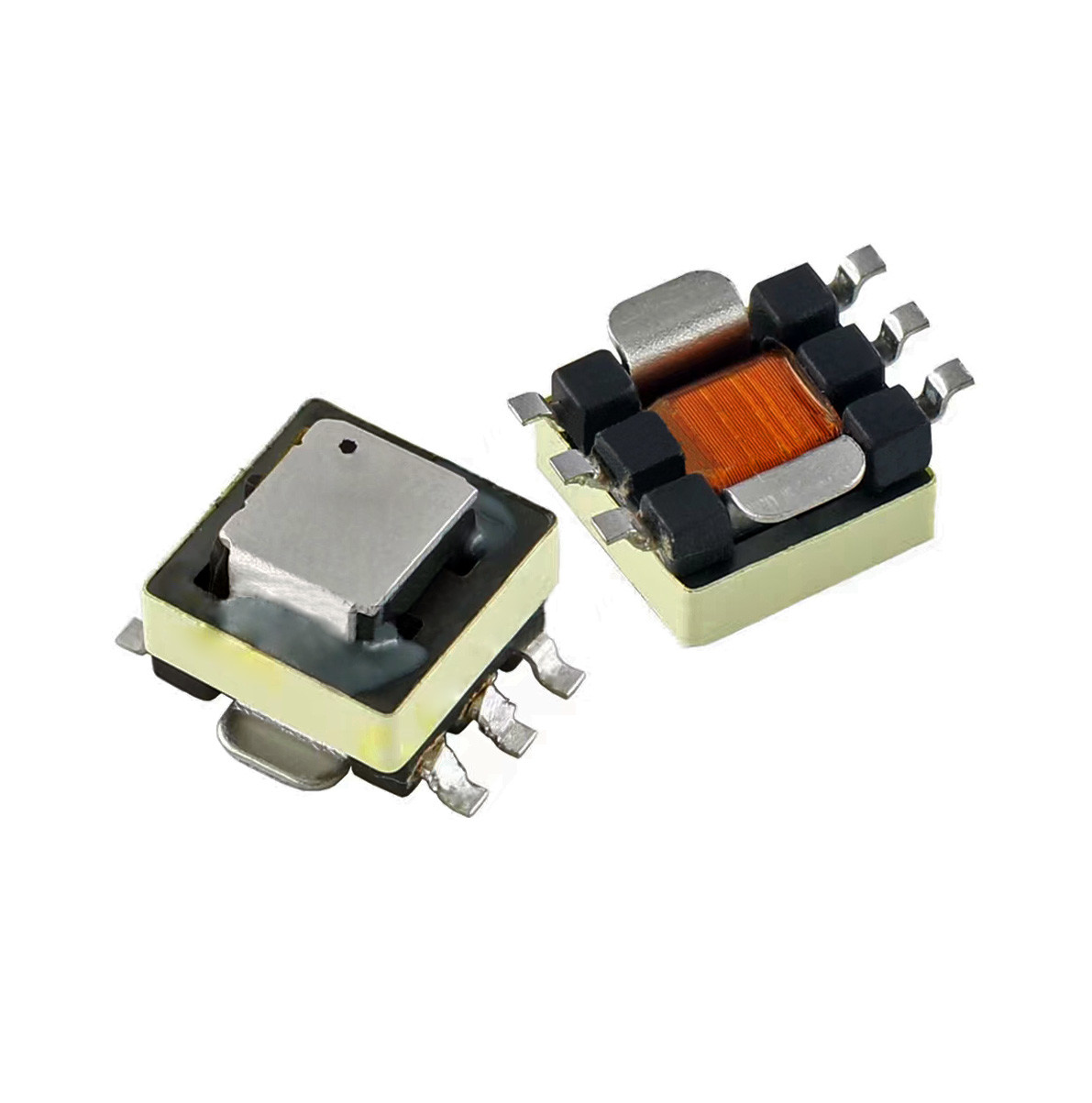

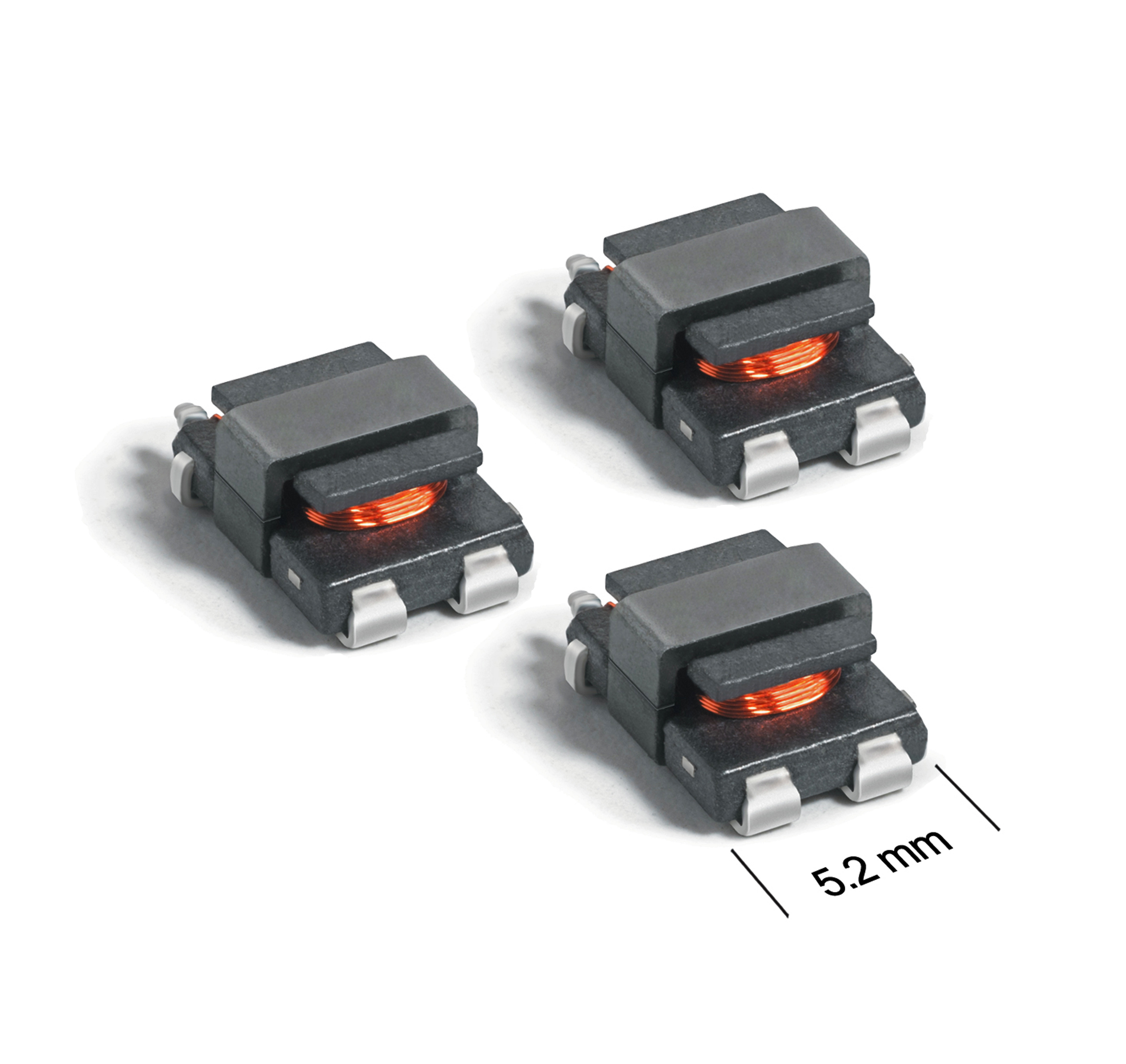

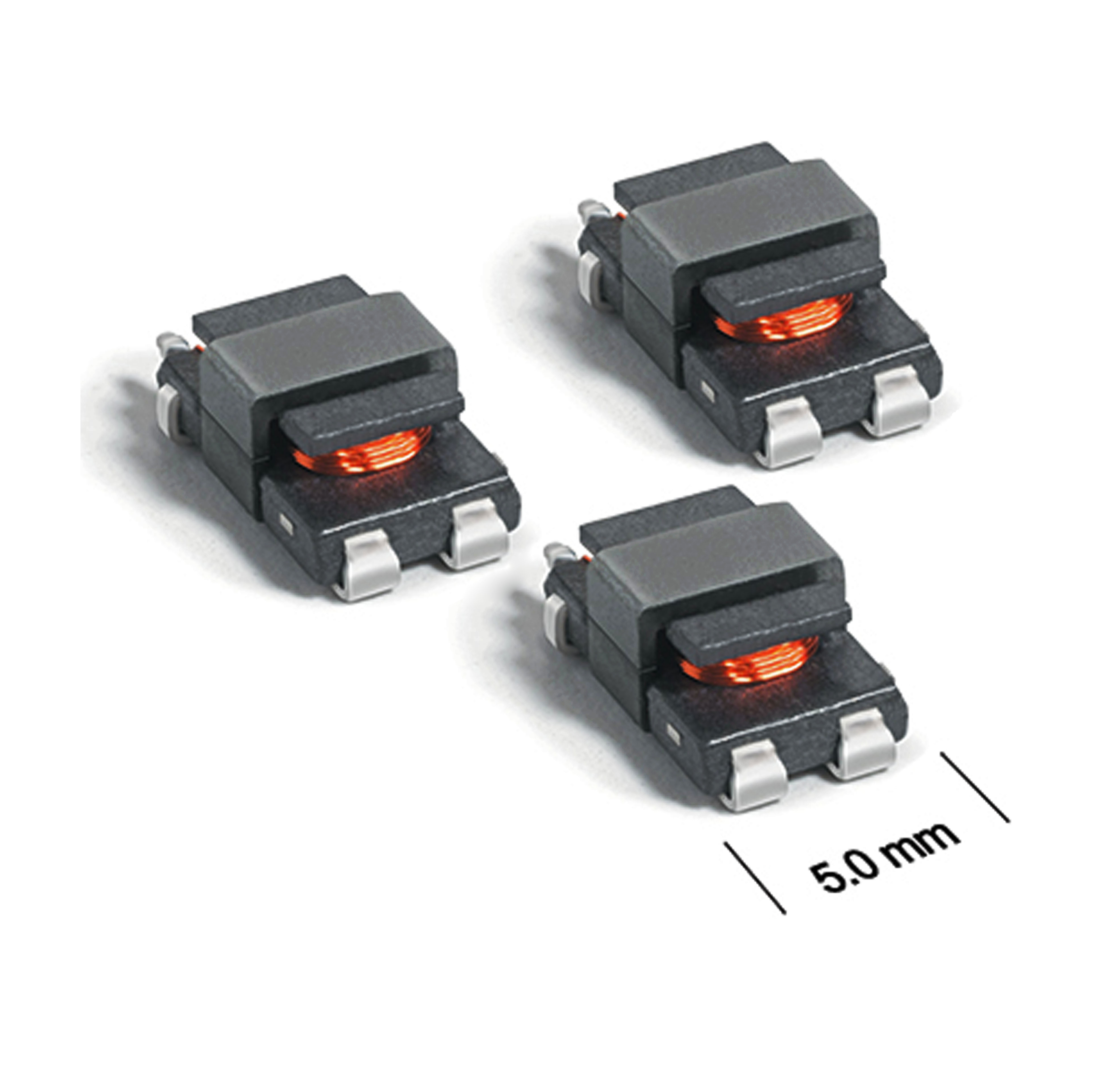

EE4.6 SMD Current Sensing Transformers Ferrite High Frequency

EE4.6 SMD Current Sensing Transformers Ferrite High Frequency
EE4.6 SMD Current Sensing Transformers Ferrite High Frequency EE4.6 SMD Current Sensing Transformers Ferrite High Frequency EE4.6 SMD Current Sensing Transformers Ferrite High Frequency EE4.6 SMD Current Sensing Transformers Ferrite High Frequency

Large Image :  EE4.6 SMD Current Sensing Transformers Ferrite High Frequency Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ACSTE4.6 Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Turns: 20 To 150Ts Installation: SMD
Insulation Voltage: 1500Vac Frequency Range: Up To 1MHz
Sensed Current: Up To 20A Operating Temperature: -40℃ To 125℃
High Light:

EE4.6 SMD Current Sensing Transformers

,

Current Sensing Transformers for SMPS

,

ferrite Current Sensing Transformers

EE4.6 SMD High frequency Current Sensing Transformers , SMD Current transformers



Feature:

  • Turns Ratio: 1:20  1:30 1:50,1:70,1:100,1:150 available
  • Sensed current up to 20 Amps
  • Designed for use up to 1 MHz and above
  • Very low primary resistance
  • High frequency current transformers for SMPS appllications
  • High-permeability ferrite current transformers
  • Low-profile current transformers
  • PCB mount current transformers
  • Reliable linear performance transformers



Applications:

  • Continuous AC current monitoring in switched-mode power supply
  • Overload and short-circuit protection
  • Current measurement in traction motor and battery management systems in conventional and xEV (EV, HEV, FCEV) vehicles.
  • Can also be used in 48 V vehicle electrical systems.


Notes:

  • Inductance measured between secondary pins at 100 kHz, 0.1 Vrms, 0 Adc.
  • Primary current of 20 A causes less than 25°C temperature rise from 25°C ambient.Higher current causes a greater temperature rise (see Temperature Rise vs Current curve).
  • Terminating resistance (RT) value is based on 1 Volt output with 20 Amps flowing through the primary. Varying terminating resistance increases or decreases output Voltage/Ampere according to the following equation: RT (Ohms) = Vout × Nsec / Iin.
  • 500 Vrms, 1 minute isolation (hipot) winding to winding.
  • Many differennt kinds of structure and style for your selection.
  • Custom-made are welcome.

EE4.6 SMD Current Sensing Transformers Ferrite High Frequency 0

EE4.6 SMD Current Sensing Transformers Ferrite High Frequency 1





Notes: Product specifications can be customized
