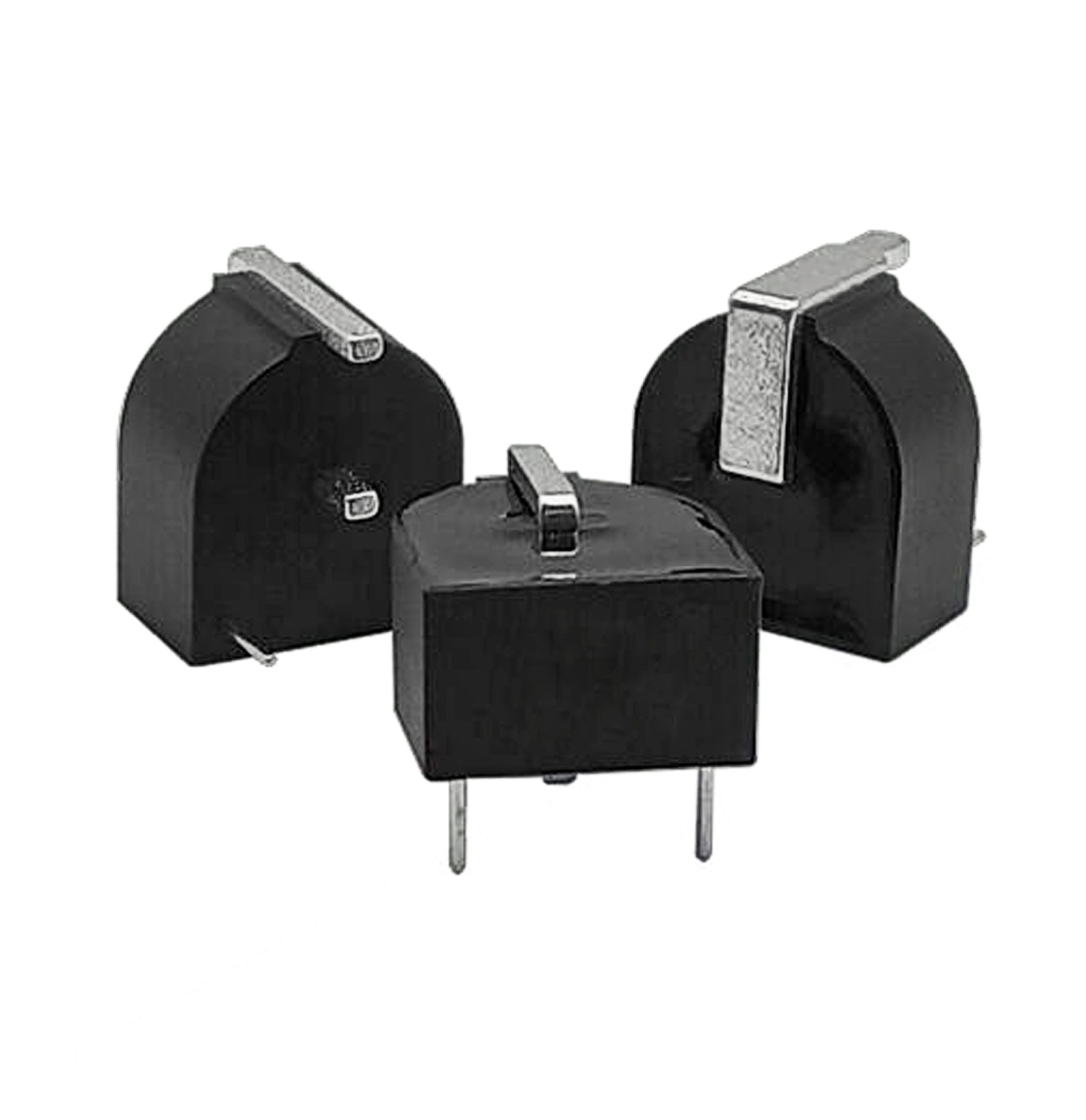

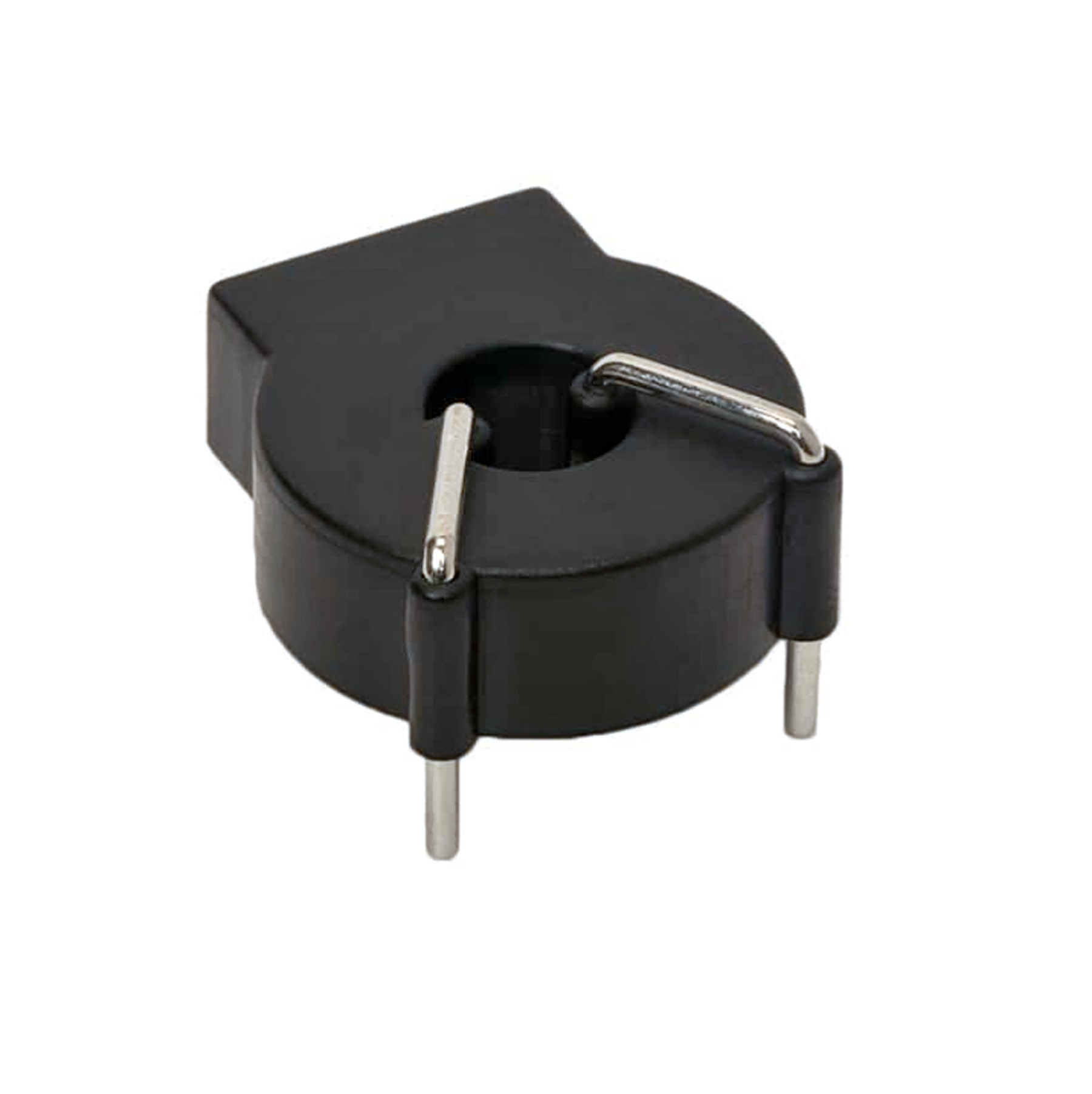

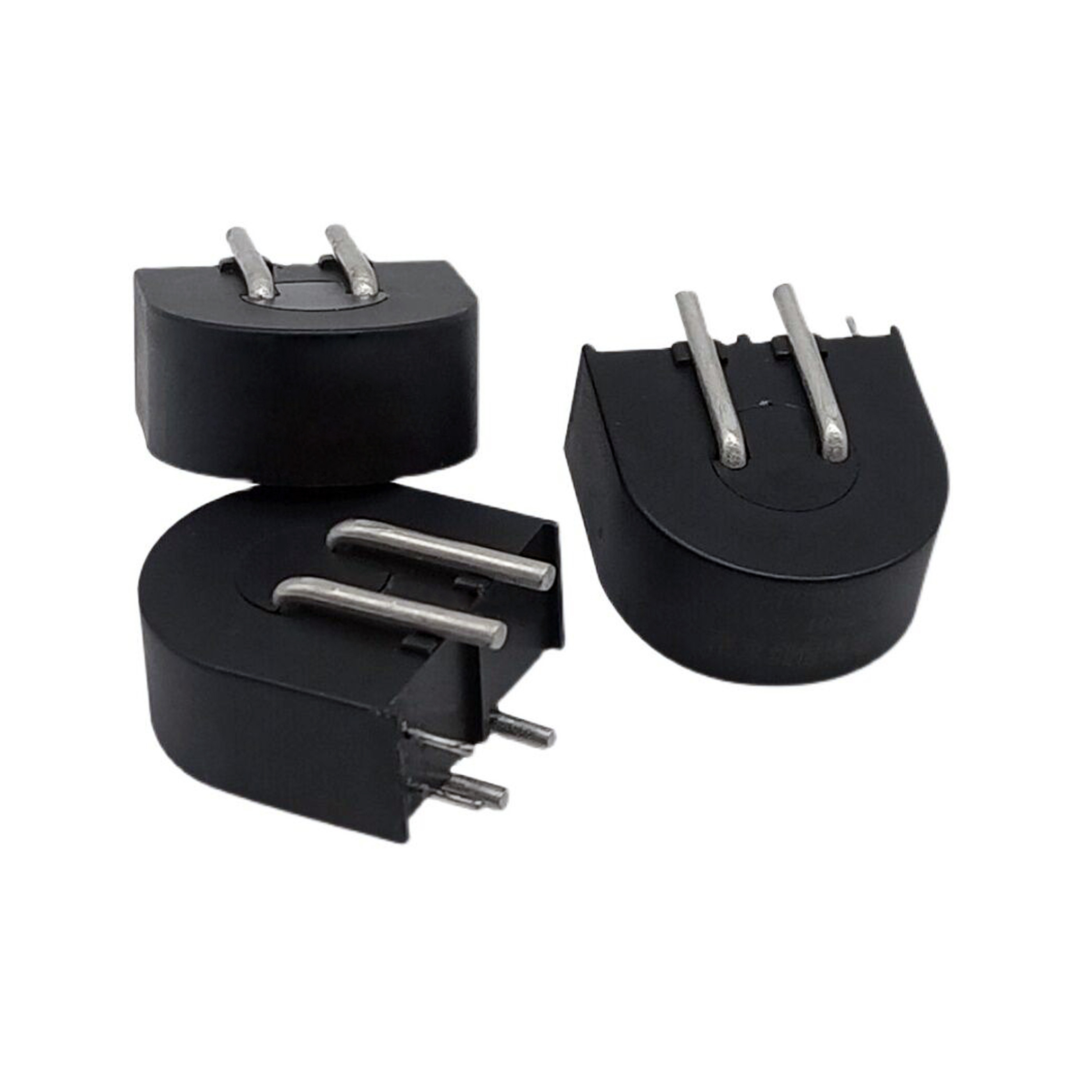

Low Frequency Current Sense Transformer High Accuracy​ PCB Mounting

Low Frequency Current Sense Transformer High Accuracy​ PCB Mounting
Low Frequency Current Sense Transformer High Accuracy​ PCB Mounting Low Frequency Current Sense Transformer High Accuracy​ PCB Mounting Low Frequency Current Sense Transformer High Accuracy​ PCB Mounting

Large Image :  Low Frequency Current Sense Transformer High Accuracy​ PCB Mounting Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: CT Series
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Turns: 500 , 1000 , 2000 Frequency Range: 20Hz~400Hz
Specification: ROHS, CE, SGS Accuracy Class: 0.1, 0.2 ,0.5
Certification: ISO9001:2015, ROHS Type: PCB Mounting
High Light:

400Hz Current Sense Transformer

,

High Accuracy​ PCB Current Sense Transformer

Share To High Accuracy​ PCB Mounting Low Frequency Current Transformer



Current transformers comprises various versions for a large number of applications. Strong insulation voltage between the primary and the secondary, up to 4kV/1min, without breakdown.
The insulation resistance should be bigger than 1000MΩ between the primary and secondary windings.
Best-performance core designs in close cooperation with our customers.
Technical support including simulation software to optimize the circuit topology.


FEATURES:
• AC measurement capacity is 20% higher than rated current
• Negligible small amplitude error
• Extreme linear, easily compensable phase curve
• Low temperature dependence
• It accords with IEC 60044-1 0.1class, 0.2class, 0.5class
• RoHS Compliance is available on request


TECHNICAL INFORMATION:
. Working Frequency range 20Hz~400Hz
. Insulation resistance: 500V DC >100MΩ
. Hi-Pot : 4000V 1mA 60S
. Temperature range: -25℃ to +85℃
. Storage Temperature: -40℃℃ to +105℃℃
. Resistance to soldering heat:260℃ for 10 seconds
. Marking: Part number and date code



Notes: Product specifications can be customized
