Product Details:
Payment & Shipping Terms:
|
| Turns Ratio: | 1:50 1:100,1:150,1:200,1:300,1:500,1:1000 | Max. Input: | 25A |
|---|---|---|---|
| Encapsulation: | Epoxy | Installation: | PCB Mounting |
| Insulation Voltage: | 4000V,1mA,60S | Temperature Range: | -40℃ To +125℃ |
| High Light: | Epoxy Current Sense Transformer,1:200 Current Sense Transformer,Encapsulated Current Sense Transformer |
||

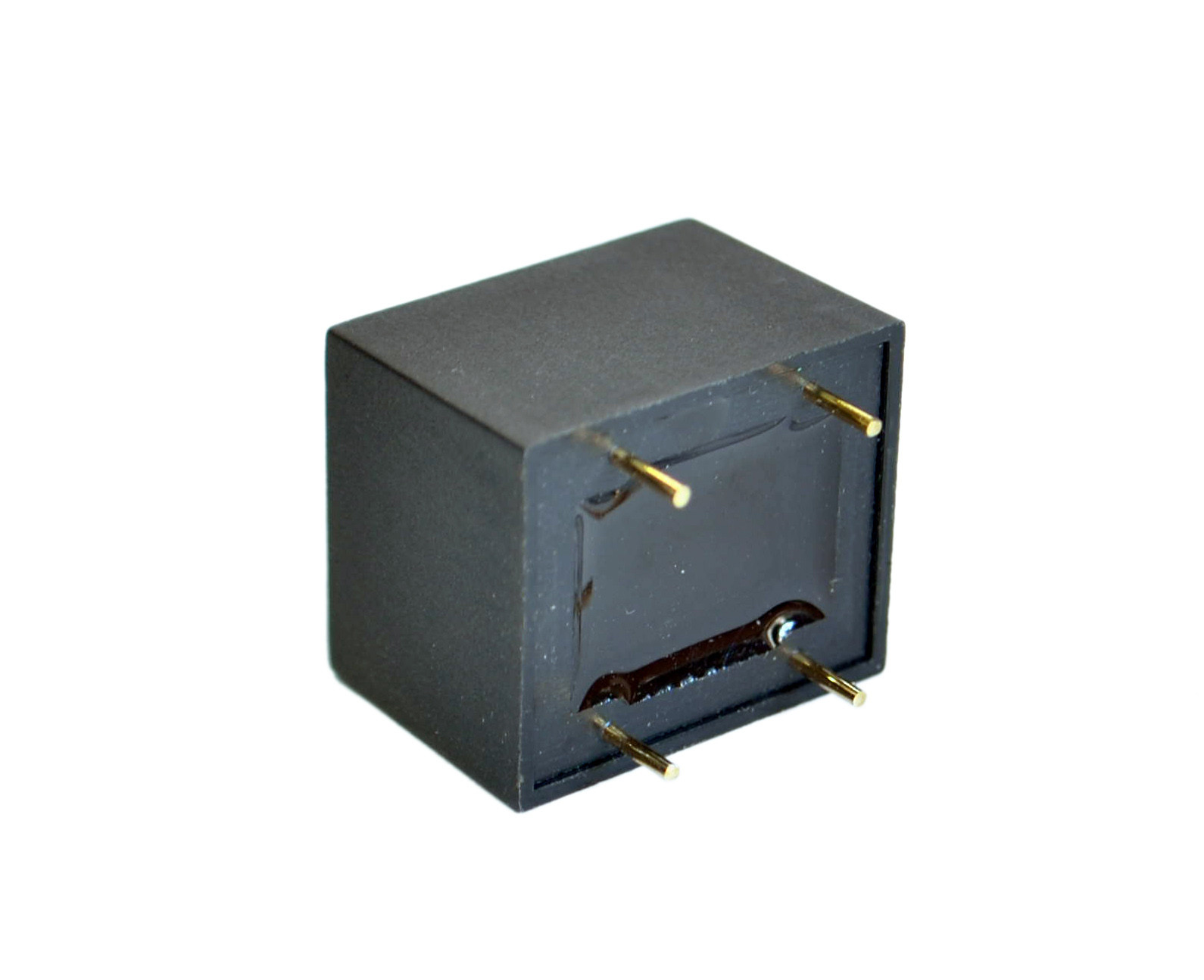

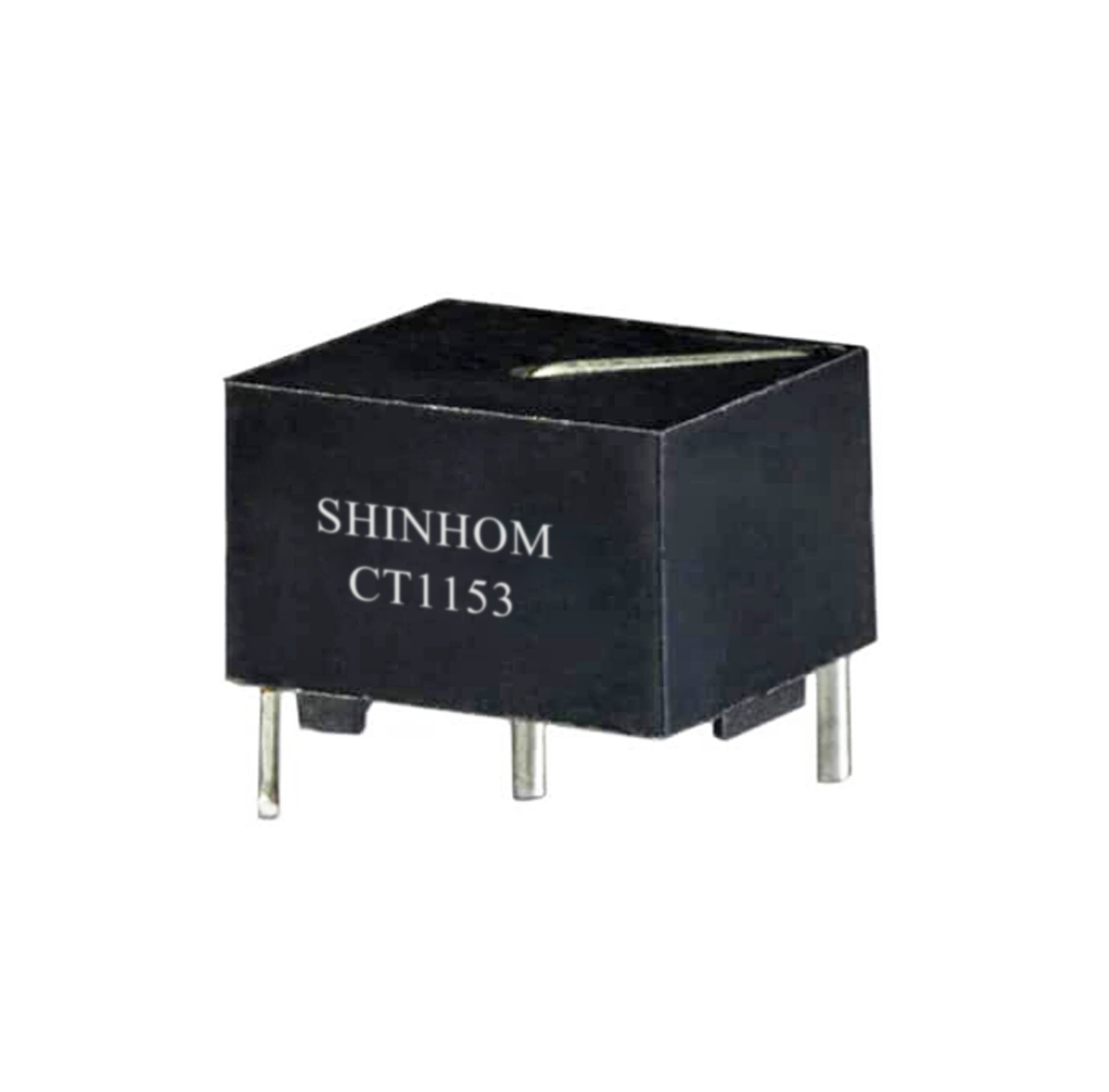

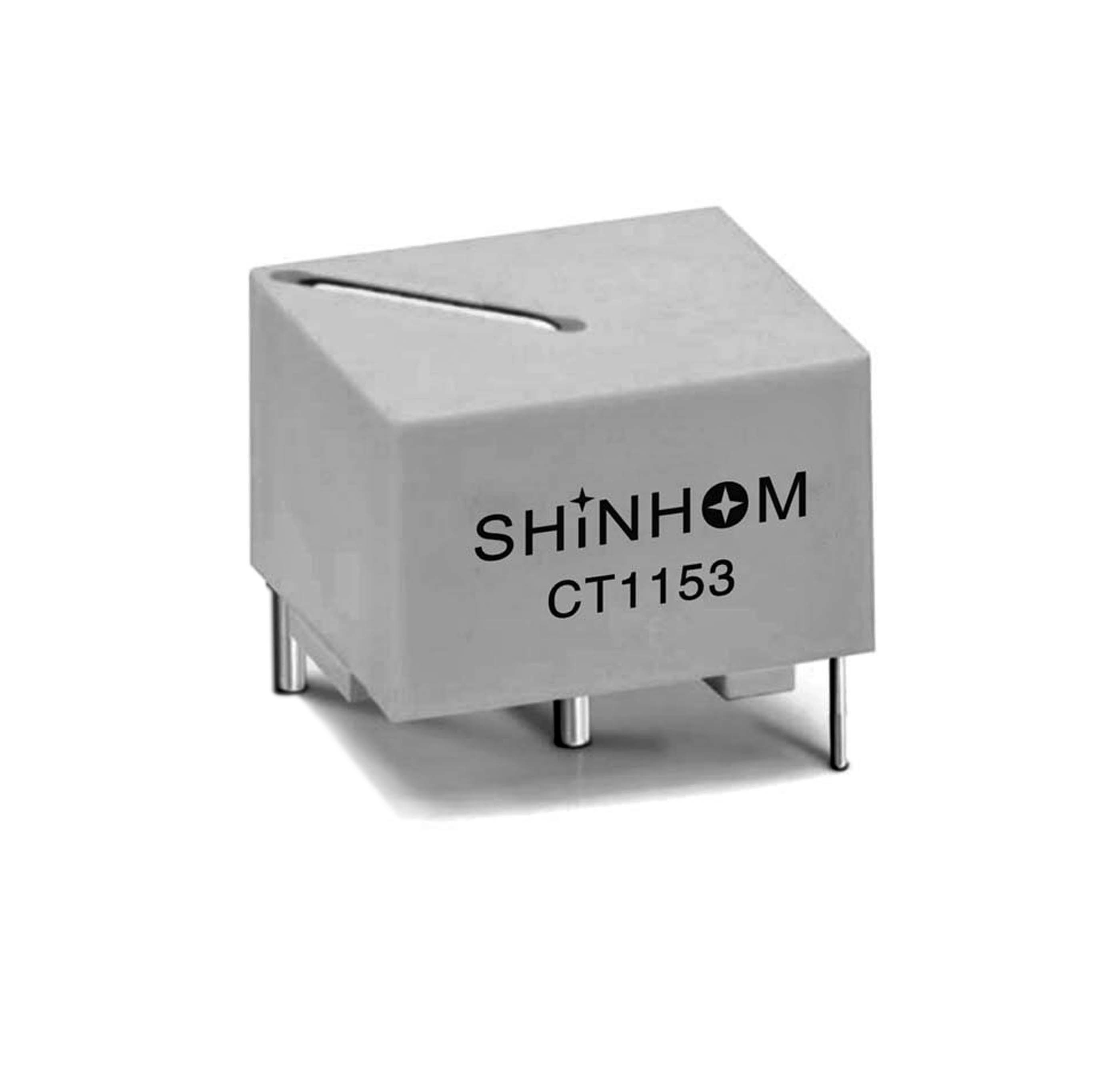

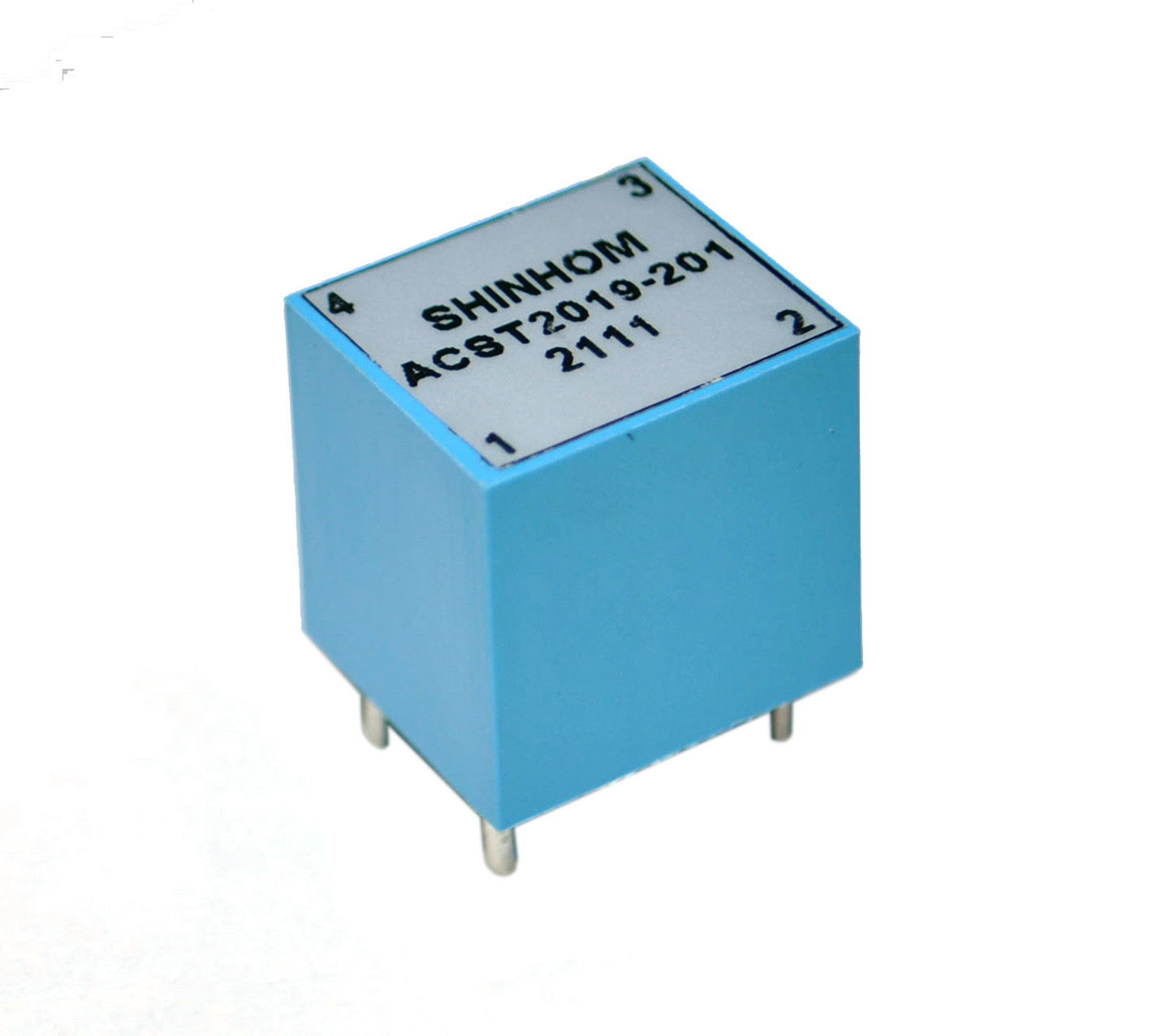

CT11 Series PCB Mounting 1:200 Current Sense Transformer, Encapsulated PCB Current
FEATURES:
* High frequency current transformers for SMPS appllications
* High-permeability ferrite current transformers
* Low-profile current transformers
* PCB mount current transformers
* Reliable linear performance transformers
* Turns Ratio: 1:50 1:100,1:150,1:200,1:300,1:500,1:1000 available
* Many differennt kinds of structure and style for your selection.
* Custom-made are welcome.
* Current sense transformers provide output feedback to the pulse control circuitry allowing low-cost regulation of switch-mode power supplies
* 25A Rated primary current(40A Max)
* Insulation resistance: 500V DC >100MΩ
* Hi-Pot : 4000V 1mA 60S
|
Frequency Range
|
50kHz ~ 500kHz
|
|
Type
|
Invasive
|
|
Current Rating (Amps)
|
125 mA
|
|
Inductance
|
76 mH
|
|
ET (Volt-Time)
|
700VµS
|
|
Turns Ratio - Primary:Secondary
|
1:200
|
|
DC Resistance (DCR)
|
4.5Ohm
|
Notes: Product specifications can be customized
