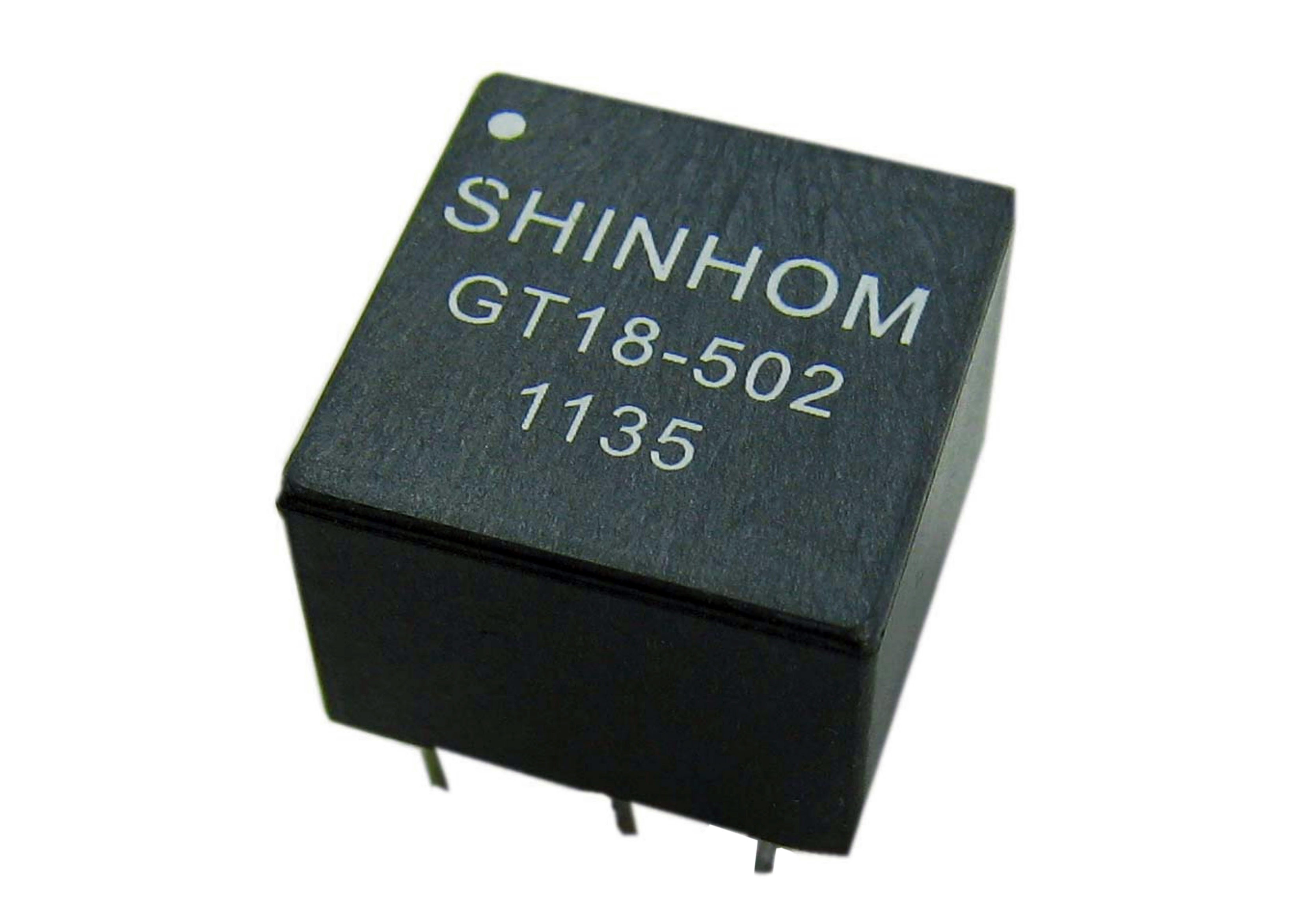

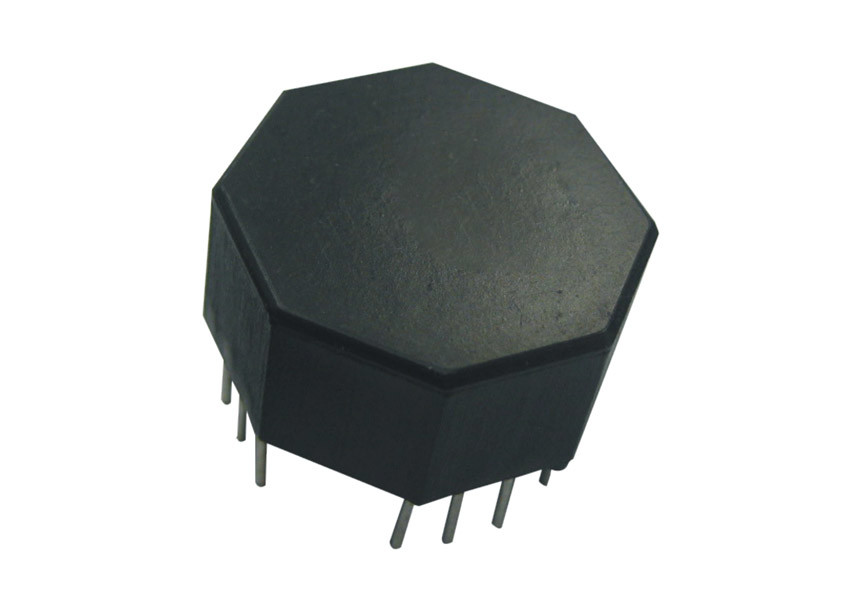

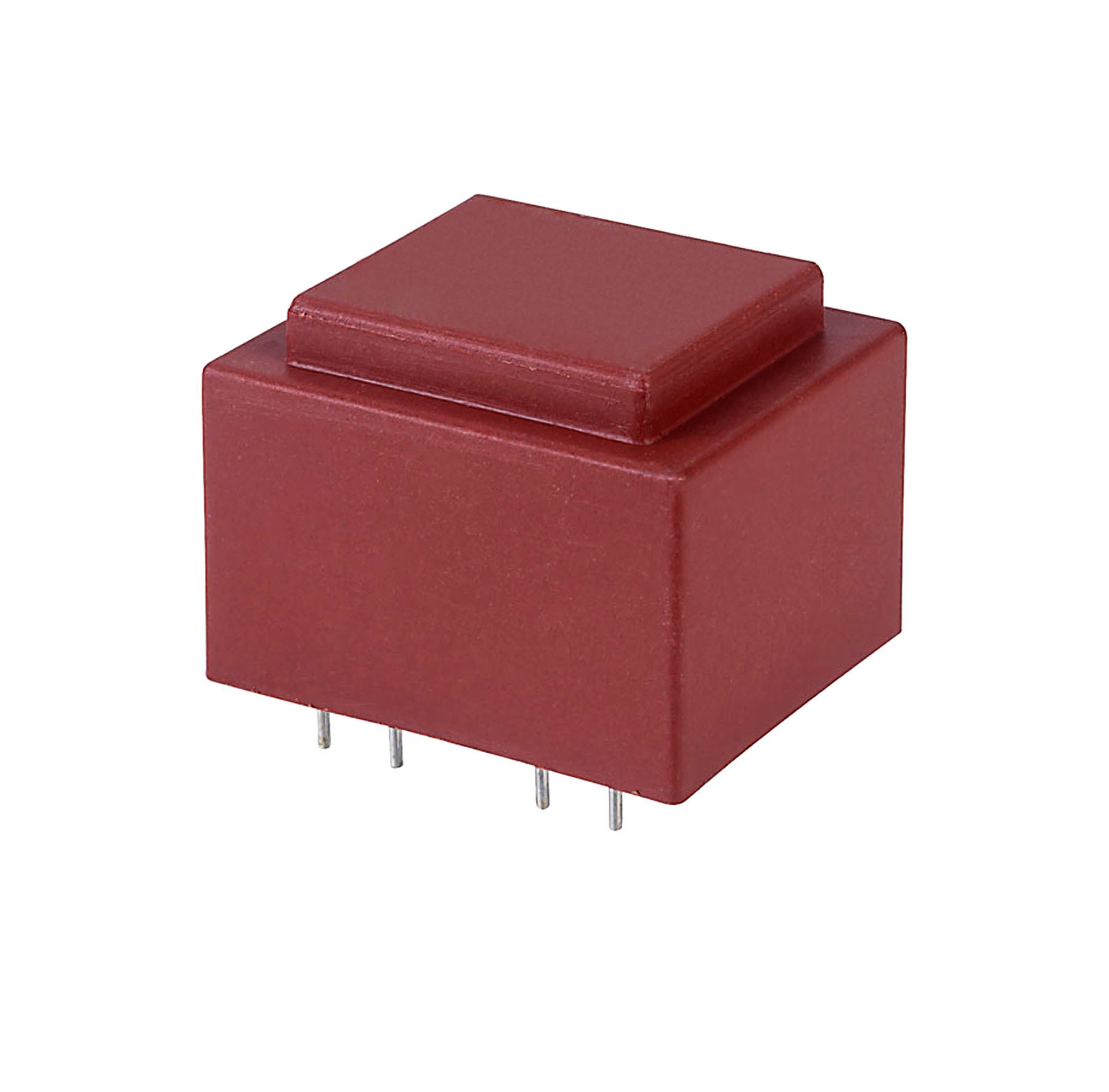

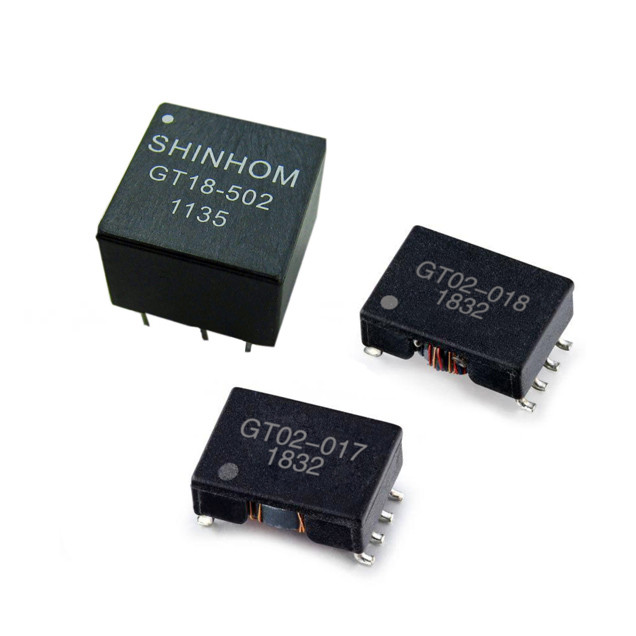

Pulse / Gate Drive High Frequency Transformer For IGBT

Pulse / Gate Drive High Frequency Transformer For IGBT
Pulse / Gate Drive High Frequency Transformer For IGBT Pulse / Gate Drive High Frequency Transformer For IGBT Pulse / Gate Drive High Frequency Transformer For IGBT Pulse / Gate Drive High Frequency Transformer For IGBT

Large Image :  Pulse / Gate Drive High Frequency Transformer For IGBT Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: GT30 series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Name: Gate Drive Transformer Product Name: Pulse Transformer
Core: Silicon Plate Or Ferrite Certification: RoHS/SGS/ISO16949
Operating Temperature: -25 ℃to +105℃ Hi-pot: 2.5KV
High Light:

IGBT Gate Drive Transformer

,

Pulse High Frequency Transformer

,

2.5KV Pulse Transformer

Pulse Transformer , Gate drive transformer for IGBT



FEATURES:

  • EI type high quality silicon plate or ferrite
  • Work frequency is: 50-1000KHz
  • Mounting height is: 28mm
  • Dielectric strength is 3000V.



Applications:

  • applicable to single or double spike pulse thyristors trigger
  • transformer of 300A and below



  GT30-011 GT30-021 GT30-031 GT30-111 GT30-211 GT30-311
Turns ratio 1:1 2:1 3:1 1:1:1 2:1:1 3:1:1
Dielectric strength,AC/1 min 3KV 3KV 3KV 2.5KV 2.5KV 2.5KV
The highest workvoltage in major loop 380V 380V 380V 380V 380V 380V
Triggering mode(recommended) single or doublespike pulse single or doublespike pulse single or doublespike pulse single or doublespike pulse single or doublespike pulse single or doublespike pulse
Transmissionpulse width 1mS 1mS 1mS 1mS 1mS 1mS
Rise fime offront edge ≤10us ≤10us ≤10us ≤10us ≤10us ≤10us
Input pulseamplitude 8V 15V 24V 8V 15V 24V
Output pulseamplitude RL=20Ω ≥6V ≥6V ≥6V ≥5.5V ≥5.5V ≥5.5V
Volt microsecondintegral(∫udt) 8000μVS 15000μVS 24000μVS 8000μVS 15000μVS 24000μVS
