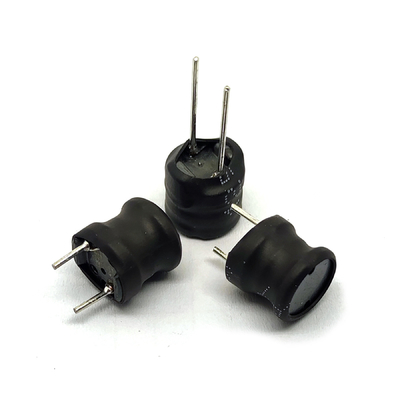

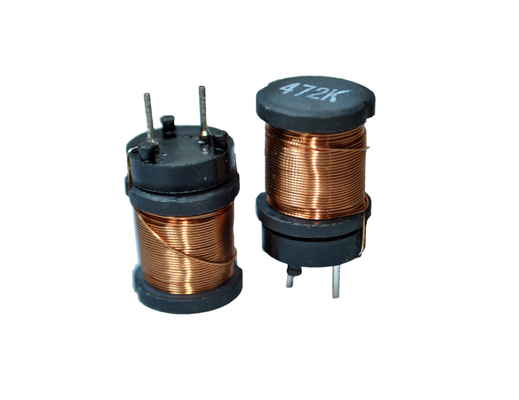

Ferrite Core Leaded Power Inductor With High Current 68uH - 1800uH Inductance Range

I'm Online Chat Now
Certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
Very professional and good communication during the cooperation .Product is excellent quality and packaged very well. We will continue to order from shinhom again. Very honest, trustworthy and efficient company to deal with.

—— Alexander

Good products ,good communication ,delivery is on time ,Samples available .

—— Kevin

Ferrite Core Leaded Power Inductor With High Current 68uH - 1800uH Inductance Range

Ferrite Core Leaded Power Inductor With High Current 68uH - 1800uH Inductance Range
Ferrite Core Leaded Power Inductor With High Current 68uH - 1800uH Inductance Range Ferrite Core Leaded Power Inductor With High Current 68uH - 1800uH Inductance Range Ferrite Core Leaded Power Inductor With High Current 68uH - 1800uH Inductance Range

Large Image :  Ferrite Core Leaded Power Inductor With High Current 68uH - 1800uH Inductance Range Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LCH Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Type: Vertical Power Inductor Inductance: 68uH To 1800uH
Tolerance: K=±10% Rated Current: 2.4A Max
Operating Temperature: -40℃ To +125℃ Storage Temperature: -40℃ To +80℃
High Light:

68uH Leaded Power Inductor

,

Ferrite Core Leaded Power Inductor

,

Vertical Leaded Dip Power Inductor

Leaded Power Inductor With High Current, 68uH To 1800uH Inductance Range And Ferrite Core



FEATURES:

  • Axial and radial leaded power inductor
  • UL-polyolefin shrinking tubing
  • Leaded inductor with ferrite core
  • High-current,High-reliability
  • Low-resistance,AC line filters
  • Radial choke inductors
  • Shielded radial choke
  • Wide band chokes
  • Axial lead fixed inductors
  • Available in small, medium and large quantities



APPLICATIONS:

  • Signal filtering,EMI and power supply filter
  • DC/DC converters/switching power supplies for small and medium voltage
  • Power supply for LED



NOTES:

  • Inductance tested at 100 kHz, 0.1Vrms, 0 Adc on an Agilent/HP 4284A LCR-meter or equivalent.
  • SRF measured using Agilent/HP 4191A or equivalent.
  • DC current at 25℃ that causes the specified inductance drop from its value without current.
  • Current that causes the specified temperature rise from 25℃ ambient. This information is for reference only and does not represent absolute maximum ratings.
  • Ambient temperature -40℃ to +85℃ with (40℃ rise) Irms current.
  • Maximum part temperature +125°C (ambient + temp rise).
  • Storage temperature Component: -40℃ to +125℃.
  • Tray or tape packaging: -40℃ to +80℃
  • Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30℃ / 85% relative humidity)

Ferrite Core Leaded Power Inductor With High Current 68uH - 1800uH Inductance Range 0



Note: Product specifications can be customized.
