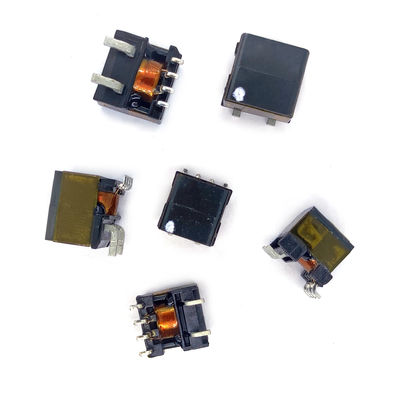

EP7 / EP11 SMT Current Sense Transformer, Ferrite Core Current Transformers

EP7 / EP11 SMT Current Sense Transformer, Ferrite Core Current Transformers
EP7 / EP11 SMT Current Sense Transformer, Ferrite Core Current Transformers EP7 / EP11 SMT Current Sense Transformer, Ferrite Core Current Transformers EP7 / EP11 SMT Current Sense Transformer, Ferrite Core Current Transformers

Large Image :  EP7 / EP11 SMT Current Sense Transformer, Ferrite Core Current Transformers Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ACSTEP Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Turns: 50 To 180Ts Installation: SMT
Operating Temperature: -40℃ To 125℃ Core Material: Ferrite
Product Name: Current Sense Transformer Package Type: Taping Package
High Light:

SMT Current Sense Transformer

,

EP11 Current Sense Transformer

,

Ferrite Core Current Transformers

EP7/EP11 SMT Current Sense Transformer , Current Transformers



Feature:

  • Very low DC resistance
  • Different turns ratios
  • Small SMD package
  • RoHS compatible
  • Qualified to AEC-Q200
  • Insulation distances in compliance with IEC61558-2-16



APPLCATIONS:

  • Switch-mode power supplies
  • Feedback control
  • Overload sensing
  • Load drop/shut-down detection
  • Switching current detection in on-board DC/DC converter and chargers



NOTES:

  • Typical frequency range: 50~400KHz
  • Inductance test frequency: 20KHz,0.01V
  • High voltage test: 2500VAC,50Hz,1s (Pri to Sec, Core)
  • The primary current of 30A causes approx +40℃ temperature rise
  • Couple capacitance measured at 10kHz, 1V, +25℃
  • Operating temperature range -40℃ to +150℃





Notes: Product specifications can be customized
